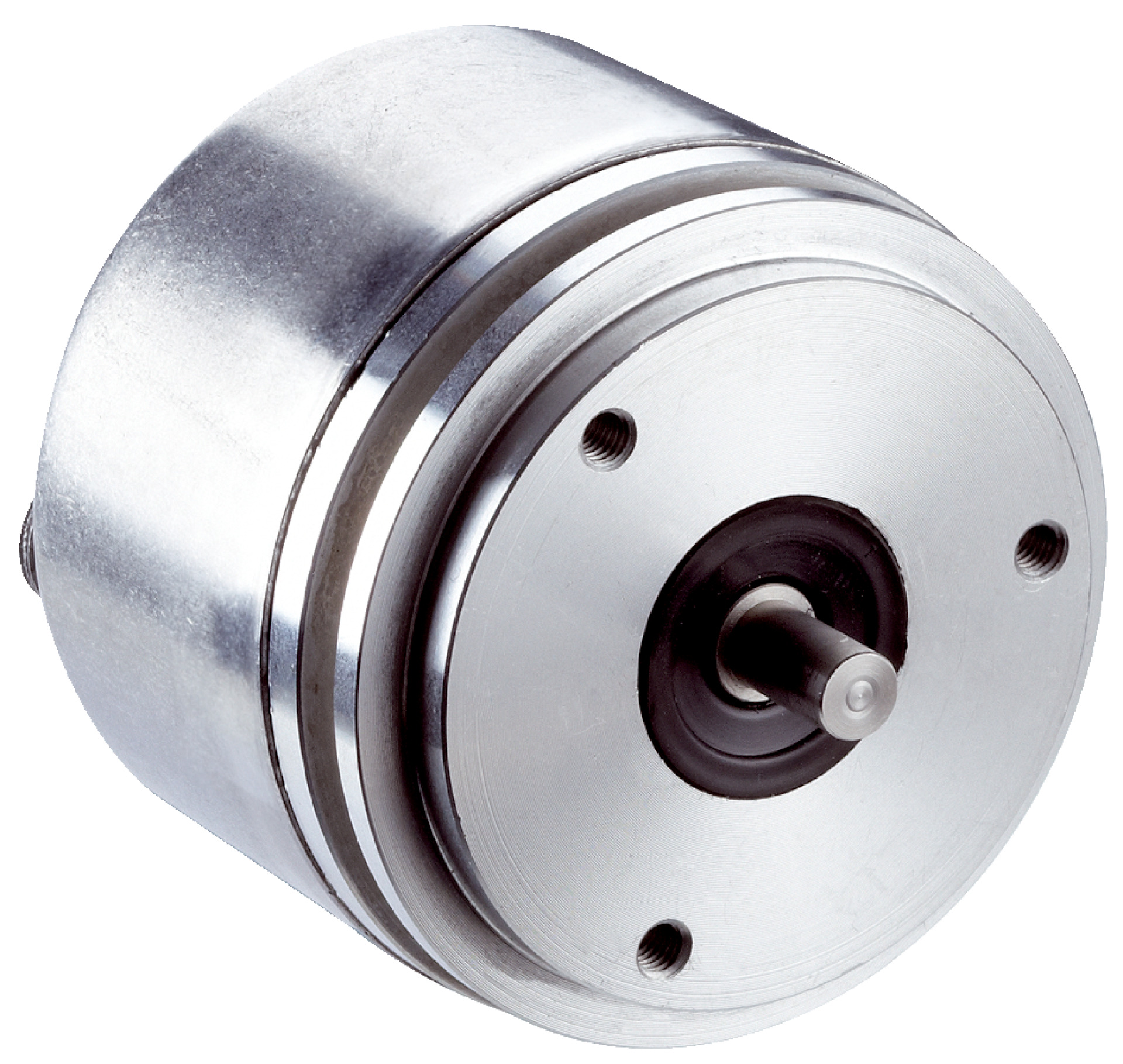

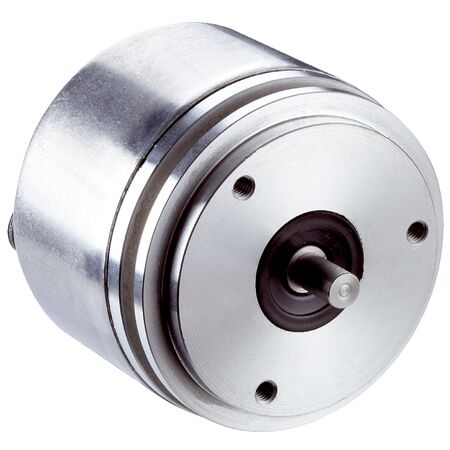

PROFIBUS DP Encoder A3M60B-S1PB013x13 | 8192 Steps/Rev | IP65/IP67 Rated | by SICK
The PROFIBUS DP Encoder A3M60B-S1PB013x13 offers high resolution with 8,192 steps per revolution, making it ideal for industrial automation and precise motion control applications. With a robust design featuring a stainless steel shaft and aluminum housing, it ensures durability and reliability in demanding environments. This encoder is perfect for robotics, machine tool control, and conveyor systems, providing accurate position and speed measurement.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PROFIBUS DP Encoder A3M60B-S1PB013x13 | 8192 Steps/Rev | IP65/IP67 Rated | by SICK
Brand: SICK
SKU: 1051018
Alternatively Known As: PROFIBUS DP Encoder, High Resolution Rotary Encoder, Industrial Position Sensor
Technical Specifications
- MTTFD: 60 years (EN ISO 13849-1)
- Resolution: 8,192 steps per revolution (13 bit), 8,192 revolutions (13 bit)
- Max resolution: 13 bit x 13 bit (8,192 x 8,192)
- Error limits G: 0.5° at room temperature
- Repeatability standard deviation σr: 0.25° at room temperature
- Communication interface: PROFIBUS DP (DPV0)
- Data transmission rate: ≤ 12 MBaud
- Initialization time: Approx. 1 s
- Parameterising data: Number of steps per revolution, Number of revolutions, PRESET, Counting direction
- Bus termination: DIP switch
- Connection type: Male connector 2x M12 5-pin axial, Female connector 1x M12 5-pin axial
- Supply voltage: 10 to 32 V
- Power consumption: ≤ 1.5 W
- Reverse polarity protection: Yes
- Mechanical design: Solid shaft, Servo flange
- Shaft diameter: 6 mm with flat
- Shaft length: 10 mm
- Shaft material: Stainless steel
- Flange material: Aluminum
- Housing material: Aluminum
- Start up torque: 1 Ncm (+20 °C)
- Operating torque: 0.8 Ncm (+20 °C)
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: ≤ 9,000 min⁻¹
- Bearing lifetime: 3.0 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: According to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 shaft side, IP67 housing side
- Permissible relative humidity: 95% (no condensation)
- Operating temperature range: –10 °C to +70 °C
- Storage temperature range: –40 °C to +100 °C
- Resistance to shocks: 80 g, 6 ms
- Resistance to vibration: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.28 kg
Key Features
- High resolution with 8,192 steps per revolution and 8,192 revolutions
- PROFIBUS DP communication interface with DPV0 support
- Robust mechanical design with solid stainless steel shaft and aluminum housing
- IP65/IP67 rated for shaft and housing sides respectively
- Low power consumption of ≤ 1.5 W with reverse polarity protection
- High operating speed up to 9,000 min⁻¹
- Long bearing lifetime of 3.0 x 10^9 revolutions
- Resistance to shocks (80 g) and vibration (30 g)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with PROFIBUS DP systems and electrical safety standards to ensure proper connection and configuration.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and servo motor feedback
- Machine tool control systems
- Conveyor and material handling systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage in industrial applications
- Durable design minimizes replacement frequency and electronic waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK A3M60B-S1PB013x13 encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
