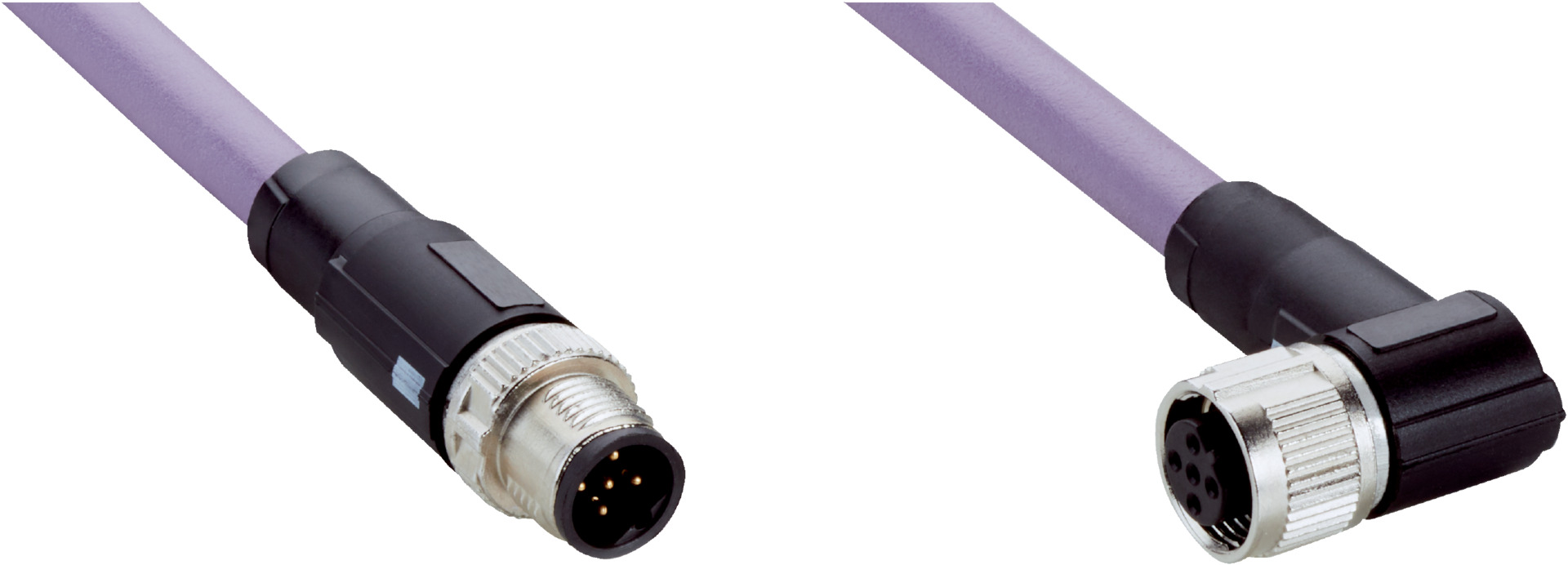

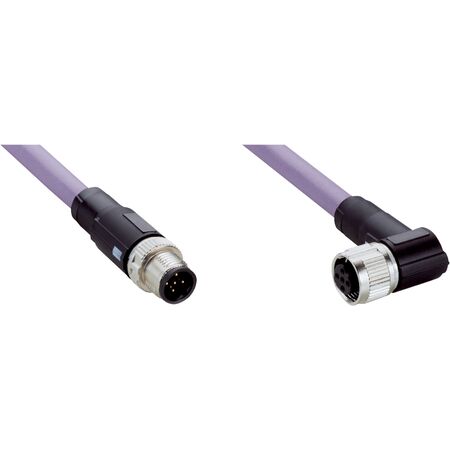

PROFIBUS DP Fieldbus Cable | M12 Male & Female Connectors | 0.6m Halogen-Free PUR | Violet Jacket | by SICK
The PROFIBUS DP Fieldbus Cable is designed for industrial automation, featuring M12 male and female connectors for reliable fieldbus communication. With a 0.6m halogen-free PUR cable and a durable zinc die-cast locking nut, it operates effectively in temperatures from -20 °C to +80 °C. Ideal for PROFIBUS DP network installations, this cable ensures safety and compliance with AS/NZS 60950 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, M12, 2-pin, angled, B-coded
- Connection type head B: Female connector, M12, 2-pin, straight, B-coded
- Locking nut material: Zinc die-cast, nickel-plated
- Cable length: 0.6 m
- Cable material: PUR, halogen-free
- Jacket color: Violet
- Cable diameter: 7.8 mm
- Signal type: Fieldbus, PROFIBUS DP
- Operating temperature flexible use: –20 °C to +80 °C
- Operating temperature stationary position: –40 °C to +80 °C
- Dimensions (H x L x W): 10mm x 600mm x 10mm
- Weight: 0.1 kg
Key Features
- Male connector, M12, 2-pin, angled, B-coded on head A
- Female connector, M12, 2-pin, straight, B-coded on head B
- Zinc die-cast, nickel-plated locking nut for durability
- 0.6 m PUR halogen-free cable with violet jacket
- Cable diameter of 7.8 mm
- Supports Fieldbus, PROFIBUS DP signal type
- Wide operating temperature range: Flexible use –20 °C to +80 °C, Stationary position –40 °C to +80 °C
Professional Installation Requirements
- Installation by qualified personnel familiar with PROFIBUS DP networks and industrial cabling standards is recommended to ensure reliable communication and safety.
Applications
- Industrial automation and control systems
- Fieldbus communication networks
- PROFIBUS DP network installations
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Halogen-free PUR jacket reduces harmful emissions in case of fire
- Durable materials extend product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YM2B82-060XXXG2B82 PROFIBUS DP Fieldbus Cable is available for immediate purchase, ideal for industrial automation and control system applications.
