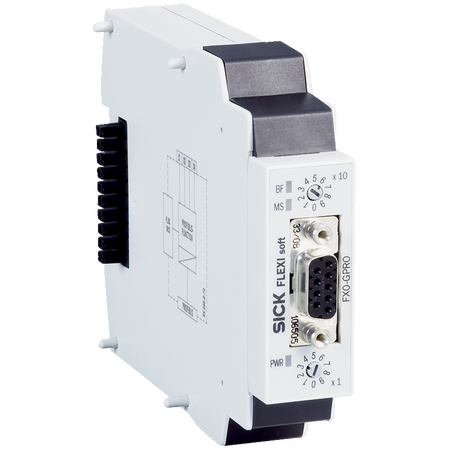

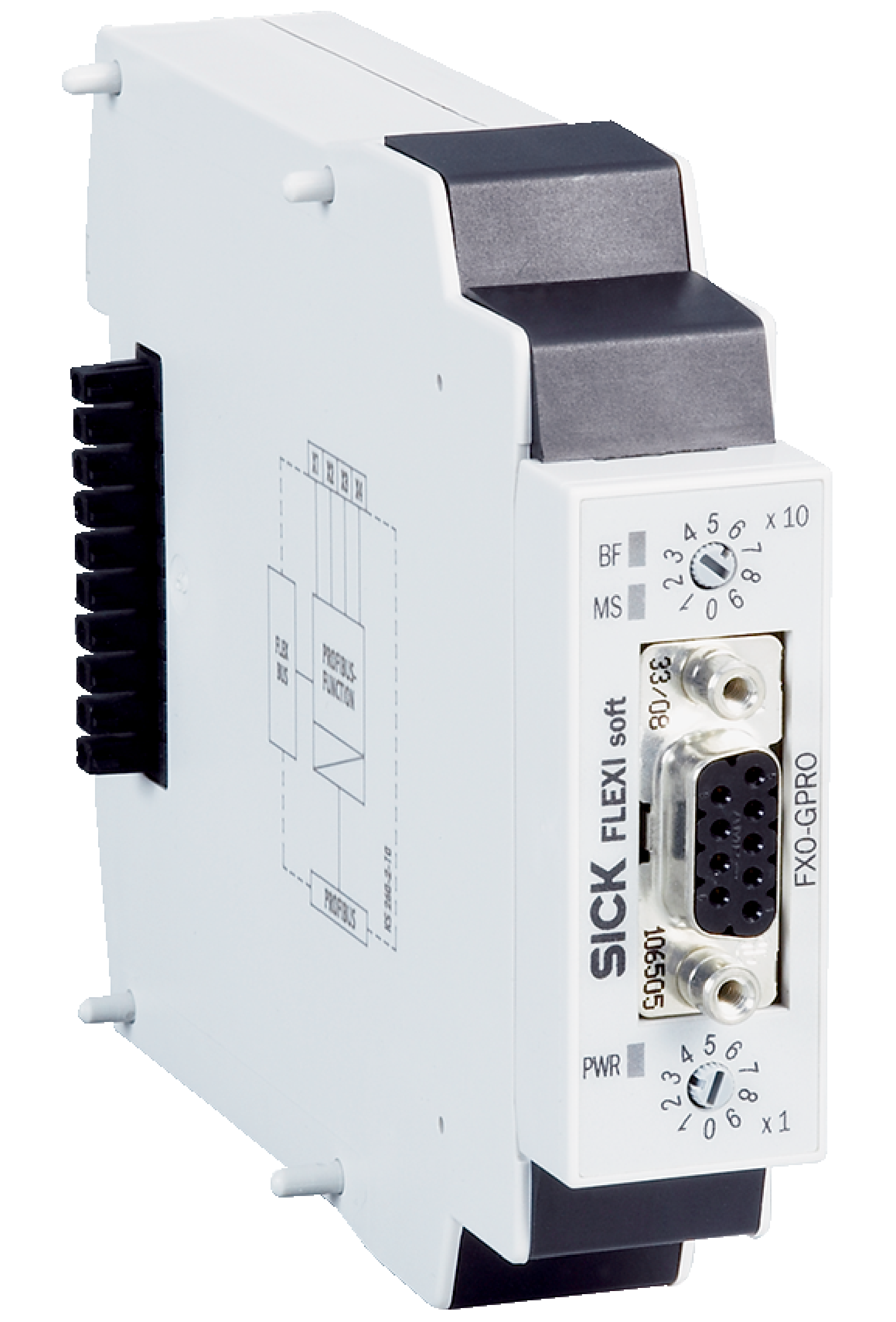

PROFIBUS DP Gateway Module FX0-GPRO00000 | 12,000 kbit/s Data Rate | IP20 Enclosure | by SICK
The PROFIBUS DP Gateway Module FX0-GPRO00000 is designed for seamless integration in industrial automation systems, offering a data transmission rate of up to 12,000 kbit/s. With configuration via Flexi Soft Designer software and an IP20 enclosure rating, this module is perfect for factory and process automation, ensuring reliable data exchange in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: PROFIBUS DP Gateway, Industrial Network Gateway Module, SICK Gateway Module FX0-GPRO00000
Technical Specifications
- Module Type: Gateway
- Fieldbus Network: PROFIBUS DP
- Configuration Method: Via Flexi Soft Designer software
- Data Transmission Rate: 12,000 kbit/s
- Connection Type: 1 x female D-Sub 9-pin connector
- Protection Class: III (EN 61140)
- Voltage Supply: Via FLEXBUS+
- Internal Power Consumption: ≤ 1.6 W
- Enclosure Rating: IP20 (EN 60529)
- Operating Temperature: –25 °C to +55 °C
- Storage Temperature: –25 °C to +70 °C
- Air Humidity: ≤ 95%, Non-condensing
- Dimensions (H x L x W): 97mm x 126mm x 23mm
- Weight: 0.15 kg
Key Features
- Gateway module for PROFIBUS DP industrial network
- Configuration via Flexi Soft Designer software
- Data transmission rate up to 12,000 kbit/s
- Single 9-pin female D-Sub connector
- Low internal power consumption (≤ 1.6 W)
- Protection class III (EN 61140)
- IP20 enclosure rating suitable for industrial environments
- Wide ambient operating temperature range from –25 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with PROFIBUS DP networks and electrical safety standards.
Applications
- Industrial automation systems requiring PROFIBUS DP communication
- Factory and process automation for data exchange
- Integration in control systems via FLEXBUS+ power supply
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage in industrial applications
- Complies with China RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK FX0-GPRO00000 PROFIBUS DP Gateway Module is available for immediate purchase, ideal for industrial automation and control system integration.
