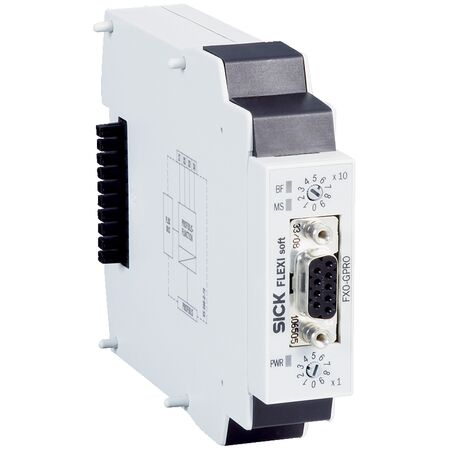

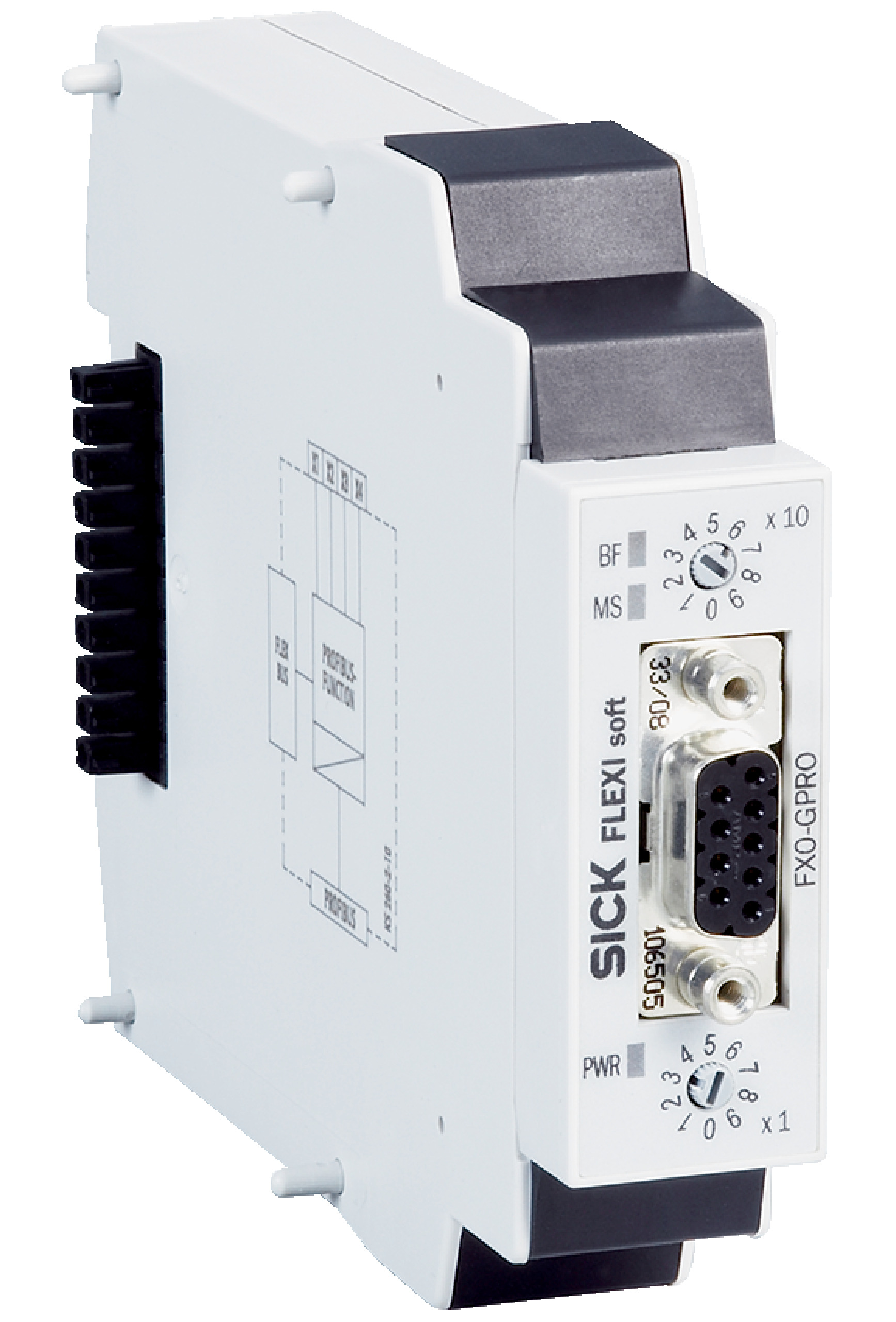

PROFIBUS DP Gateway Module | Configuration via Flexi Soft Designer | IP20 Enclosure | by SICK
The PROFIBUS DP Gateway Module FX0-GPRO00010 is designed for seamless integration in industrial automation systems. With a data transmission rate of up to 12,000 kbit/s and configuration via Flexi Soft Designer software, it ensures reliable communication in challenging environments. Its protective coating offers resistance to sulfur and other harsh gases, making it ideal for demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Module type: Gateway
- Fieldbus: PROFIBUS DP
- Configuration method: Via Flexi Soft Designer software
- Data transmission rate: 12,000 kbit/s
- Connection: 1 x female D-Sub 9-pin connector
- Protection class: III (EN 61140)
- Voltage supply: Via FLEXBUS+
- Internal power consumption: ≤ 1.6 W
- Enclosure rating: IP20 (EN 60529)
- Operating temperature: –25 °C to +55 °C
- Storage temperature: –25 °C to +70 °C
- Humidity: ≤ 95%, non-condensing
- Gas resistance: Sulfur dioxide 25 ppm for 21 days at 25 °C; mixed gases including H2S, NO2, Cl2, SO2
- Dimensions (H x L x W): 96.5mm x 126mm x 22.5mm
- Weight: 0.15 kg
Key Features
- Gateway module for PROFIBUS DP industrial network
- Configuration via Flexi Soft Designer software
- Protective coating for resistance to sulfur and other harsh gases
- Data transmission rate up to 12,000 kbit/s
- Single 9-pin female D-Sub connector
- Low internal power consumption (≤ 1.6 W)
- Protection class III (EN 61140)
- IP20 enclosure rating suitable for industrial environments
- Wide operating temperature range from –25 °C to +55 °C
- Resistant to mixed gases including H2S, NO2, Cl2, SO2
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with PROFIBUS DP networks and industrial automation standards.
Applications
- Industrial automation systems requiring PROFIBUS DP communication
- Environments with challenging ambient conditions including sulfur exposure
- Integration with Flexi Soft Designer software for configuration
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Protective coating extends product lifespan reducing waste
- Low power consumption minimizes energy usage
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK FX0-GPRO00010 PROFIBUS DP Gateway Module is available for immediate purchase, ideal for industrial automation and control system integration.
