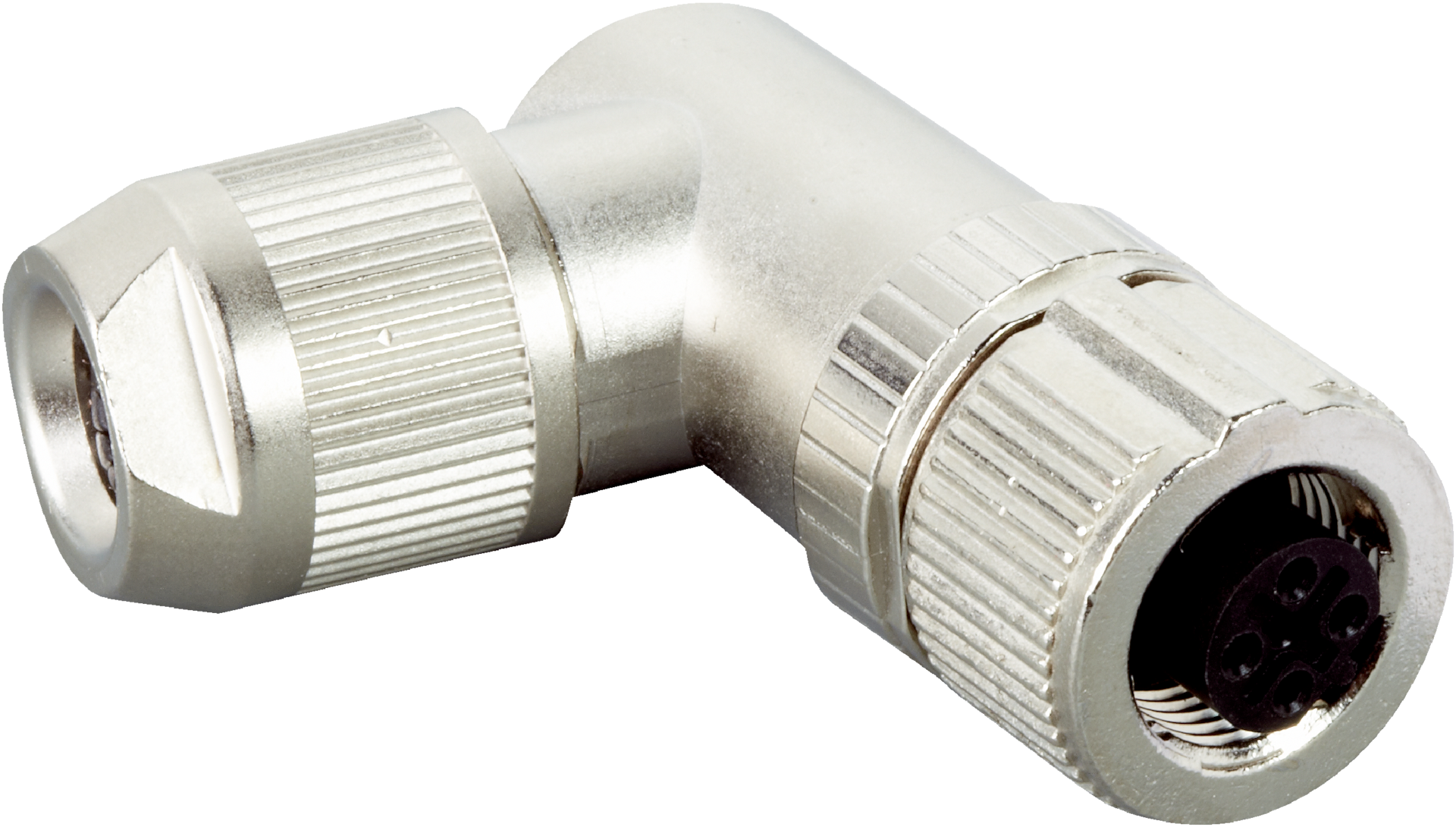

PROFIBUS DP M12 Connector | 5-Pin Angled Female | IP67 Rated | by SICK
The PROFIBUS DP M12 Connector is designed for industrial automation systems, featuring a 5-pin angled female connector with a robust IP67 rating for dust and water protection. With a spring-cage connection and quick screw locking mechanism, it ensures secure wiring in harsh environments, making it ideal for factory automation and control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: PROFIBUS DP M12 Connector, SICK DOS-1205, Industrial M12 Female Connector
Technical Specifications
- Connection type head A: Female connector, M12, 5-pin, angled, B-coded
- Connection type: Spring-cage connection
- Locking plug connector: Quick screw connection
- Connector color: Black
- Locking nut material: Brass, nickel-plated
- Shielding: Shielded
- Permitted cable diameter: 4 mm to 8 mm
- Permitted cross-section: 0.14 mm² to 0.5 mm²
- Reference voltage: ≤ 60 V
- Current loading: 4 A
- Signal type: PROFIBUS DP
- Enclosure rating: IP67
- Operating temperature: -40 °C to +85 °C
- Dimensions (H x L x W): 30mm x 50mm x 30mm
- Weight: 0.1 kg
Key Features
- Female M12, 5-pin, angled, B-coded connector
- Spring-cage connection for secure wiring
- Quick screw locking plug connector
- Nickel-plated brass locking nut for durability
- Shielded design to reduce interference
- Permitted cable diameter from 4 mm to 8 mm
- Supports current loading up to 4 A
- Operating temperature range from -40 °C to +85 °C
- Enclosure rating IP67 for dust and water protection
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation systems requiring reliable PROFIBUS DP communication
- Factory automation and control systems
- Harsh environments needing IP67 rated connectors
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable materials and shielding reduce electronic waste by extending product lifespan
- IP67 rating ensures protection against environmental factors, reducing failure rates and replacements
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

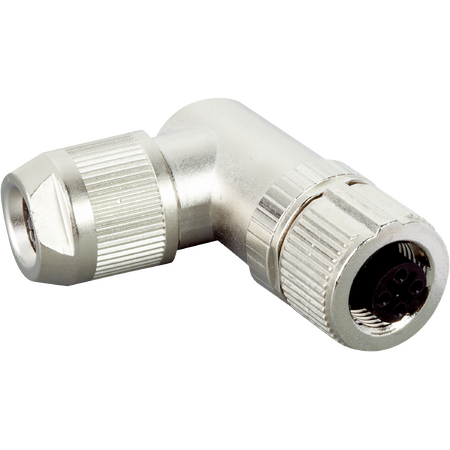

The SICK DOS-1205-WQ PROFIBUS DP Connector is available for immediate purchase, ideal for industrial automation and control system applications.
