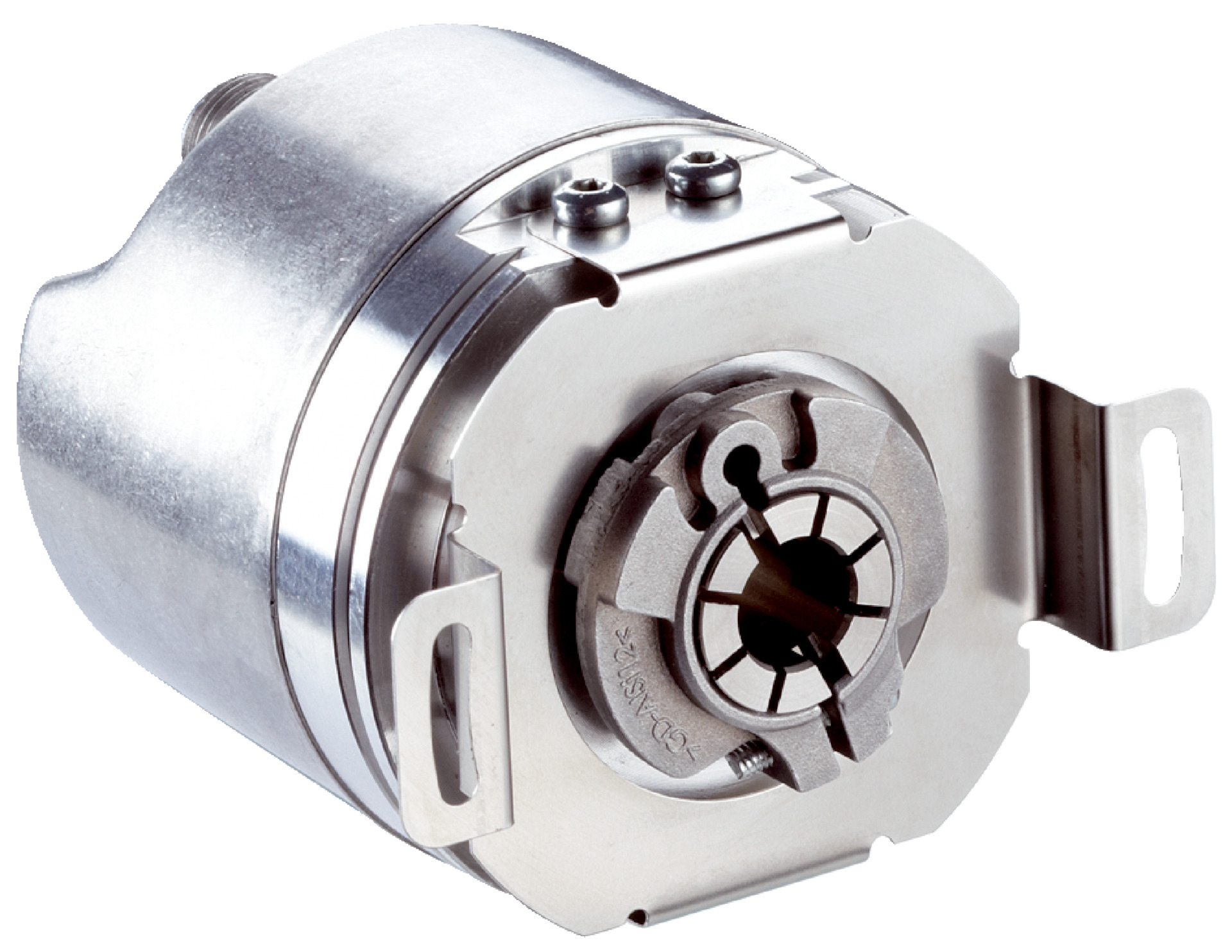

PROFIBUS DP Rotary Encoder | 8192 Steps/Rev | Blind Hollow Shaft | IP65/IP67 Rated | by SICK
The PROFIBUS DP Rotary Encoder offers high precision with 8,192 steps per revolution, making it ideal for industrial automation and robotics applications. Designed for reliability, it features a robust blind hollow shaft made of stainless steel and operates at speeds up to 9,000 min⁻¹. With IP65 and IP67 ratings, this encoder ensures durability in harsh environments, perfect for safety-related monitoring in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PROFIBUS DP Rotary Encoder | 8192 Steps/Rev | Blind Hollow Shaft | IP65/IP67 Rated | by SICK
Brand: SICK
SKU: 1053328
Alternatively Known As: PROFIBUS DP Rotary Encoder, Blind Hollow Shaft Encoder, High Resolution Rotary Encoder
Technical Specifications
- MTTFD: 60 years (EN ISO 13849-1)
- Resolution: 8,192 steps per revolution (13 bit), 8,192 revolutions (13 bit)
- Max resolution: 13 bit x 13 bit (8,192 x 8,192)
- Error limits G: 0.5° at room temperature
- Repeatability standard deviation σr: 0.25° at room temperature
- Communication interface: PROFIBUS DP (DPV0)
- Data transmission rate: ≤ 12 MBaud
- Initialization time: Approx. 1 s
- Parameterising data: Number of steps per revolution, Number of revolutions, PRESET, Counting direction
- Bus termination: DIP switch
- Connection type: Male connector 2x M12 5-pin axial, Female connector 1x M12 5-pin axial
- Supply voltage: 10 to 32 V
- Power consumption: ≤ 1.5 W
- Reverse polarity protection: Yes
- Mechanical design: Blind hollow shaft
- Shaft diameter: 1/2 inch
- Shaft material: Stainless steel
- Flange material: Aluminum
- Housing material: Aluminum
- Start up torque: 1 Ncm at +20 °C
- Operating torque: 0.8 Ncm at +20 °C
- Permissible static movement: ± 0.3 mm radial, ± 0.5 mm axial
- Permissible dynamic movement: ± 0.1 mm radial, ± 0.2 mm axial
- Operating speed: ≤ 9,000 min⁻¹
- Bearing lifetime: 3.0 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 shaft side, IP67 housing side
- Permissible relative humidity: 95% (no condensation)
- Operating temperature range: -10 °C to +70 °C
- Storage temperature range: -40 °C to +100 °C
- Shock resistance: 80 g, 6 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.28 kg
Key Features
- High resolution with 8,192 steps per revolution and 8,192 revolutions
- PROFIBUS DP communication interface with DPV0 support
- Robust mechanical design with blind hollow shaft and stainless steel shaft
- IP65 shaft side and IP67 housing side protection
- Low power consumption ≤ 1.5 W with reverse polarity protection
- High operating speed up to 9,000 min⁻¹
- Long bearing lifetime of 3.0 x 10^9 revolutions
- EMC compliant according to EN 61000-6-2 and EN 61000-6-3
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with PROFIBUS DP systems and rotary encoder mounting to ensure proper alignment and electrical connections.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and motion control systems
- Conveyor and packaging machinery
- Safety-related monitoring in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage in industrial systems
- Durable design minimizes replacement frequency and electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK A3M60B-BFPB013x13 rotary encoder is available for immediate purchase, ideal for industrial automation and safety-related applications requiring high precision and reliability.
