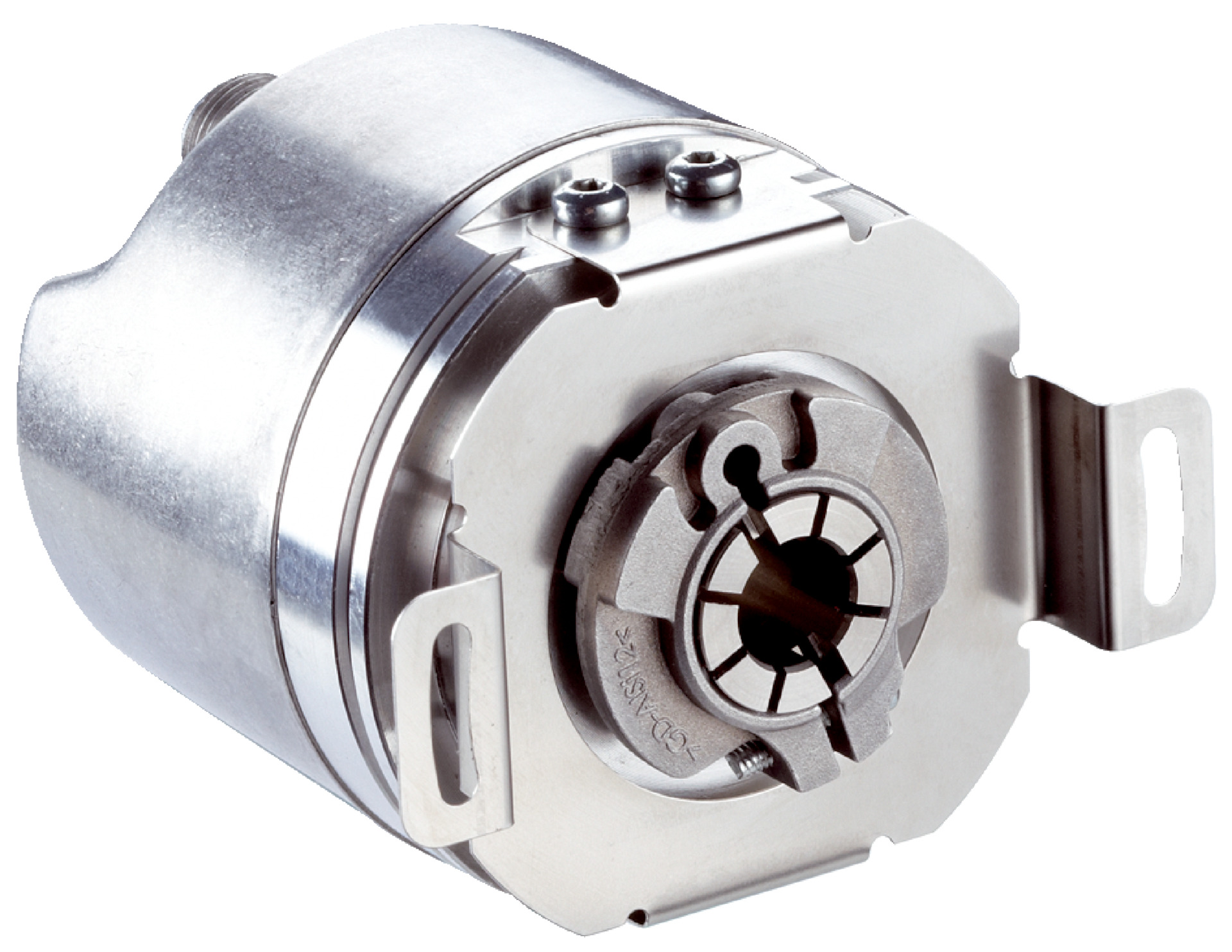

PROFIBUS DP Rotary Encoder | 8192 Steps/Rev | IP65/IP67 Protection | High Speed 9000 RPM | by SICK
The PROFIBUS DP Rotary Encoder offers high resolution with 8,192 steps per revolution, making it ideal for industrial automation and precise position measurement. Designed for robust performance, it features IP65/IP67 protection, ensuring durability in harsh environments. With a high operating speed of up to 9,000 min⁻¹ and low power consumption, this encoder is perfect for robotics, motion control systems, and factory automation applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PROFIBUS DP Rotary Encoder | 8192 Steps/Rev | IP65/IP67 Protection | High Speed 9000 RPM | by SICK
Brand: SICK
SKU: 1051016
Alternatively Known As: PROFIBUS DP Rotary Encoder, High Resolution Rotary Encoder, Industrial Position Encoder
Technical Specifications
- Mean Time To Dangerous Failure (MTTFD): 60 years (EN ISO 13849-1)
- Resolution: 8,192 steps per revolution (13 bit), 8,192 revolutions (13 bit), total 13 bit x 13 bit
- Error limits G: 0.5° at room temperature
- Repeatability standard deviation σr: 0.25° at room temperature
- Communication interface: PROFIBUS DP with DPV0
- Data transmission rate: up to 12 MBaud
- Initialization time: approx. 1 second
- Parameterising data: steps per revolution, number of revolutions, preset, counting direction
- Bus termination: DIP switch
- Connection type: Male connector 2x M12 5-pin axial, Female connector 1x M12 5-pin axial
- Supply voltage: 10 to 32 V
- Power consumption: ≤ 1.5 W
- Reverse polarity protection: Yes
- Mechanical design: Blind hollow shaft with 8 mm diameter, front clamp
- Shaft material: Stainless steel
- Flange and housing material: Aluminum
- Start up torque: 1 Ncm at +20 °C
- Operating torque: 0.8 Ncm at +20 °C
- Permissible static movement: ±0.3 mm radial, ±0.5 mm axial
- Permissible dynamic movement: ±0.1 mm radial, ±0.2 mm axial
- Operating speed: up to 9,000 min⁻¹
- Bearing lifetime: 3.0 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 shaft side, IP67 housing side
- Operating temperature range: -10 °C to +70 °C
- Storage temperature range: -40 °C to +100 °C
- Shock resistance: 80 g, 6 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.28 kg
Key Features
- High resolution with 8,192 steps per revolution and 8,192 revolutions
- PROFIBUS DP communication interface with DPV0 support
- Robust mechanical design with blind hollow shaft and stainless steel shaft
- IP65 shaft side and IP67 housing side protection
- Low power consumption ≤ 1.5 W with reverse polarity protection
- High operating speed up to 9,000 min⁻¹
- Long bearing lifetime of 3.0 x 10^9 revolutions
- Excellent resistance to shocks (80 g) and vibration (30 g)
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and configuration of the PROFIBUS DP interface and mechanical mounting.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and motion control systems
- Conveyor and packaging machinery
- Factory automation requiring high resolution rotary encoding
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage in industrial systems
- Durable design minimizes replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK A3M60B-BBPB013x13 rotary encoder is available for immediate purchase, ideal for industrial automation and motion control applications.
