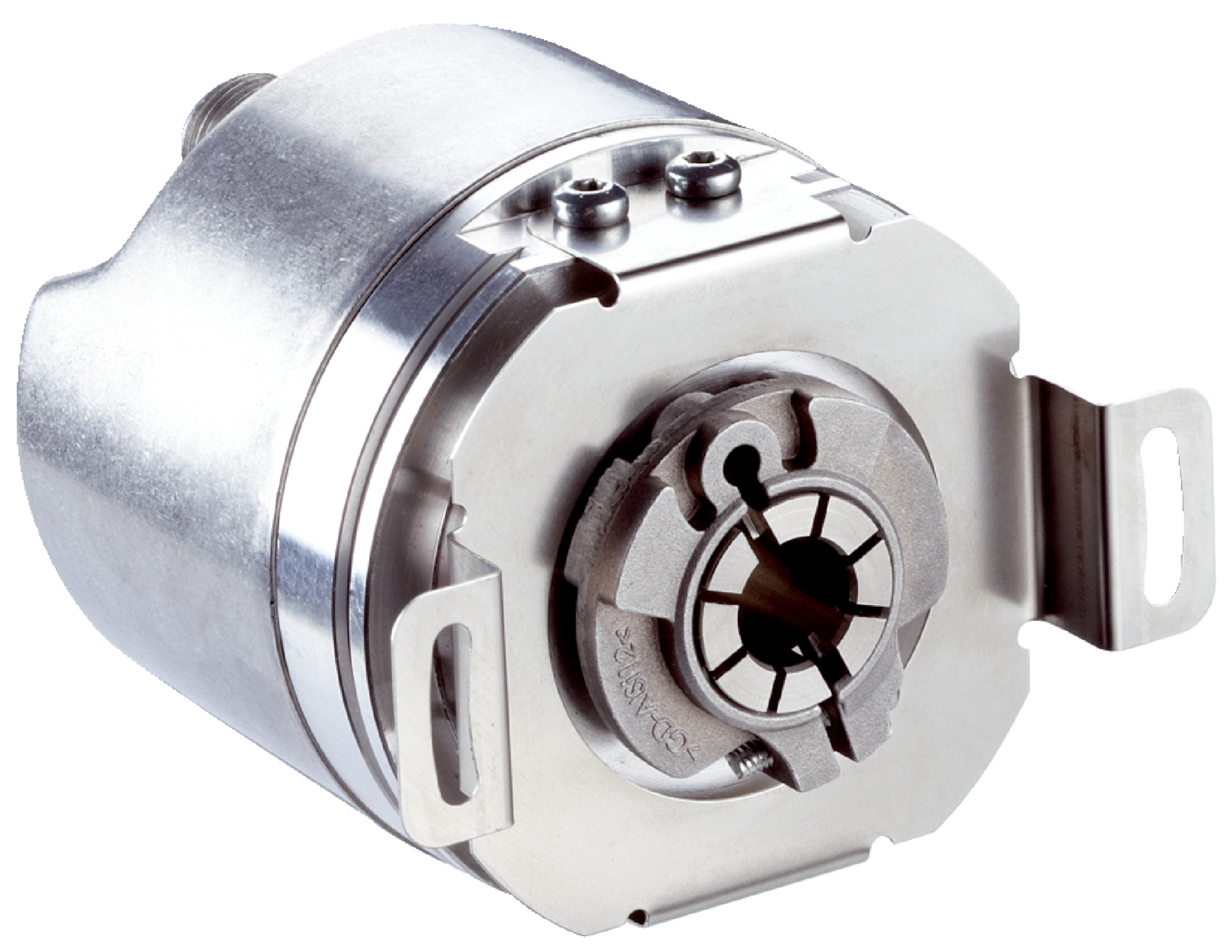

PROFIBUS DP Rotary Encoder | 8192 Steps/Rev | High Resolution | IP65/IP67 Protection | by SICK
The PROFIBUS DP Rotary Encoder offers high resolution with 8,192 steps per revolution, making it ideal for industrial automation and precise position measurement. Designed for robust performance, it features a stainless steel shaft and an IP65/IP67 rating for protection against dust and water. With low power consumption and fast initialization, this encoder is perfect for robotics and motion control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PROFIBUS DP Rotary Encoder | 8192 Steps/Rev | High Resolution | IP65/IP67 Protection | by SICK
Brand: SICK
SKU: 1053327
Alternatively Known As: PROFIBUS DP Rotary Encoder, High Resolution Rotary Encoder, Industrial Position Encoder
Technical Specifications
- MTTFD: 60 years (EN ISO 13849-1)
- Resolution: 8,192 steps per revolution (13 bit), 8,192 revolutions (13 bit)
- Max resolution: 13 bit x 13 bit (8,192 x 8,192)
- Error limits G: 0.5° at room temperature
- Repeatability standard deviation σr: 0.25° at room temperature
- Communication interface: PROFIBUS DP, DPV0
- Data transmission rate: ≤ 12 MBaud
- Initialization time: Approx. 1 second
- Parameterising data: Number of steps per revolution, Number of revolutions, PRESET, Counting direction
- Bus termination: DIP switch
- Connection type: Male connector 2x M12 5-pin axial, Female connector 1x M12 5-pin axial
- Supply voltage: 10 to 32 V
- Power consumption: ≤ 1.5 W
- Reverse polarity protection: Yes
- Mechanical design: Blind hollow shaft
- Shaft diameter: 3/8 inch
- Shaft material: Stainless steel
- Flange material: Aluminum
- Housing material: Aluminum
- Start up torque: 1 Ncm at +20 °C
- Operating torque: 0.8 Ncm at +20 °C
- Permissible static movement: ± 0.3 mm radial, ± 0.5 mm axial
- Permissible dynamic movement: ± 0.1 mm radial, ± 0.2 mm axial
- Operating speed: ≤ 9,000 min⁻¹
- Bearing lifetime: 3.0 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: According to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 shaft side, IP67 housing side
- Permissible relative humidity: 95% (no condensation)
- Operating temperature range: -10 °C to +70 °C
- Storage temperature range: -40 °C to +100 °C
- Shock resistance: 80 g, 6 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.28 kg
Key Features
- High resolution with 8,192 steps per revolution and 8,192 revolutions
- PROFIBUS DP communication interface with DPV0 support
- Robust mechanical design with blind hollow shaft and stainless steel shaft
- IP65 shaft side and IP67 housing side protection
- Low power consumption ≤ 1.5 W with reverse polarity protection
- High operating speed up to 9,000 min⁻¹
- Long bearing lifetime of 3.0 x 10^9 revolutions
- Fast initialization time of approximately 1 second
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with PROFIBUS DP systems and rotary encoder mounting to ensure proper alignment and electrical connections.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and motion control systems
- Conveyor and packaging machinery
- Factory automation requiring high-resolution rotary encoding
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage in industrial applications
- Durable materials and long bearing life minimize waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK A3M60B-BCPB013x13 rotary encoder is available for immediate purchase, ideal for industrial automation and motion control applications.
