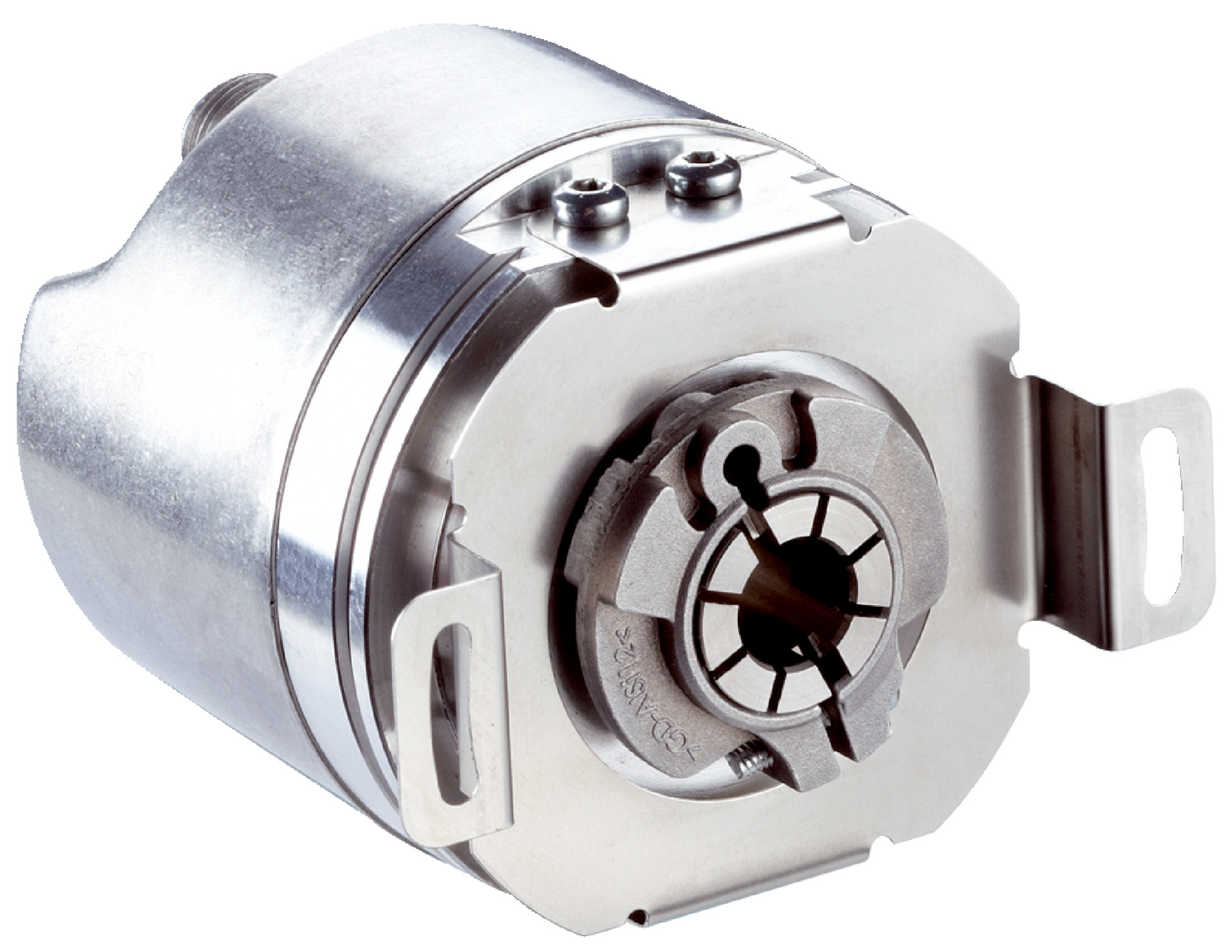

PROFIBUS DP Rotary Encoder A3M60B | 8192 Steps/Rev | IP65/IP67 Protection | by SICK
The PROFIBUS DP Rotary Encoder A3M60B is engineered for precision in industrial automation, featuring a high resolution of 8,192 steps per revolution and robust IP65/IP67 protection. Ideal for robotics and motion control systems, this encoder ensures reliable performance with low power consumption and a long bearing lifetime, making it perfect for demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PROFIBUS DP Rotary Encoder A3M60B | 8192 Steps/Rev | IP65/IP67 Protection | by SICK
Brand: SICK
SKU: 1051017
Alternatively Known As: PROFIBUS DP Rotary Encoder, SICK Rotary Encoder A3M60B, Blind Hollow Shaft Encoder
Technical Specifications
- MTTFD: 60 years (EN ISO 13849-1)
- Max resolution: 8,192 steps/rev x 8,192 revolutions (13 bit x 13 bit)
- Error limits G: 0.5° at room temperature
- Repeatability standard deviation σr: 0.25° at room temperature
- Communication interface: PROFIBUS DP with DPV0
- Data transmission rate: ≤ 12 MBaud
- Initialization time: Approx. 1 second
- Parameterising data: Steps per revolution, number of revolutions, preset, counting direction
- Bus termination: DIP switch
- Connection type: Male connector 2x M12 5-pin axial, Female connector 1x M12 5-pin axial
- Supply voltage: 10 to 32 V
- Power consumption: ≤ 1.5 W
- Reverse polarity protection: Yes
- Mechanical design: Blind hollow shaft with 15 mm diameter
- Shaft material: Stainless steel
- Flange and housing material: Aluminum
- Start up torque: 1 Ncm at +20 °C
- Operating torque: 0.8 Ncm at +20 °C
- Permissible static movement: ±0.3 mm radial, ±0.5 mm axial
- Permissible dynamic movement: ±0.1 mm radial, ±0.2 mm axial
- Operating speed: ≤ 9,000 min⁻¹
- Bearing lifetime: 3.0 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 shaft side, IP67 housing side
- Operating temperature range: -10 °C to +70 °C
- Storage temperature range: -40 °C to +100 °C
- Shock resistance: 80 g, 6 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.28 kg
Key Features
- High resolution with 8,192 steps per revolution and 8,192 revolutions
- PROFIBUS DP communication interface with DPV0 support
- Robust mechanical design with blind hollow shaft and stainless steel shaft
- IP65 shaft side and IP67 housing side protection
- Low power consumption ≤ 1.5 W with reverse polarity protection
- High operating speed up to 9,000 min⁻¹
- Long bearing lifetime of 3.0 x 10^9 revolutions
- Excellent resistance to shocks (80 g) and vibration (30 g)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with PROFIBUS DP systems and rotary encoder mounting to ensure proper alignment and electrical connection.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and motion control systems
- Conveyor and packaging machinery
- Factory automation requiring high resolution rotary encoding
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage in industrial systems
- Durable design minimizes replacement frequency and electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK A3M60B-BHPB013x13 rotary encoder is available for immediate purchase, ideal for industrial automation and motion control applications.
