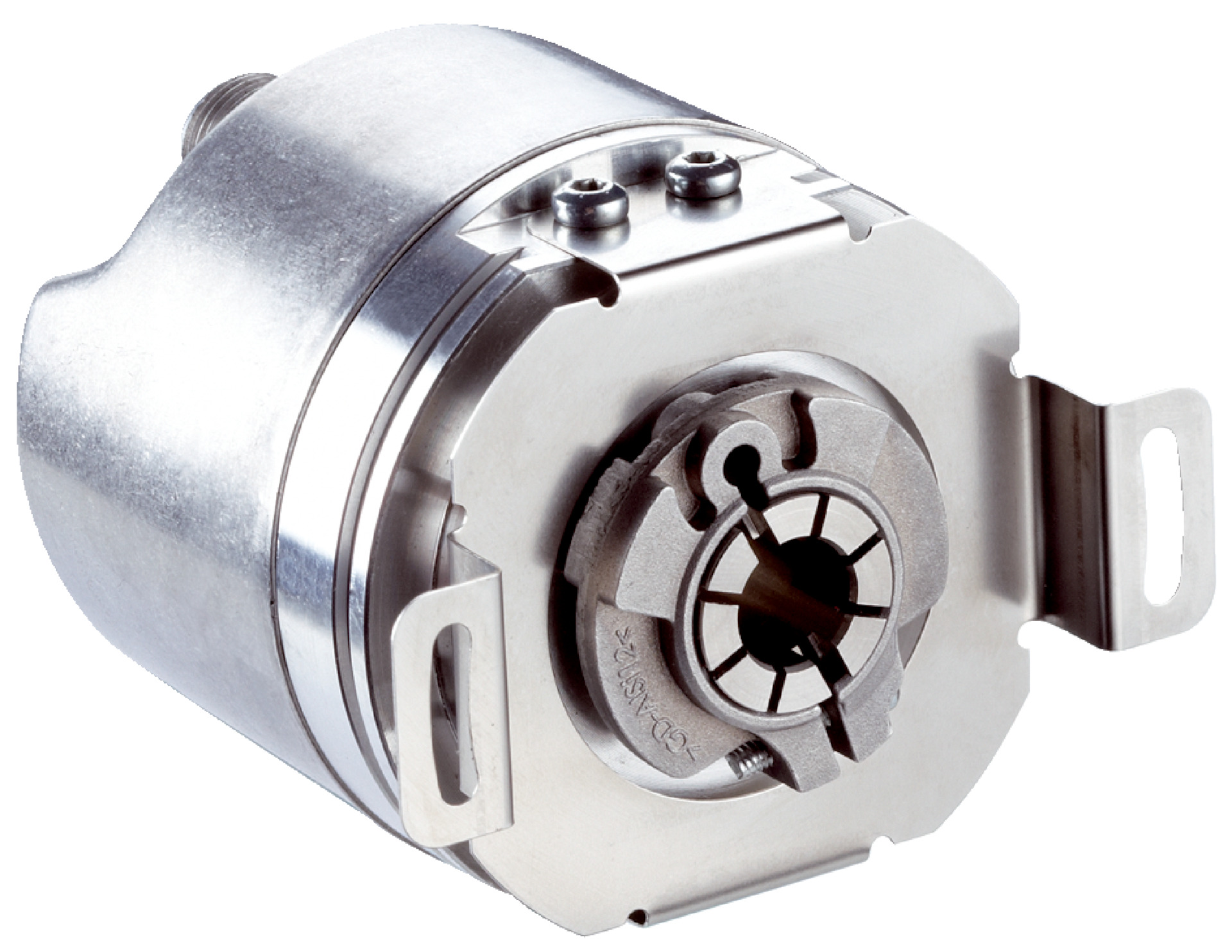

PROFIBUS DP Rotary Encoder | High Resolution 8192 Steps | IP65/IP67 Protection | by SICK
The PROFIBUS DP Rotary Encoder offers high resolution with 8,192 steps per revolution, making it ideal for industrial automation and robotics. Designed for precision in position and speed measurement, this encoder features robust IP65/IP67 protection and low power consumption, ensuring reliability in demanding environments. Perfect for applications requiring high accuracy and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PROFIBUS DP Rotary Encoder | High Resolution 8192 Steps | IP65/IP67 Protection | by SICK
Brand: SICK
SKU: 1053329
Alternatively Known As: PROFIBUS DP Rotary Encoder, High Resolution Rotary Encoder, Industrial Position Sensor
Technical Specifications
- MTTFD: 60 years (EN ISO 13849-1)
- Resolution: 8,192 steps per revolution (13 bit), 8,192 revolutions (13 bit)
- Max resolution: 13 bit x 13 bit (8,192 x 8,192)
- Error limits G: 0.5° at room temperature
- Repeatability standard deviation σr: 0.25° at room temperature
- Communication interface: PROFIBUS DP (DPV0)
- Data transmission rate: ≤ 12 MBaud
- Initialization time: Approx. 1 s
- Parameterising data: Number of steps per revolution, Number of revolutions, PRESET, Counting direction
- Bus termination: DIP switch
- Connection type: Male connector 2x M12 5-pin axial, Female connector 1x M12 5-pin axial
- Supply voltage: 10 ... 32 V
- Power consumption: ≤ 1.5 W
- Reverse polarity protection: Yes
- Mechanical design: Blind hollow shaft
- Shaft diameter: 5/8 inch
- Shaft material: Stainless steel
- Flange material: Aluminum
- Housing material: Aluminum
- Start up torque: 1 Ncm (+20 °C)
- Operating torque: 0.8 Ncm (+20 °C)
- Permissible movement static: ± 0.3 mm radial, ± 0.5 mm axial
- Permissible movement dynamic: ± 0.1 mm radial, ± 0.2 mm axial
- Operating speed: ≤ 9,000 min⁻¹
- Bearing lifetime: 3.0 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: According to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 shaft side, IP67 housing side
- Permissible relative humidity: 95% (no condensation)
- Operating temperature range: –10 °C to +70 °C
- Storage temperature range: –40 °C to +100 °C
- Resistance to shocks: 80 g, 6 ms
- Resistance to vibration: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 50mm x 80mm x 50mm
- Weight: 0.28 kg
Key Features
- High resolution with 8,192 steps per revolution and 8,192 revolutions
- PROFIBUS DP communication interface with DPV0 support
- Robust mechanical design with blind hollow shaft and stainless steel shaft
- IP65 shaft side and IP67 housing side protection
- Low power consumption ≤ 1.5 W with reverse polarity protection
- High operating speed up to 9,000 min⁻¹
- Long bearing lifetime of 3.0 x 10^9 revolutions
- Excellent resistance to shocks (80 g) and vibration (30 g)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with PROFIBUS DP systems and rotary encoder mounting to ensure proper alignment and electrical connections.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and motion control systems
- Conveyor and packaging machinery
- Safety-related applications requiring high reliability
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage in industrial systems
- Durable design minimizes replacement frequency and electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK A3M60B-BJPB013x13 rotary encoder is available for immediate purchase, ideal for industrial automation and safety-related applications requiring high precision and reliability.
