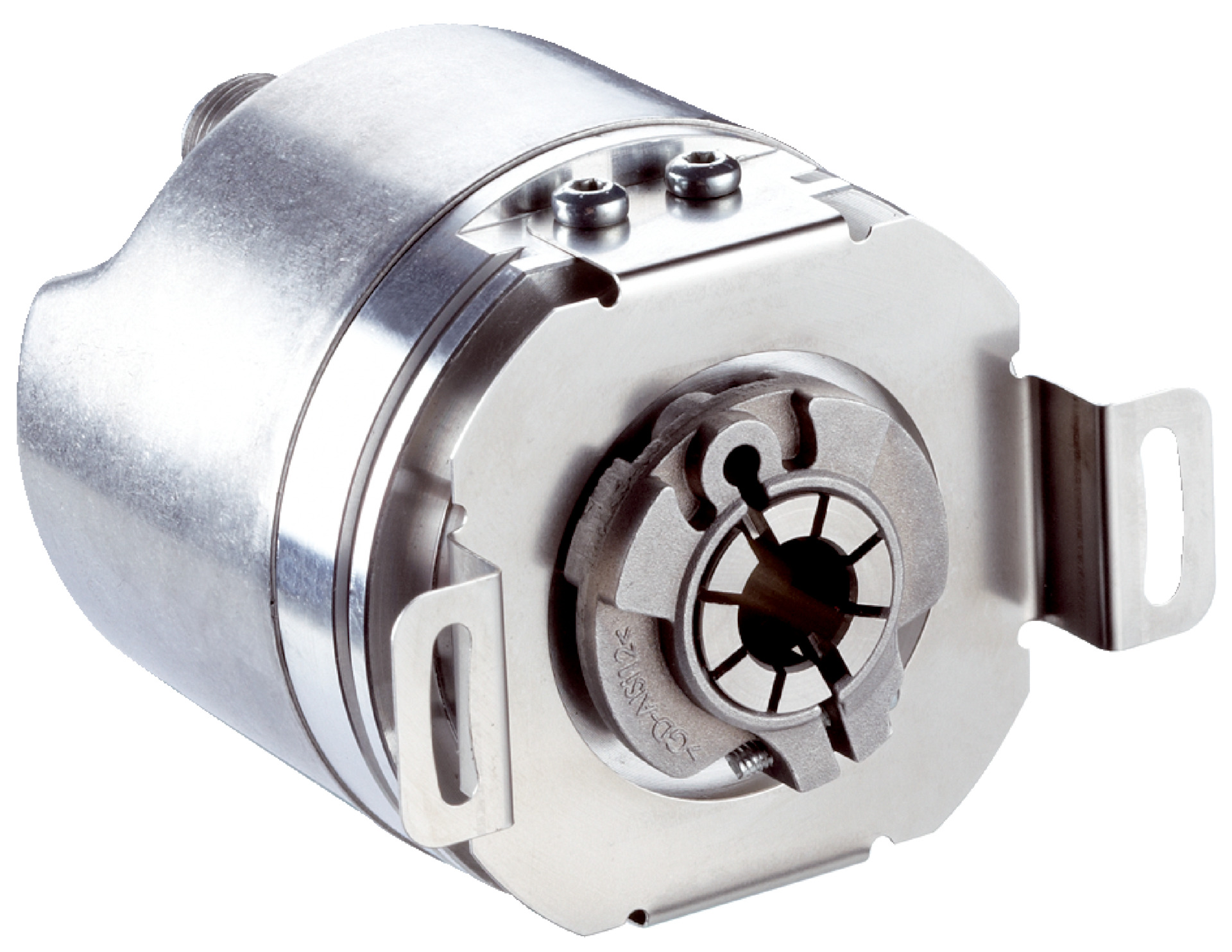

PROFIBUS DP Rotary Encoder | High Resolution 16,384 Steps/Rev | IP67 Rated | by SICK
The PROFIBUS DP Rotary Encoder offers high resolution with 16,384 steps per revolution, making it ideal for industrial automation and robotics. With a robust mechanical design and IP67 rating, it ensures reliable performance in harsh environments. Designed for precise position and speed measurement, this encoder is perfect for safety-related monitoring in machinery and factory automation applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PROFIBUS DP Rotary Encoder | High Resolution 16,384 Steps/Rev | IP67 Rated | by SICK
Brand: SICK
SKU: 1053336
Alternatively Known As: PROFIBUS DP Rotary Encoder, High Resolution Rotary Encoder, Industrial Position Sensor
Technical Specifications
- MTTFD: 60 years (EN ISO 13849-1)
- Max resolution: 16,384 steps/rev x 131,072 revolutions (14 bit x 17 bit)
- Error limits G: 0.35° at room temperature
- Repeatability standard deviation σr: 0.15° at room temperature
- Communication interface: PROFIBUS DP (DPV0 / DPV1 / DPV2)
- Data transmission rate: ≤ 12 MBaud
- Initialization time: Approx. 1 s
- Connection type: Male connector 2x M12 5-pin axial, Female connector 1x M12 5-pin axial
- Supply voltage: 10 to 32 V
- Power consumption: ≤ 1.5 W
- Mechanical design: Blind hollow shaft, 14 mm diameter
- Shaft material: Stainless steel
- Housing and flange material: Aluminum
- Start up torque: 2 Ncm at +20 °C
- Operating torque: 1.6 Ncm at +20 °C
- Permissible static movement: ±0.3 mm radial, ±0.5 mm axial
- Permissible dynamic movement: ±0.1 mm radial, ±0.2 mm axial
- Operating speed: ≤ 6,000 min⁻¹
- Bearing lifetime: 3.0 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 (shaft and housing side)
- Operating temperature range: –30 °C to +80 °C
- Storage temperature range: –40 °C to +100 °C
- Shock resistance: 80 g, 6 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 100mm x 60mm
- Weight: 0.28 kg
Key Features
- High resolution with 16,384 steps per revolution and 131,072 revolutions
- PROFIBUS DP communication interface supporting DPV0 / DPV1 / DPV2
- Robust mechanical design with blind hollow shaft and stainless steel shaft
- IP67 rated enclosure for protection against dust and water
- Low power consumption of ≤ 1.5 W with reverse polarity protection
- High reliability with MTTFD of 60 years according to EN ISO 13849-1
- Operating temperature range from –30 °C to +80 °C
- Resistance to shocks up to 80 g and vibration up to 30 g
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with PROFIBUS DP systems and rotary encoder mounting to ensure proper alignment and electrical connections.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and motion control systems
- Safety-related monitoring in machinery
- Factory automation requiring high resolution rotary encoding
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage in industrial applications
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK A3M60A-BGPB014x17 rotary encoder is available for immediate purchase, ideal for industrial automation and safety-related applications requiring high precision and reliability.
