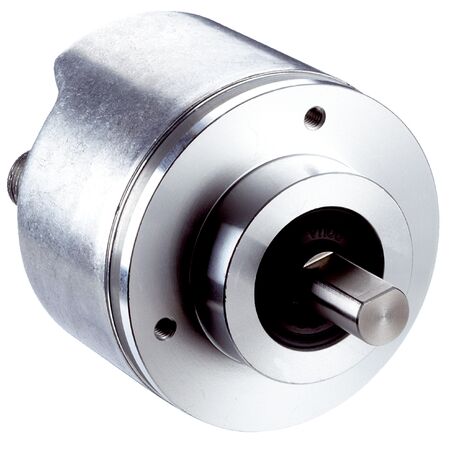

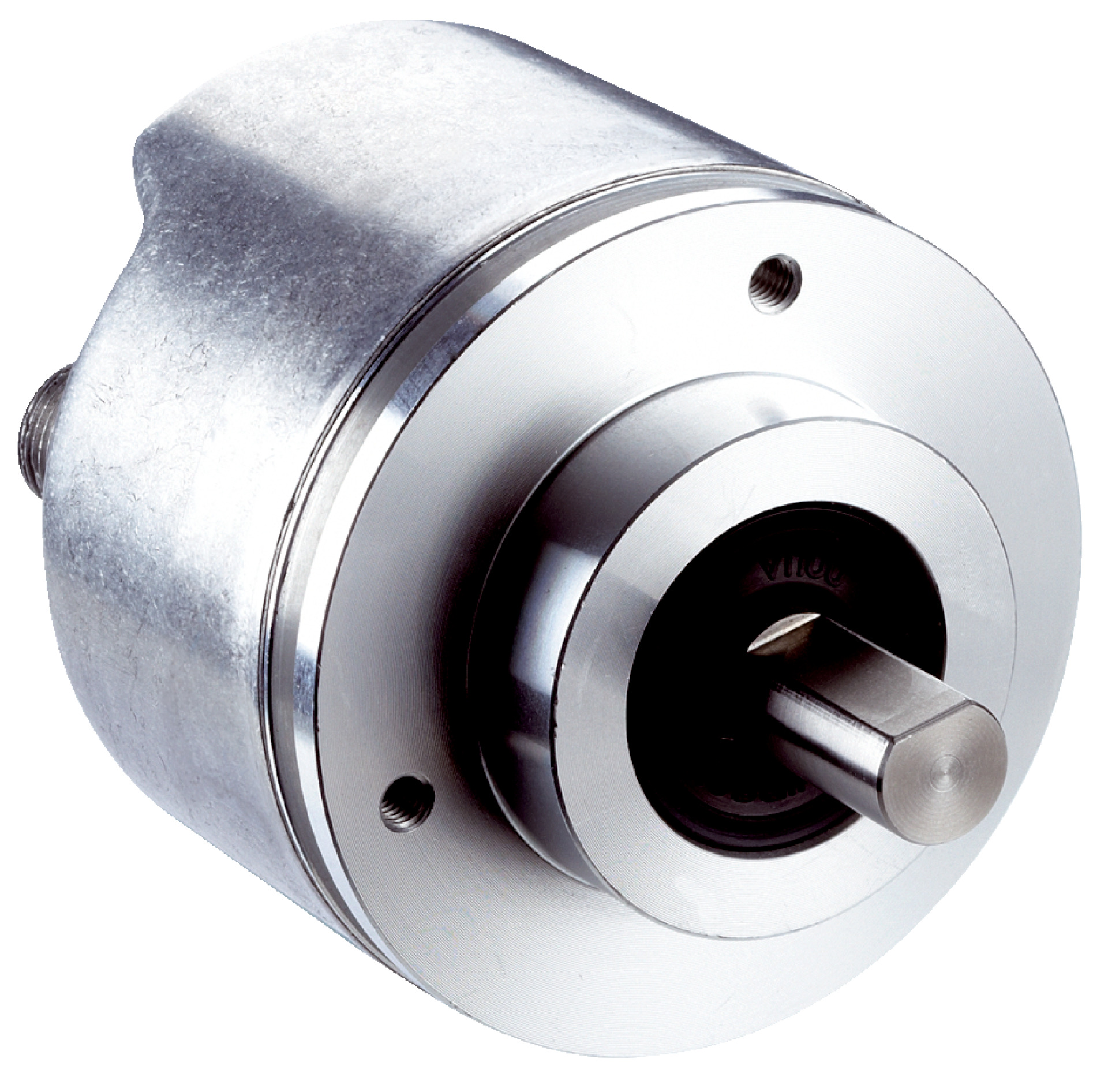

PROFIBUS DP Rotary Encoder | High Resolution 16,384 Steps/Rev | IP67 Enclosure | by SICK
The PROFIBUS DP Rotary Encoder is engineered for precision in industrial automation, featuring a high resolution of 16,384 steps per revolution and an IP67 rated enclosure for dust and water protection. With a robust stainless steel solid shaft and a wide operating temperature range from -30°C to +80°C, this encoder is perfect for robotics, conveyor systems, and factory automation, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PROFIBUS DP Rotary Encoder | High Resolution 16,384 Steps/Rev | IP67 Enclosure | by SICK
Brand: SICK
SKU: 1053341
Alternatively Known As: PROFIBUS DP Rotary Encoder, High Resolution Rotary Encoder, Industrial Position Sensor
Technical Specifications
- MTTFD: 60 years (EN ISO 13849-1)
- Max resolution: 16,384 steps/rev x 131,072 revolutions (14 bit x 17 bit)
- Error limits: 0.35° at room temperature
- Repeatability standard deviation: 0.15° at room temperature
- Communication interface: PROFIBUS DP (DPV0 / DPV1 / DPV2)
- Data transmission rate: ≤ 12 MBaud
- Initialization time: Approx. 1 second
- Parameterising data includes steps per revolution, counting direction, sampling rate, and speed output unit
- Diagnostics data available: max speed, power-on counter, operating hours, movement counters, voltage limits
- Connection type: 2x Male M12 5-pin axial connectors, 1x Female M12 5-pin axial connector
- Supply voltage: 10 to 32 V
- Power consumption: ≤ 1.5 W
- Reverse polarity protection: Yes
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm with flat
- Shaft length: 19 mm
- Shaft material: Stainless steel
- Flange and housing material: Aluminum
- Start up torque: 1 Ncm at +20°C
- Operating torque: 0.8 Ncm at +20°C
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: ≤ 6,000 min⁻¹
- Bearing lifetime: 3.0 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 (shaft and housing side)
- Permissible relative humidity: 95% (no condensation)
- Operating temperature range: -30°C to +80°C
- Storage temperature range: -40°C to +100°C
- Shock resistance: 80 g, 6 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 80mm x 60mm
- Weight: 0.28 kg
Key Features
- High resolution with 16,384 steps per revolution and 131,072 revolutions
- Robust solid shaft with stainless steel material and flat characteristic
- IP67 rated enclosure for protection against dust and water
- Wide operating temperature range from -30°C to +80°C
- Low power consumption of ≤ 1.5 W with reverse polarity protection
- Communication via PROFIBUS DP with DPV0 / DPV1 / DPV2 support
- Fast initialization time of approximately 1 second
- Durable mechanical design with aluminum housing and flange
- High resistance to shocks (80 g) and vibration (30 g)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with PROFIBUS DP systems and electrical safety standards to ensure proper connection and configuration.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and motion control systems
- Conveyor systems and packaging machinery
- Factory automation and process control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK A3M60A-S4PB014x17 rotary encoder is available for immediate purchase, ideal for industrial automation and control applications requiring high precision and reliability.
