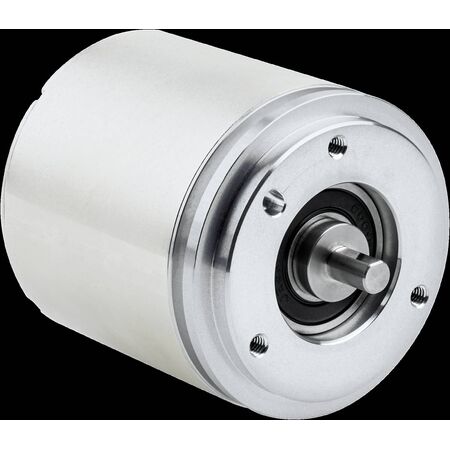

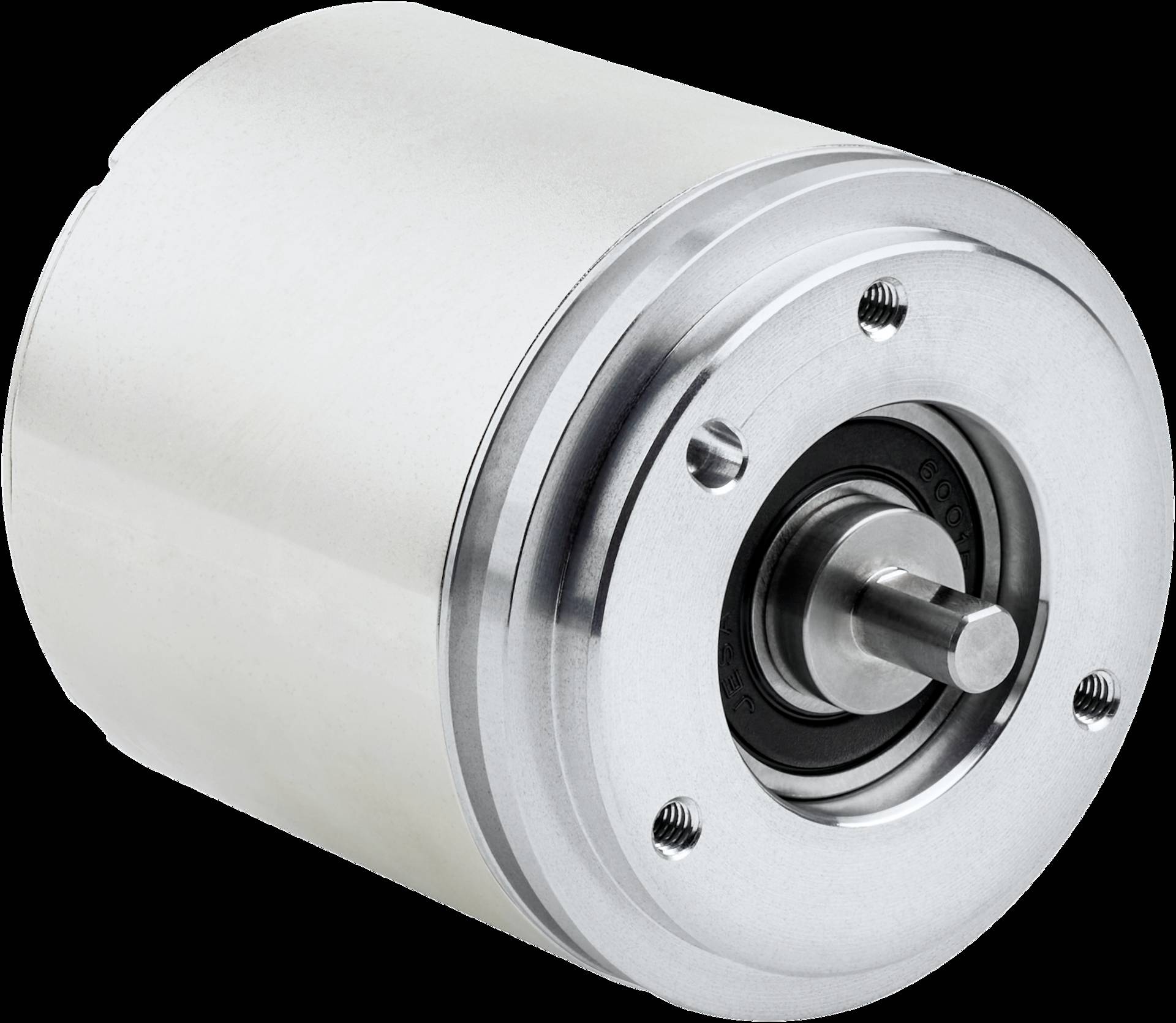

PROFINET Absolute Encoder ANS/ANM58 | 18-Bit Optical & 16-Bit Mechanical | Low Installation Depth | by SICK
The PROFINET Absolute Encoder ANS/ANM58 features an 18-bit optical singleturn and a 16-bit mechanical multiturn design, making it ideal for industrial automation and precise movement monitoring. With a low installation depth of just 39 mm, it easily integrates into tight spaces while providing accurate position feedback and diagnostic data for condition-based maintenance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PROFINET Absolute Encoder ANS/ANM58 | 18-Bit Optical & 16-Bit Mechanical | Low Installation Depth | by SICK
Brand: SICK
SKU: 1145910
Alternatively Known As: Absolute encoder 58mm, PROFINET absolute encoder, multiturn encoder, optical absolute encoder
Technical Specifications
- Multiturn version with 18-bit optical singleturn and 16-bit mechanical multiturn
- Solid shaft with servo flange mechanical design
- Shaft diameter: 6 mm with flat characteristic
- Shaft length: 10 mm
- Connection types: male and female connectors
- Direction of connection: axial
- Installation depth: 39 mm (radial type)
- PROFINET interface with Encoder Profile version 4.2 supporting IRT function
- Dimensions (H x L x W): 58mm x 39mm x 58mm
- Weight: 0.3 kg
Key Features
- Radial and axial type with shaft and flange variants
- Low installation depth of only 39 mm for radial type
- PROFINET interface with Encoder Profile version 4.2
- Parameterization via TIA Portal or SICK Engineering Tool
- Configuration and visualization of numerous diagnostic data
- Precise 18-bit optical singleturn measuring system
- Mechanical 16-bit multiturn stage for reliable data
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with PROFINET systems and electrical wiring standards to ensure proper integration and safety.
Applications
- Industrial automation for precise movement monitoring
- Process control systems requiring accurate position feedback
- Integration in machinery with tight installation spaces
- Condition-based system maintenance through diagnostic data
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Enables condition-based maintenance reducing unnecessary replacements and waste
- Supports efficient process control improving energy usage in industrial applications
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK ANS/ANM58 absolute encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
