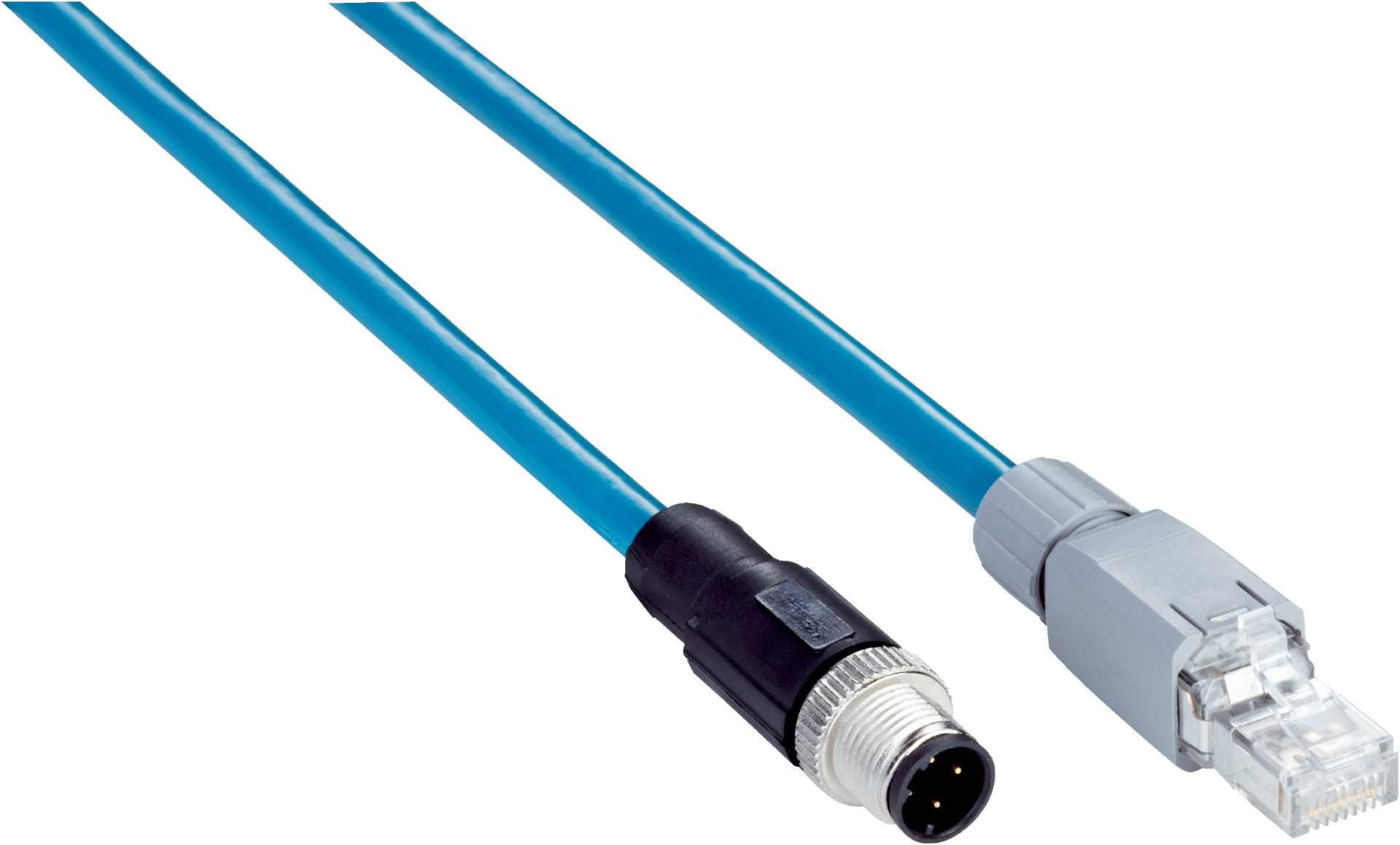

PROFINET Cable M12 to RJ45 | Shielded CAT5 | 3m Length | by SICK
The PROFINET Cable M12 to RJ45 is designed for reliable industrial Ethernet connections, featuring a shielded CAT5 construction for optimal data transmission. With a 3-meter length and durable zinc die-cast locking nut, it's perfect for industrial automation and control systems, ensuring compliance with safety standards and efficient data transfer in manufacturing environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, M12, 4-pin, straight, D-coded
- Connection type head B: Male connector, RJ45, 8-pin, straight
- Locking nut material: Zinc die-cast, nickel-plated
- Cable: 3 m, 4-wire, AWG26, PVC
- Jacket material: PVC
- Cable diameter: 6.4 mm
- Shielding: Shielded
- Reference voltage: 48 V AC / 60 V DC
- Signal type: Ethernet, PROFINET
- Transmission characteristics: CAT5
- Data transmission rate: ≤ 100 Mbit/s
- Dimensions (H x L x W): 10mm x 3000mm x 10mm
- Weight: 0.1 kg
Key Features
- Male connector, M12, 4-pin, straight, D-coded on head A
- Male connector, RJ45, 8-pin, straight on head B
- Shielded CAT5 cable for reliable data transmission
- 3 meter length with 4-wire, AWG26 PVC cable
- Zinc die-cast, nickel-plated locking nut for durability
- Supports Ethernet and PROFINET signal types
- Data transmission rate up to 100 Mbit/s
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation and control systems
- Factory Ethernet and PROFINET network connections
- Data transmission in manufacturing environments
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now

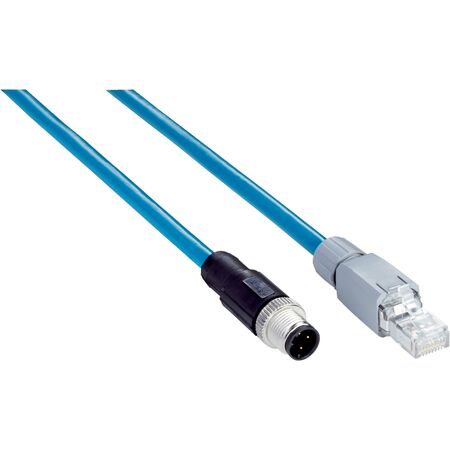

The SICK YM2D24-030EB2MRJA4 Ethernet PROFINET Cable is available for immediate purchase, ideal for industrial automation and network communication applications.
