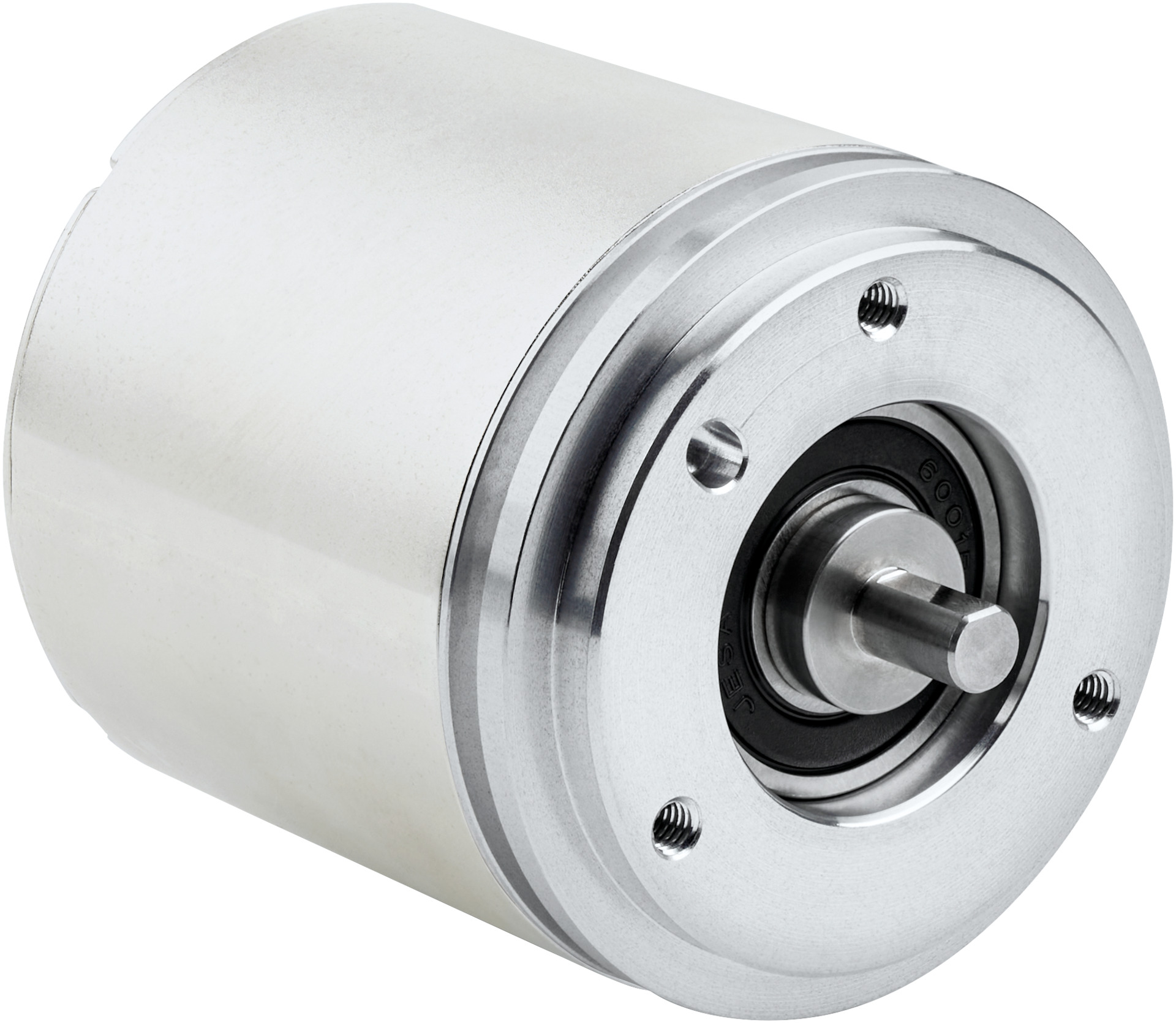

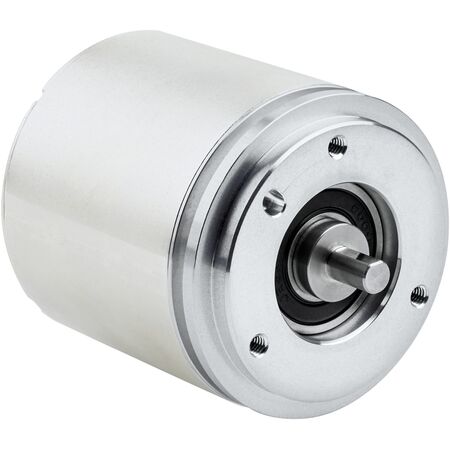

PROFINET Encoder ANM58B-SANNB0000103000XX018X16 | 18 Bit Resolution | IP67 Rated | by SICK
The PROFINET Encoder ANM58B-SANNB0000103000XX018X16 offers high-resolution measurements with 262,144 steps per revolution and a repeatability standard deviation of just 0.002°. Designed for industrial automation, this robust encoder features a stainless steel shaft and IP67 rated enclosure, making it perfect for precise position and speed measurement in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 165 years (EN ISO 13849-1)
- Max resolution: 18 bit x 16 bit (262,144 x 65,536 steps)
- Error limits G: 0.03°
- Repeatability standard deviation σr: 0.002°
- Communication interface: PROFINET Version 2.3
- Transmission medium: CAT-5e cable
- Initialization time: 5 s
- Cycle time: ≥ 1 ms
- Process data: Position, speed, encoder status
- Parameterising data: Steps per revolution, measuring range, preset, direction, speed filter, unit, round axis
- Diagnostics data: Temperature, max speed, power-on counter, operating hours, movement counters, configurable limits
- Connection type: Male and female M12, 4-pin axial connectors
- Supply voltage: 10 to 32 V
- Power consumption: ≤ 3 W
- Reverse polarity and short-circuit protection: Yes
- Mechanical design: Solid shaft, servo flange
- Shaft diameter: 6 mm with flat
- Shaft length: 10 mm
- Shaft material: Stainless steel
- Flange material: Aluminum
- Housing material: Zinc die-cast with copper-nickel coating
- Start up torque: 1 Ncm (+20 °C)
- Operating torque: 0.5 Ncm (+20 °C)
- Permissible shaft loading: 100 N radial, 50 N axial
- Operating speed: ≤ 9,000 min⁻¹
- Moment of inertia of rotor: 45 gcm²
- Bearing lifetime: 30 x 10^9 revolutions
- Angular acceleration: ≤ 300,000 rad/s²
- EMC: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 (IEC 60529)
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -40 °C to +85 °C
- Storage temperature range: -40 °C to +100 °C
- Shock resistance: 200 g, 6 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Operating height: ≤ 3,000 m
- Dimensions (H x L x W): 58mm x 100mm x 58mm
- Weight: 0.5 kg
Key Features
- High resolution with 262,144 steps per revolution (18 bit) and 65,536 revolutions (16 bit)
- Repeatability standard deviation of 0.002° for precise measurements
- Robust mechanical design with stainless steel shaft and zinc die-cast housing
- IP67 rated enclosure for protection against dust and water
- Supports PROFINET communication interface, version 2.3
- Comprehensive diagnostics including temperature, speed, and operating hours
- Reverse polarity and short-circuit protection included
- Operating temperature range from -40 °C to +85 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with PROFINET systems and electrical safety standards to ensure proper connection and configuration.
Applications
- Industrial automation for precise position and speed measurement
- Robotics requiring high resolution and repeatability
- Servo motor feedback systems
- Machine tool control and monitoring
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of ≤ 3 W supports energy-efficient operation
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK ANM58B-SANNB0000103000XX018X16 encoder is available for immediate purchase, ideal for industrial automation and precision measurement applications.
