PROFINET Ethernet Cable Assembly | M12 4-Pin Connector | 10m Shielded PUR | IP65/IP66K/IP67 | by SICK
The PROFINET Ethernet Cable Assembly is designed for robust industrial applications, featuring a male M12 4-pin connector and a 10m shielded PUR cable. Ideal for drag chain operations and environments with oils and lubricants, this cable supports Ethernet PROFINET with CAT5e transmission characteristics, ensuring reliable data transmission rates up to 0.1 Gbit/s. Built to withstand harsh conditions, it boasts an IP65/IP66K/IP67 enclosure rating and a wide operating temperature range from -40 °C to +85 °C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications

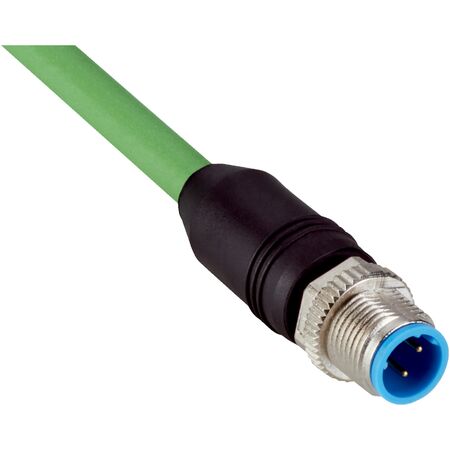

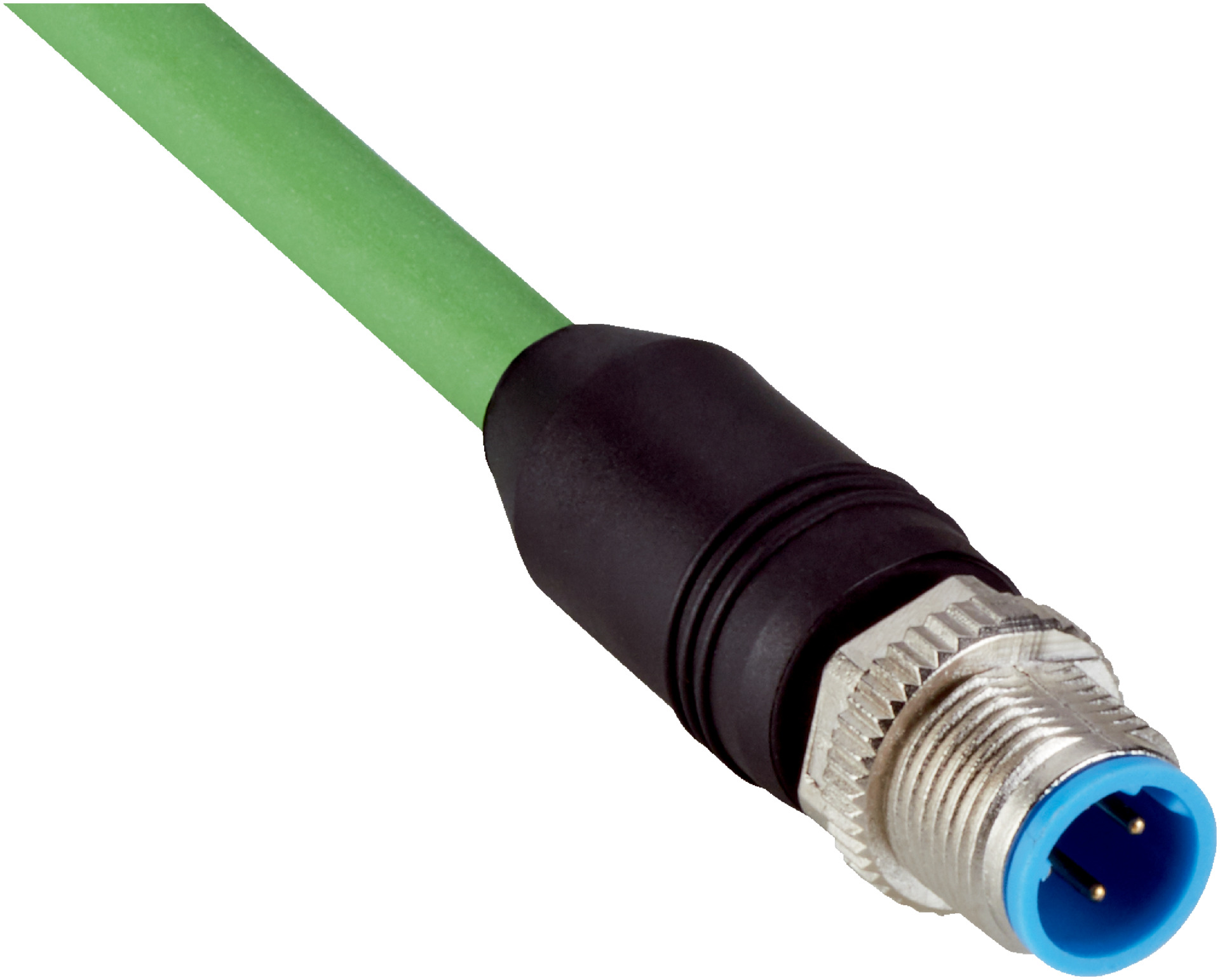

- Connection type head A: Male connector, M12, 4-pin, straight, D-coded
- Connection type head B: Flying leads with screw connection locking plug
- Connector material: TPU, black color
- Locking nut material: Zinc die-cast, nickel-plated
- Cable length: 10 m, 4-wire, PUR, halogen-free
- Cable diameter: 6.7 mm
- Conductor cross section: 0.34 mm²
- Shielding: Shielded
- Bending radius: Flexible use > 12 x cable diameter, Stationary position > 5 x cable diameter, Drag chain operation > 12 x cable diameter
- Operating temperature: Flexible use -30 °C to +70 °C, Stationary position -40 °C to +80 °C, Drag chain operation -30 °C to +70 °C, Head -25 °C to +85 °C
- Nominal voltage: 300 V AC
- Test voltage: 2000 V AC
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Traversing speed: 3.3 m/s
- Travelling distance: 5 m
- Acceleration: ≤ 2 m/s²
- Signal type: Ethernet, PROFINET
- Transmission characteristics: CAT5e
- Data transmission rate: ≤ 0.1 Gbit/s
- Enclosure rating: IP65 / IP66K / IP67
- Contamination rating: 3
- Insulation resistance: > 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant acc. to UL 1581 Section 1090, Section 1100 (FT2), IEC 60332-1-2 Std.
- Dimensions (H x L x W): 13mm x 10000mm x 13mm
- Weight: 0.2 kg
Key Features
- Male M12, 4-pin, straight, D-coded connector on head A
- Flying leads on head B with screw connection locking plug
- Shielded PUR halogen-free cable, 10 m length
- High bending radius suitable for flexible and drag chain use
- Operating temperature range from -40 °C to +85 °C depending on use
- Enclosure rating IP65 / IP66K / IP67 for harsh environments
- Supports Ethernet PROFINET with CAT5e transmission characteristics
- Data transmission rate up to 0.1 Gbit/s
- Flame retardant cable according to UL 1581 and IEC 60332-1-2 standards
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial Ethernet cabling and electrical safety standards.
Applications
- Drag chain operation in industrial automation
- Zones with oils and lubricants requiring robust Ethernet connections
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Halogen-free PUR cable reduces harmful emissions in case of fire
- Durable design minimizes replacement frequency and electronic waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK YM2D24-100PN1XLEAX Ethernet PROFINET Cable Assembly is available for immediate purchase, ideal for industrial automation and drag chain applications.
