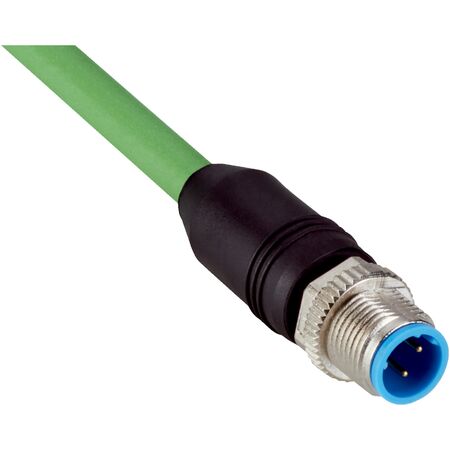

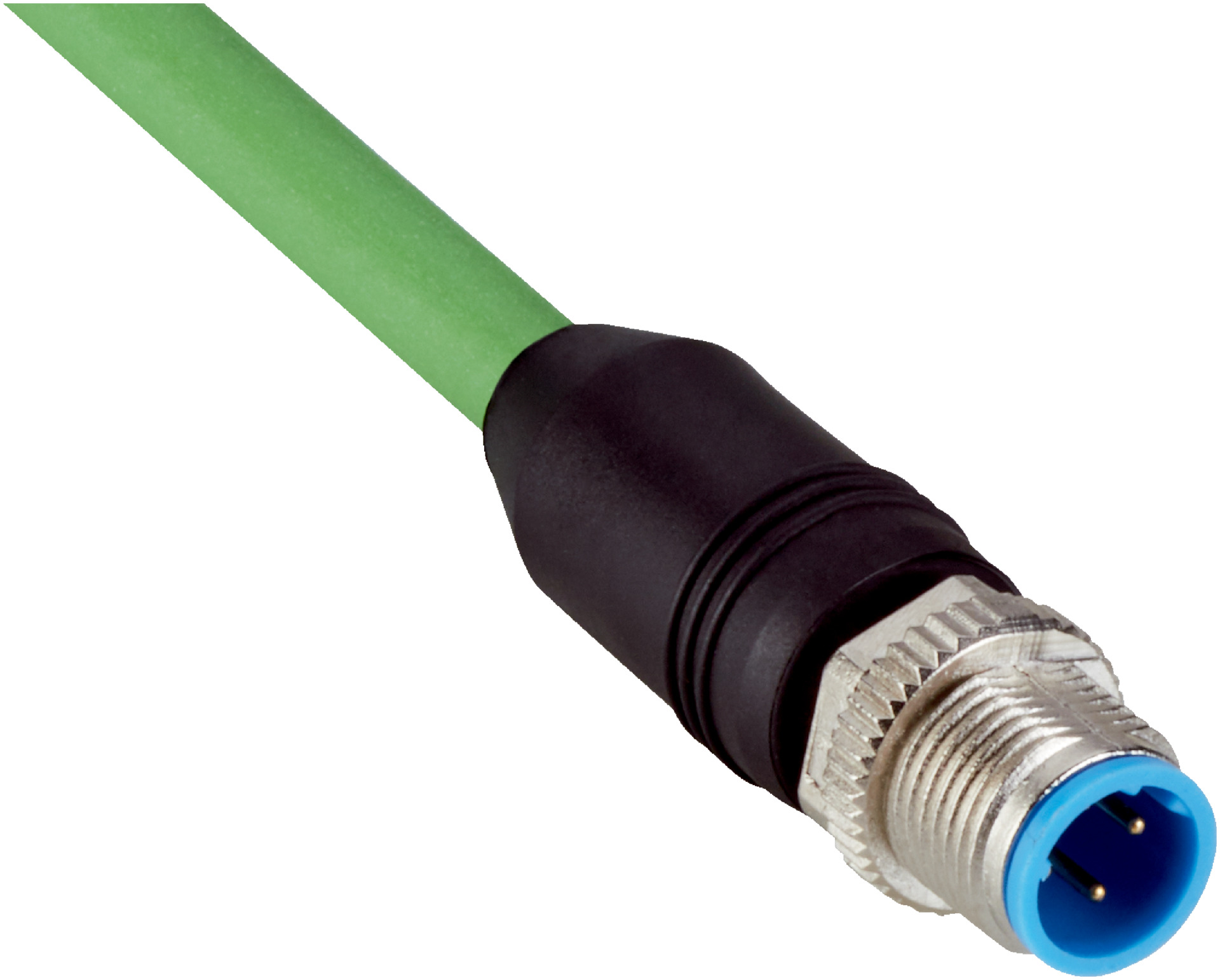

PROFINET Ethernet Cable Assembly | M12 4-Pin Connector | 5m Shielded PUR | IP65/IP66K/IP67 | by SICK
The PROFINET Ethernet Cable Assembly is designed for industrial automation, featuring a male M12 4-pin connector and a 5m shielded PUR halogen-free cable. With an IP65/IP66K/IP67 enclosure rating, it ensures reliable data transmission in harsh environments, making it ideal for drag chain operations and control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, M12, 4-pin, straight, D-coded
- Connection type head B: Flying leads with screw connection locking plug
- Connector material: TPU, black color
- Locking nut material: Zinc die-cast, nickel-plated
- Cable length: 5 m, 4-wire, PUR halogen-free jacket
- Cable diameter: 6.7 mm, conductor cross section 0.34 mm²
- Shielding: Shielded
- Bending radius: Flexible use > 12 x cable diameter, Stationary > 5 x cable diameter, Drag chain > 12 x cable diameter
- Operating temperature: Flexible use -30 °C to +70 °C, Stationary -40 °C to +80 °C, Drag chain -30 °C to +70 °C, Head -25 °C to +85 °C
- Nominal voltage: 300 V AC, Test voltage: 2000 V AC
- Current loading: 4 A
- Signal type: Ethernet, PROFINET
- Transmission characteristics: CAT5e
- Data transmission rate: ≤ 0.1 Gbit/s
- Enclosure rating: IP65 / IP66K / IP67
- Contamination rating: 3
- Insulation resistance: > 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant according to UL 1581 Section 1090, IEC 60332-1-2
- Dimensions (H x L x W): 20mm x 5000mm x 13mm
- Weight: 0.2 kg
Key Features
- Male M12, 4-pin, straight, D-coded connector on head A
- Flying leads on head B with screw connection locking plug
- Shielded PUR halogen-free cable with 5 m length
- High bending radius suitable for flexible use and drag chain operation
- Operating temperature range from -40 °C to +85 °C depending on use
- Enclosure rating IP65 / IP66K / IP67 for protection against dust and water
- Supports Ethernet PROFINET with CAT5e transmission characteristics
- Rated for 4 A current loading and 300 V AC nominal voltage
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician experienced with industrial Ethernet cabling to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation and control systems
- Drag chain operation in zones with oils and lubricants
- Data transmission in harsh environments requiring shielded cables
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces harmful emissions in case of fire
- Durable materials extend product life reducing waste
- Shielded cable minimizes electromagnetic interference improving system efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YM2D24-050PN1XLEAX Ethernet PROFINET Cable Assembly is available for immediate purchase, ideal for industrial automation and drag chain applications requiring reliable data transmission.
