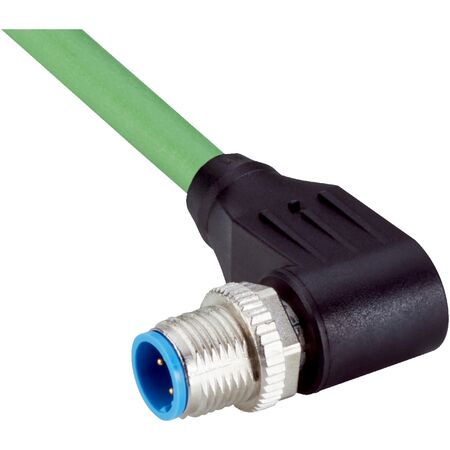

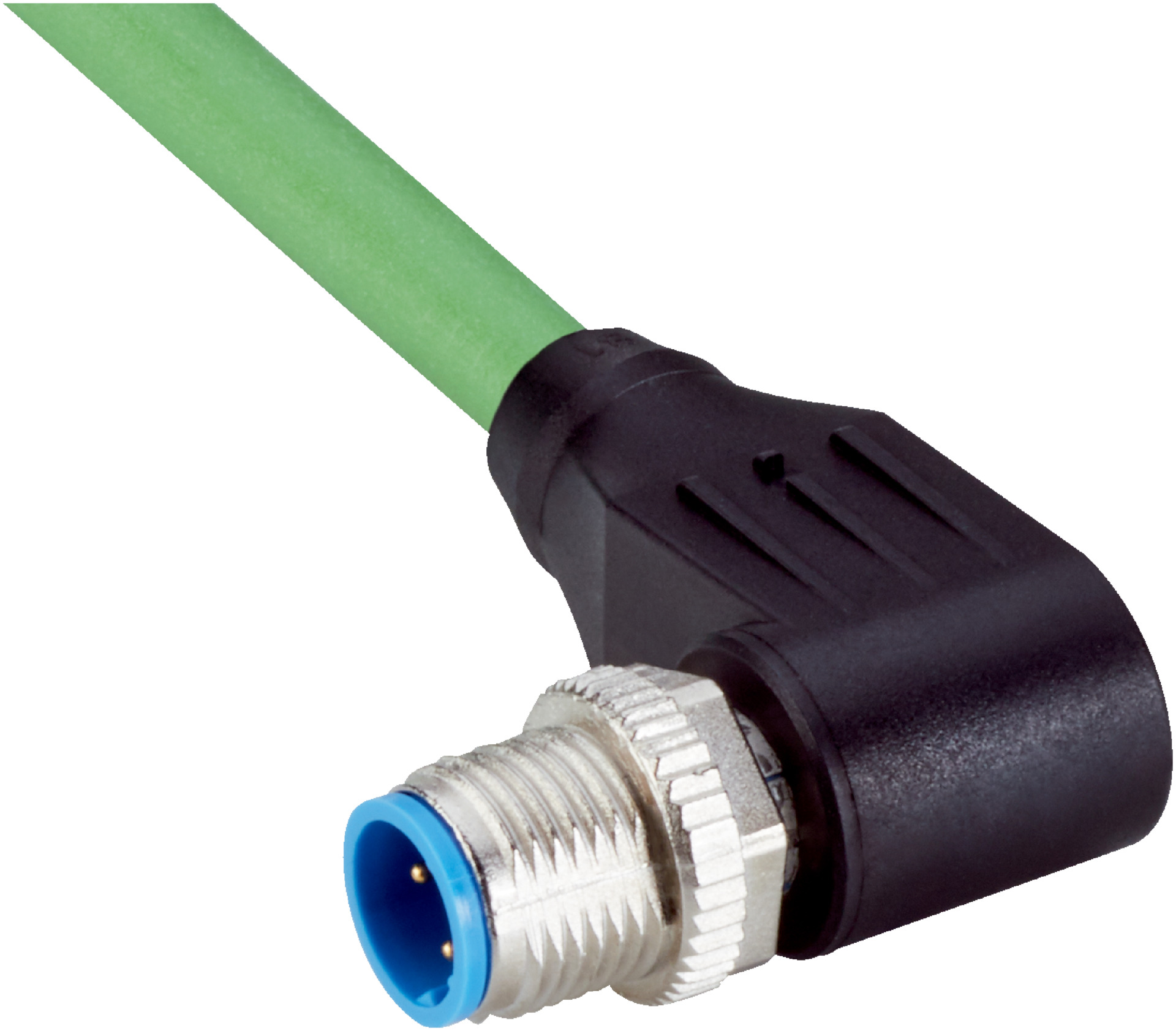

PROFINET Ethernet Cable Assembly | M12 4-Pin Male Connector | Shielded PUR Cable | IP65/IP66K/IP67 Rated | by SICK
The PROFINET Ethernet Cable Assembly is designed for robust industrial automation, featuring a male M12 4-pin angled connector and a shielded PUR cable that is halogen-free. With a length of 10 m and an IP65/IP66K/IP67 enclosure rating, it’s perfect for drag chain operations and environments exposed to oils and lubricants, ensuring reliable connectivity in harsh conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, M12, 4-pin, angled, D-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Cable length: 10 m
- Cable type: 4-wire, PUR, halogen-free
- Cable diameter: 6.7 mm
- Conductor cross section: 0.34 mm²
- Shielding: Shielded
- Bending radius flexible use: > 12 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Bending radius drag chain operation: > 12 x cable diameter
- Operating temperature flexible use: -30 °C to +70 °C
- Operating temperature stationary position: -40 °C to +80 °C
- Operating temperature drag chain operation: -30 °C to +70 °C
- Operating temperature head: -25 °C to +85 °C
- Nominal voltage cable: 300 V AC
- Test voltage cable: 2000 V AC
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Traversing speed: 3.3 m/s
- Travelling distance: 5 m
- Acceleration: ≤ 2 m/s²
- Signal type: Ethernet, PROFINET
- Transmission characteristics: CAT5e
- Data transmission rate: ≤ 0.1 Gbit/s
- Enclosure rating: IP65 / IP66K / IP67
- Contamination rating: 3
- Insulation resistance: > 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: < 30 mΩ
- Thermal resistance piping: Flame retardant acc. to UL 1581 Section 1090, Section 1100 (FT2), IEC 60332-1-2 Std.
- Dimensions (H x L x W): 13mm x 10000mm x 13mm
- Weight: 0.2 kg
Key Features
- Male connector M12, 4-pin, angled, D-coded
- Shielded PUR cable, halogen-free with 10 m length
- High bending radius suitable for flexible and drag chain use
- Enclosure rating IP65 / IP66K / IP67 for harsh environments
- Supports Ethernet PROFINET with CAT5e transmission characteristics
- Rated for 4 A current loading and 300 V AC nominal voltage
- Flame retardant cable according to UL 1581 and IEC 60332-1-2 standards
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Drag chain operation in industrial automation
- Zones with oils and lubricants requiring robust Ethernet connections
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free cable reduces toxic emissions in case of fire
- Durable design minimizes replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK YN2D24-100PN1XLEAX Ethernet PROFINET Cable Assembly is available for immediate purchase, ideal for industrial automation requiring reliable Ethernet connections in harsh environments.
