PROFINET Ethernet Cable Assembly | M12 D-Coded Connectors | 7m Length | IP65/IP66K/IP67 Rated | by SICK

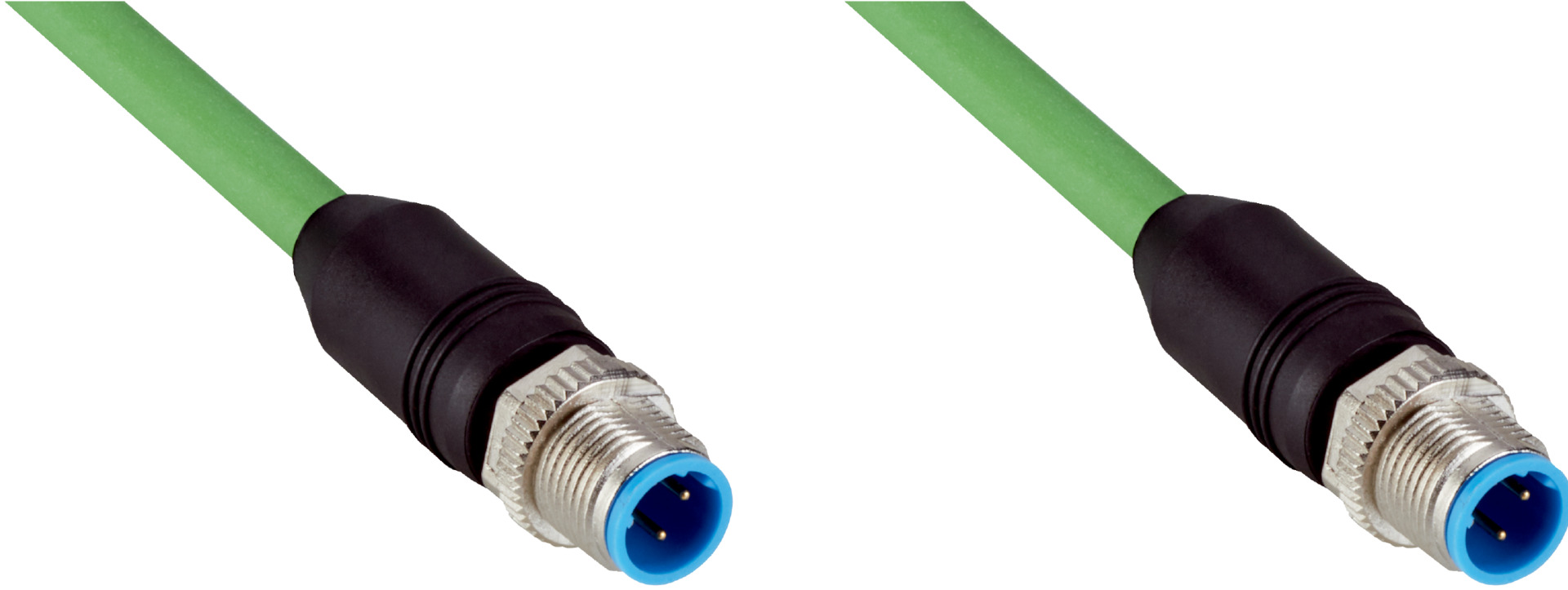

The PROFINET Ethernet Cable Assembly features male M12, 4-pin, straight, D-coded connectors on both ends, ensuring reliable connections for industrial automation networks. With a robust 7m shielded PUR halogen-free cable, it supports data transmission rates up to 0.1 Gbit/s and is rated IP65/IP66K/IP67 for superior environmental protection. Ideal for drag chain operations and zones with oils and lubricants, this cable is designed for durability and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, M12, 4-pin, straight, D-coded
- Connection type head B: Male connector, M12, 4-pin, straight, D-coded
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Cable length: 7 m
- Cable type: 4-wire, PUR, halogen-free
- Cable diameter: 6.7 mm
- Conductor cross section: 0.34 mm²
- Shielding: Shielded
- Bending radius flexible use: > 12 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Bending radius drag chain operation: > 12 x cable diameter
- Operating temperature flexible use: -30 °C to +70 °C
- Operating temperature stationary position: -40 °C to +80 °C
- Operating temperature drag chain operation: -30 °C to +70 °C
- Operating temperature head: -25 °C to +85 °C
- Nominal voltage cable: 300 V AC
- Test voltage cable: 2000 V AC
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Traversing speed: 3.3 m/s
- Travelling distance: 5 m
- Acceleration: ≤ 2 m/s²
- Signal type: Ethernet, PROFINET
- Transmission characteristics: CAT5e
- Data transmission rate: ≤ 0.1 Gbit/s
- Enclosure rating: IP65 / IP66K / IP67
- Contamination rating: 3
- Insulation resistance: > 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant acc. to UL 1581 Section 1090, Section 1100 (FT2), IEC 60332-1-2 Std.
- Dimensions (H x L x W): 13mm x 7000mm x 13mm
- Weight: 0.2 kg
Key Features
- Male M12, 4-pin, straight, D-coded connectors on both ends
- Shielded PUR halogen-free cable with 7 m length
- High bending radius suitable for flexible and stationary use
- IP65 / IP66K / IP67 rated for robust environmental protection
- Supports data transmission rates up to 0.1 Gbit/s
- Flame retardant cable according to UL 1581 and IEC 60332-1-2 standards
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation networks
- Drag chain operation in zones with oils and lubricants
- PROFINET Ethernet data transmission
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Halogen-free PUR jacket reduces harmful emissions in case of fire
- Durable design reduces need for frequent replacements, minimizing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK YM2D24-070PN1M2D24 PROFINET Ethernet Cable Assembly is available for immediate purchase, ideal for industrial automation and drag chain applications.
