PROFINET Ethernet Cable Assembly | M12 D-Coded Connectors | Shielded CAT5e | IP65/IP66K/IP67 Rated | by SICK

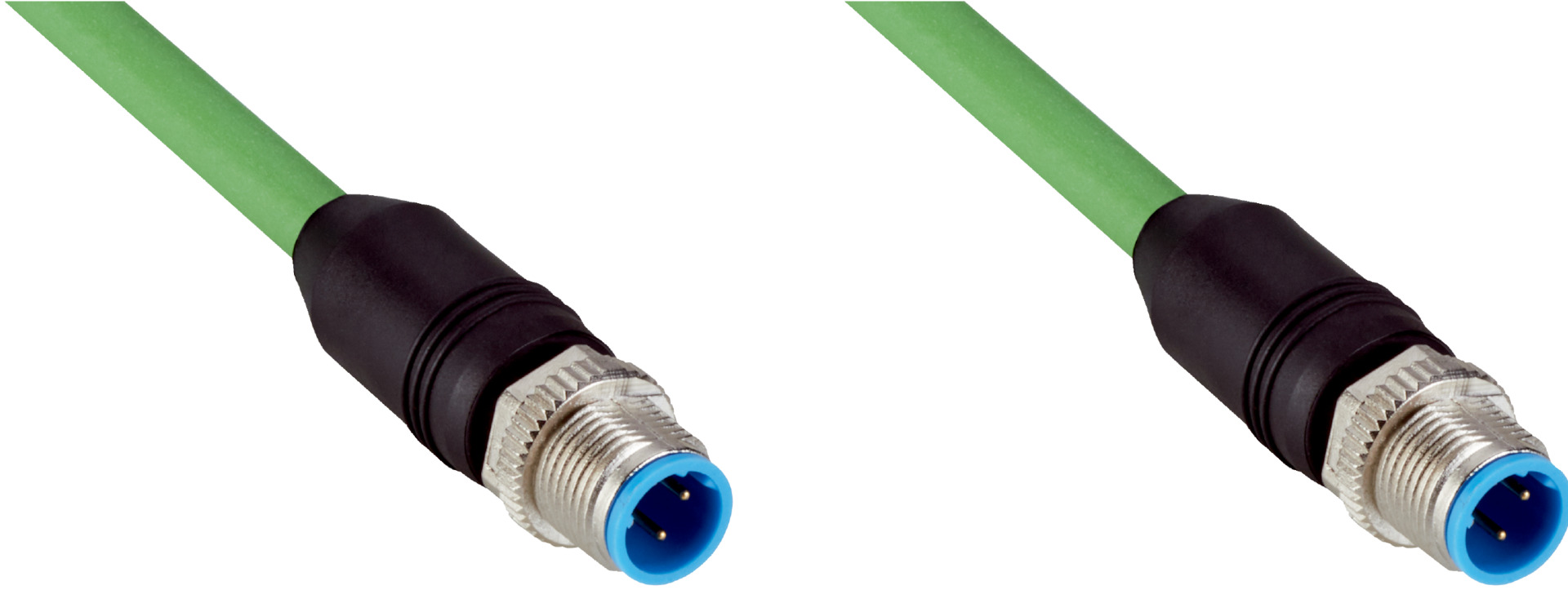

The PROFINET Ethernet Cable Assembly is designed for industrial automation networks, featuring male M12, 4-pin, straight, D-coded connectors on both ends. With a shielded CAT5e cable and a halogen-free PUR jacket, it ensures reliable data transmission and durability in harsh environments. Ideal for drag chain operations, this cable supports data rates up to 0.1 Gbit/s and is rated IP65/IP66K/IP67 for robust environmental protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, M12, 4-pin, straight, D-coded
- Connection type head B: Male connector, M12, 4-pin, straight, D-coded
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Cable length: 20 m
- Cable type: 4-wire, PUR, halogen-free
- Cable diameter: 6.7 mm
- Conductor cross section: 0.34 mm²
- Shielding: Shielded
- Bending radius flexible use: > 12 x cable diameter
- Nominal voltage: 300 V AC
- Test voltage: 2000 V AC
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Traversing speed: 3.3 m/s
- Travelling distance: 5 m
- Acceleration: ≤ 2 m/s²
- Signal type: Ethernet, PROFINET
- Transmission characteristics: CAT5e
- Data transmission rate: ≤ 0.1 Gbit/s
- Enclosure rating: IP65 / IP66K / IP67
- Operating temperature head: –25 °C to +85 °C
- Operating temperature flexible use: –30 °C to +70 °C
- Operating temperature stationary position: –40 °C to +80 °C
- Contamination rating: 3
- Insulation resistance: > 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant acc. to UL 1581 Section 1090, Section 1100 (FT2), IEC 60332-1-2 Std.
- Dimensions (H x L x W): 10mm x 6700mm x 6700mm
- Weight: 0.3 kg
Key Features
- Male M12, 4-pin, straight, D-coded connectors on both ends
- Shielded CAT5e cable for reliable Ethernet data transmission
- Halogen-free PUR jacket with green color for durability and safety
- High bending radius suitable for flexible and drag chain use
- IP65 / IP66K / IP67 rated for robust environmental protection
- Supports data transmission rates up to 0.1 Gbit/s
- Flame retardant cable according to UL 1581 and IEC 60332-1-2 standards
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial Ethernet cabling and electrical safety standards.
Applications
- Industrial automation networks
- Drag chain operation in zones with oils and lubricants
- PROFINET Ethernet communication
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free cable jacket reduces toxic emissions in case of fire
- Durable materials extend product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YM2D24-200PN1M2D24 Ethernet PROFINET Cable Assembly is available for immediate purchase, ideal for industrial automation and drag chain applications requiring robust and reliable Ethernet connectivity.
