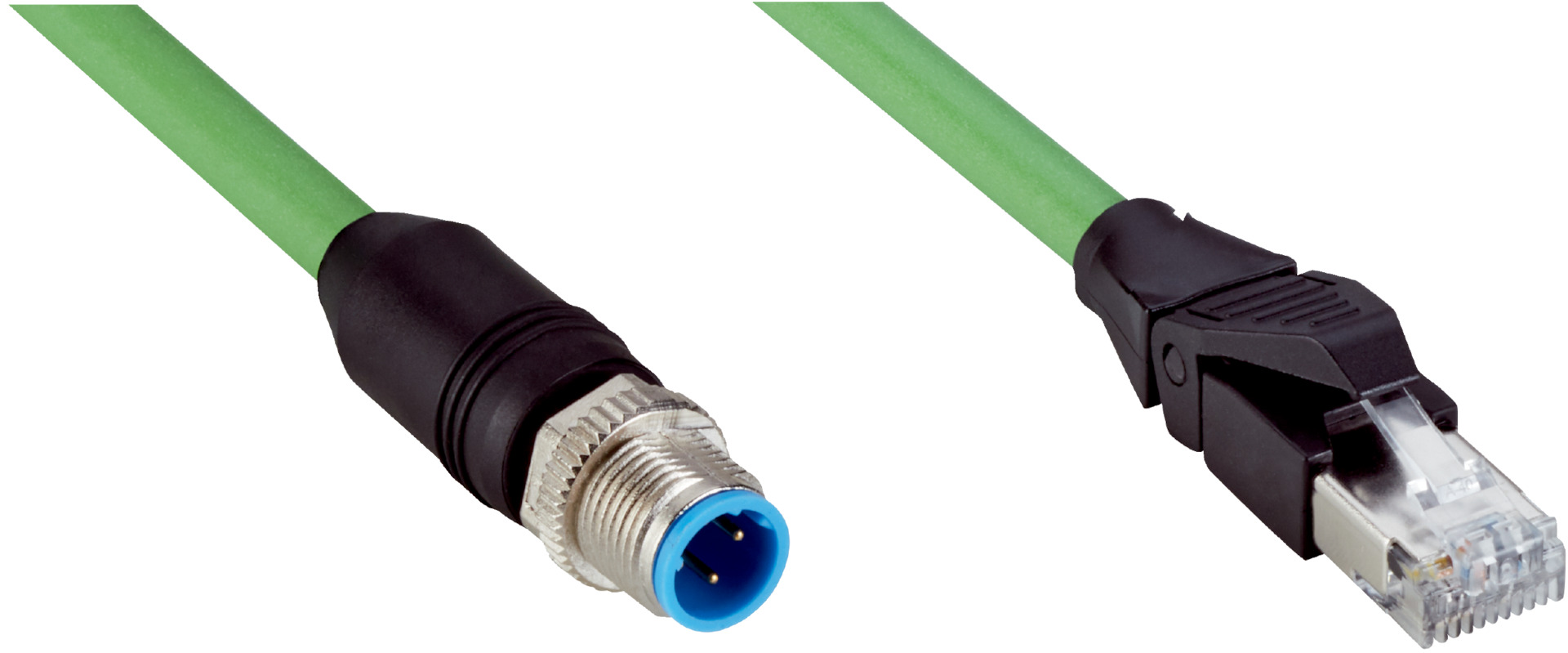

PROFINET Ethernet Cable Assembly | M12 to RJ45 | IP67 Rated | Shielded & Halogen-Free | by SICK
The PROFINET Ethernet Cable Assembly is designed for robust industrial automation, featuring a male M12 connector and RJ45 for reliable connections. With a shielded, halogen-free PUR jacket, it withstands harsh environments and supports data transmission rates up to 0.1 Gbit/s. Ideal for drag chain operations and areas exposed to oils and lubricants, this cable ensures durability and compliance with electrical standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, M12, 4-pin, straight, D-coded
- Connection type head B: Male connector, RJ45, 4-pin, straight
- Locking plug connector: Screw-on connection (M12), snap-in locking (RJ45)
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Tightening torque: 0.6 Nm
- Cable length: 30 m
- Cable type: 4-wire, PUR, halogen-free
- Cable diameter: 6.7 mm
- Conductor cross section: 0.34 mm²
- Shielding: Shielded
- Bending radius: Flexible use > 12 x cable diameter, Stationary position > 5 x cable diameter, Drag chain operation > 12 x cable diameter
- Operating temperature: Flexible use -30 °C to +70 °C, Stationary position -40 °C to +80 °C, Drag chain operation -30 °C to +70 °C, Head -25 °C to +85 °C
- Enclosure rating: IP67 (M12), IP20 (RJ45)
- Contamination rating: 3
- Insulation resistance: > 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant according to UL 1581 Section 1060 (FT1), Section 1061 (cable flame), Section 1080 (VW-1) / IEC 60332-1-2
- Signal type: Ethernet, PROFINET
- Transmission characteristics: CAT5e
- Data transmission rate: ≤ 0.1 Gbit/s
- Current loading: 1.5 A
- Rated impulse voltage: 1 kV
- Traversing speed: 3.3 m/s
- Travelling distance: 5 m
- Acceleration: ≤ 2 m/s²
- Bending cycles: 3,000,000
- Dimensions (H x L x W): 6.7mm x 30000mm x 13mm
- Weight: 0.2 kg
Key Features
- Male connector M12, 4-pin, straight, D-coded and Male connector RJ45, 4-pin, straight
- Screw-on connection (M12) and snap-in locking (RJ45)
- Shielded cable with PUR halogen-free jacket
- High bending radius suitable for flexible use and drag chain operation
- Operating temperature range from -40 °C to +85 °C depending on position
- IP67 rated enclosure for M12 connector and IP20 for RJ45 connector
- Supports Ethernet PROFINET with CAT5e transmission characteristics
- Data transmission rate up to 0.1 Gbit/s
- Flame retardant cable according to UL 1581 and IEC 60332-1-2 standards
Professional Installation Requirements
- Installation should be performed by a qualified professional to ensure proper connection and compliance with electrical standards.
Applications
- Drag chain operation in industrial automation
- Zones with oils and lubricants requiring robust Ethernet connections
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces harmful emissions in case of fire
- Durable and flame retardant materials increase product lifespan and reduce waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now

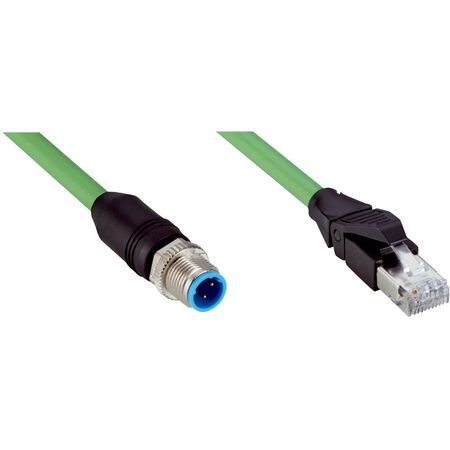

The SICK YM2D24-300PN1MRJA4 Ethernet PROFINET Cable Assembly is available for immediate purchase, ideal for industrial automation requiring reliable Ethernet connections in harsh environments.
