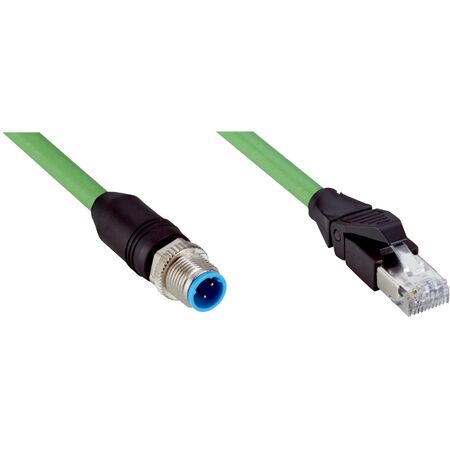

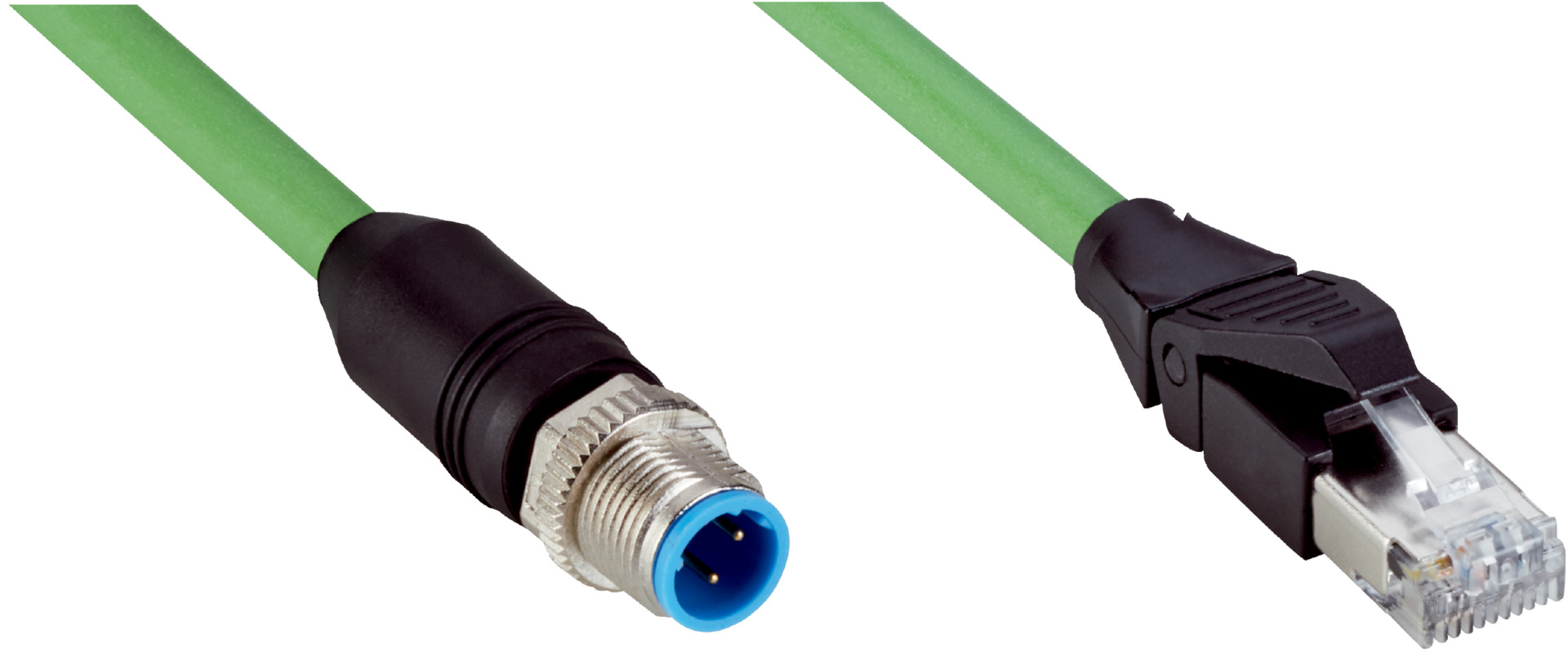

PROFINET Ethernet Cable Assembly | M12 to RJ45 | Shielded | 0.75m Length | by SICK
The PROFINET Ethernet Cable Assembly features a male M12 connector and a male RJ45 connector, designed for reliable data transmission in industrial automation. With a 0.75m halogen-free PUR cable and IP67 protection for the M12 connector, it’s perfect for harsh environments and drag chain operations, ensuring durability and performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, M12, 4-pin, straight, D-coded
- Connection type head B: Male connector, RJ45, 4-pin, straight
- Locking plug connector: Screw-on connection (M12), snap-in locking (RJ45)
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Tightening torque: 0.6 Nm
- Cable length: 0.75 m
- Cable type: 4-wire, PUR, halogen-free
- Cable diameter: 6.7 mm
- Conductor cross section: 0.34 mm²
- Shielding: Shielded
- Bending radius: Flexible use > 12 x cable diameter, Stationary position > 5 x cable diameter, Drag chain operation > 12 x cable diameter
- Operating temperature: Flexible use -30 °C to +70 °C, Stationary position -40 °C to +80 °C, Drag chain operation -30 °C to +70 °C, Head -25 °C to +85 °C
- Enclosure rating: IP67 (M12), IP20 (RJ45)
- Signal type: Ethernet, PROFINET
- Transmission characteristics: CAT5e
- Data transmission rate: ≤ 0.1 Gbit/s
- Rated impulse voltage: 1 kV
- Current loading: 1.5 A
- Traversing speed: 3.3 m/s
- Travelling distance: 5 m
- Acceleration: ≤ 2 m/s²
- Contamination rating: 3
- Insulation resistance: > 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: < 30 mΩ
- Thermal resistance: Flame retardant according to UL 1581 Section 1060 (FT1), Section 1061 (cable flame), Section 1080 (VW-1) / IEC 60332-1-2
- Dimensions (H x L x W): 6.7mm x 750mm x 13mm
- Weight: 0.1 kg
Key Features
- Male connector M12, 4-pin, straight, D-coded and Male connector RJ45, 4-pin, straight
- Screw-on connection (M12) and snap-in locking (RJ45)
- Cable is 0.75 m long, 4-wire, PUR, halogen-free with green jacket
- Shielded cable with 0.34 mm² conductor cross section
- High bending radius suitable for flexible use and drag chain operation
- Operating temperature range from -40 °C to +85 °C depending on use
- Enclosure rating IP67 for M12 connector and IP20 for RJ45 connector
- Supports Ethernet PROFINET with CAT5e transmission characteristics
- Data transmission rate up to 0.1 Gbit/s
- Rated impulse voltage 1 kV and current loading 1.5 A
- Flame retardant cable according to UL 1581 and IEC 60332-1-2 standards
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation and control systems
- Drag chain operation in zones with oils and lubricants
- Data transmission in harsh environments requiring IP67 protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces environmental impact during disposal
- Flame retardant materials enhance safety and reduce fire hazards
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YM2D24-C75PN1MRJA4 Ethernet PROFINET Cable Assembly is available for immediate purchase, ideal for industrial automation and drag chain applications.
