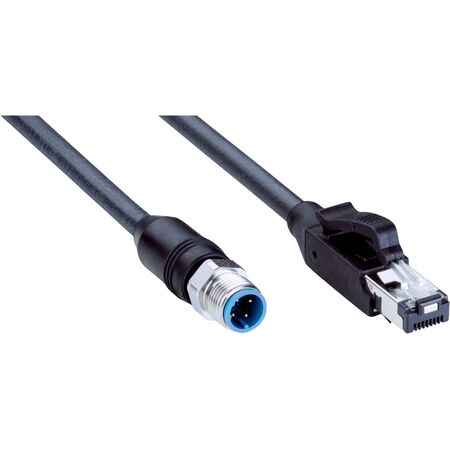

PROFINET Ethernet Cable Assembly | M12 to RJ45 | Shielded CAT5 | 10m Length | by SICK
The PROFINET Ethernet Cable Assembly is designed for robust industrial data transmission, featuring a male M12 connector and RJ45 connector. With a 10m length and shielded CAT5 construction, it’s perfect for outdoor applications exposed to oils and lubricants. Built for harsh environments, this cable ensures reliable connectivity with an IP67 rating on the M12 connector and operates effectively in temperatures from -40°C to +80°C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, M12, 4-pin, straight, D-coded
- Connection type head B: Male connector, RJ45, 4-pin, straight
- Connector color: Black
- Locking nut material: Stainless steel (V4A/1.4404)
- Tightening torque: 0.6 Nm
- Cable length: 10 m
- Cable type: 4-wire, CAT5, CAT5e, PUR, halogen-free
- Jacket color: Black
- Cable diameter: 6.7 mm
- Conductor cross section: 2 x 2 x 0.34 mm²
- Shielding: Shielded
- Reference voltage: ≤ 60 V
- Rated impulse voltage: 1 kV
- Signal type: Ethernet, PROFINET
- Transmission characteristics: CAT5
- Data transmission rate: ≤ 100 Mbit/s
- Enclosure rating: IP67 (M12), IP20 (RJ45)
- Operating temperature: Stationary position –40 °C to +80 °C, Head –25 °C to +85 °C
- Dimensions (H x L x W): 10mm x 10000mm x 10mm
- Weight: 0.2 kg
Key Features
- Male connector M12, 4-pin, straight, D-coded on head A
- Male connector RJ45, 4-pin, straight on head B
- Shielded CAT5 cable with 10 m length
- Cable jacket made of halogen-free PUR material
- IP67 rated enclosure on M12 connector, IP20 on RJ45 connector
- Operating temperature range: Stationary -40°C to +80°C, Head -25°C to +85°C
- Locking nut made of stainless steel (V4A/1.4404)
- Tightening torque 0.6 Nm
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and compliance with industrial standards.
Applications
- Industrial Ethernet and PROFINET data transmission
- Outdoor zones with exposure to oils and lubricants
- Seawater resistant environments requiring cold bending resistant cables
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Halogen-free PUR jacket reduces environmental impact during disposal
- Durable materials extend product life reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK YM2D34-100PN4MRJA4 Ethernet PROFINET Cable Assembly is available for immediate purchase, ideal for industrial Ethernet communication in harsh environments.
