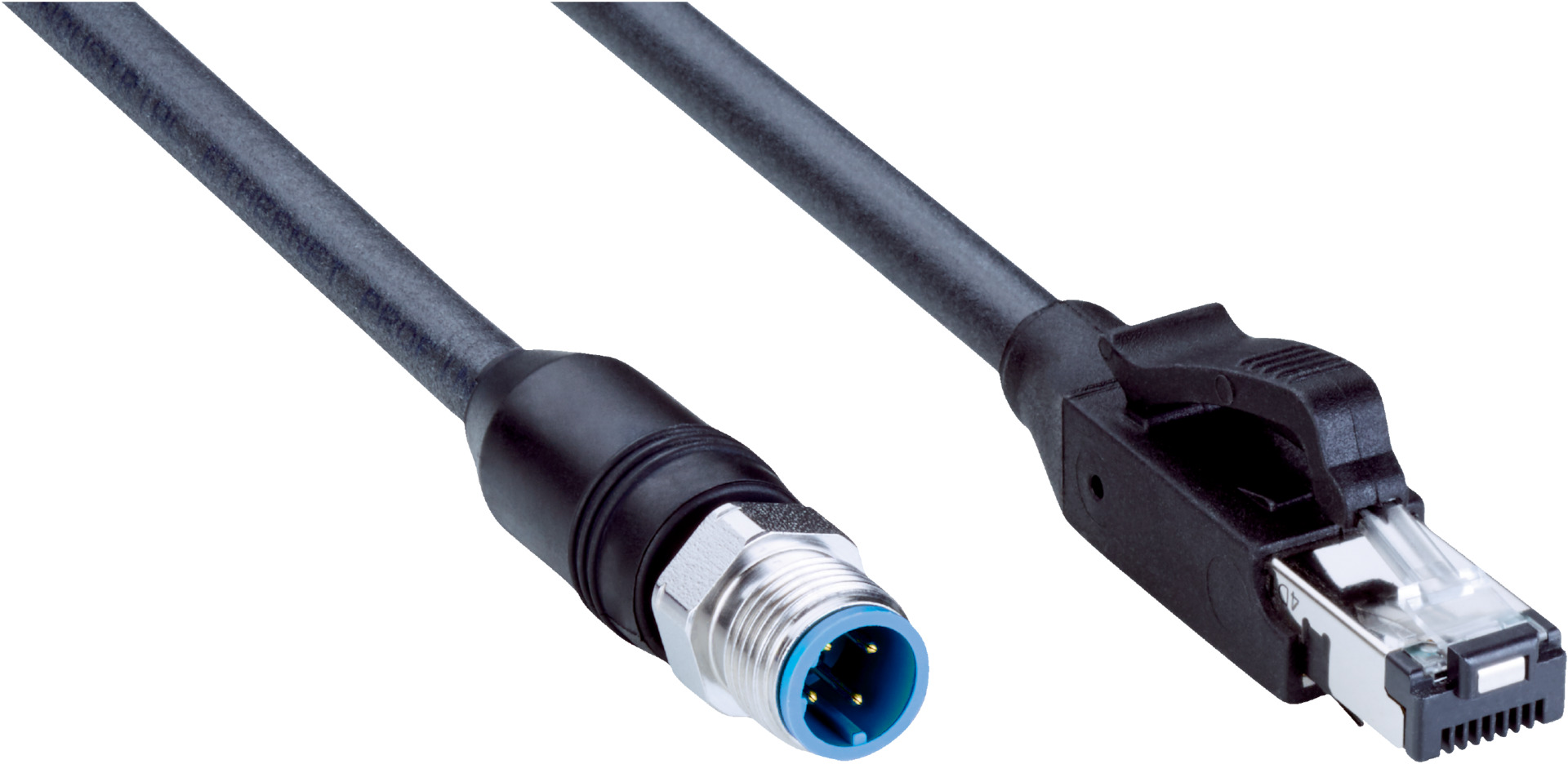

PROFINET Ethernet Cable Assembly | M12 to RJ45 | Shielded CAT5 | 30m Length | IP67 Rated | by SICK
The PROFINET Ethernet Cable Assembly is designed for robust industrial communication, featuring a male M12 connector and RJ45 connector for seamless connectivity. With a 30m length and IP67 rating on the M12 side, this cable is perfect for outdoor applications exposed to harsh environments, ensuring reliable data transmission up to 100 Mbit/s. Ideal for industrial Ethernet and PROFINET communication, it’s built to withstand extreme temperatures and environmental challenges.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, M12, 4-pin, straight, D-coded
- Connection type head B: Male connector, RJ45, 4-pin, straight
- Connector color: Black
- Locking nut material: Stainless steel (V4A/1.4404)
- Tightening torque: 0.6 Nm
- Cable length: 30 m
- Cable type: 4-wire, CAT5, CAT5e, PUR, halogen-free
- Cable diameter: 6.7 mm
- Conductor cross section: 2 x 2 x 0.34 mm²
- Shielding: Shielded
- Reference voltage: ≤ 60 V
- Rated impulse voltage: 1 kV
- Signal type: Ethernet, PROFINET
- Transmission characteristics: CAT5
- Data transmission rate: ≤ 100 Mbit/s
- Enclosure rating: IP67 (M12), IP20 (RJ45)
- Operating temperature: Stationary -40 °C to +80 °C, Head -25 °C to +85 °C
- Dimensions (H x L x W): 7mm x 6700mm x 6700mm
- Weight: 0.2 kg
Key Features
- Male connector M12, 4-pin, straight, D-coded on head A
- Male connector RJ45, 4-pin, straight on head B
- Shielded CAT5 cable with 30 m length
- Cable jacket made of halogen-free PUR material
- IP67 rated enclosure on M12 connector, IP20 on RJ45 connector
- Operating temperature range: Stationary -40°C to +80°C, Head -25°C to +85°C
- Locking nut made of stainless steel (V4A/1.4404)
- Data transmission rate up to 100 Mbit/s
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial Ethernet cabling and connector standards to ensure proper sealing and electrical performance.
Applications
- Industrial Ethernet and PROFINET communication
- Outdoor zones with exposure to oils and lubricants
- Seawater resistant environments
- Cold bending resistant applications
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Halogen-free PUR jacket reduces environmental impact during disposal
- Durable materials extend product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now

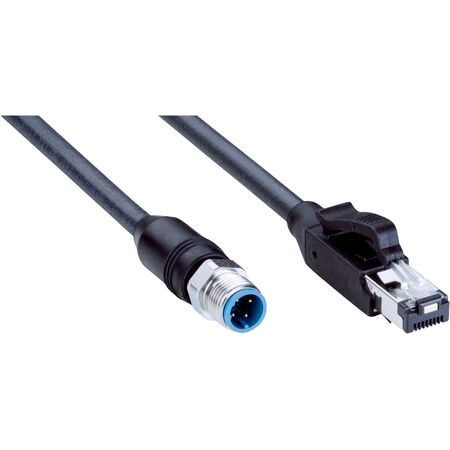

The SICK YM2D34-300PN4MRJA4 Ethernet PROFINET Cable Assembly is available for immediate purchase, ideal for industrial communication networks requiring robust and reliable outdoor cabling.
