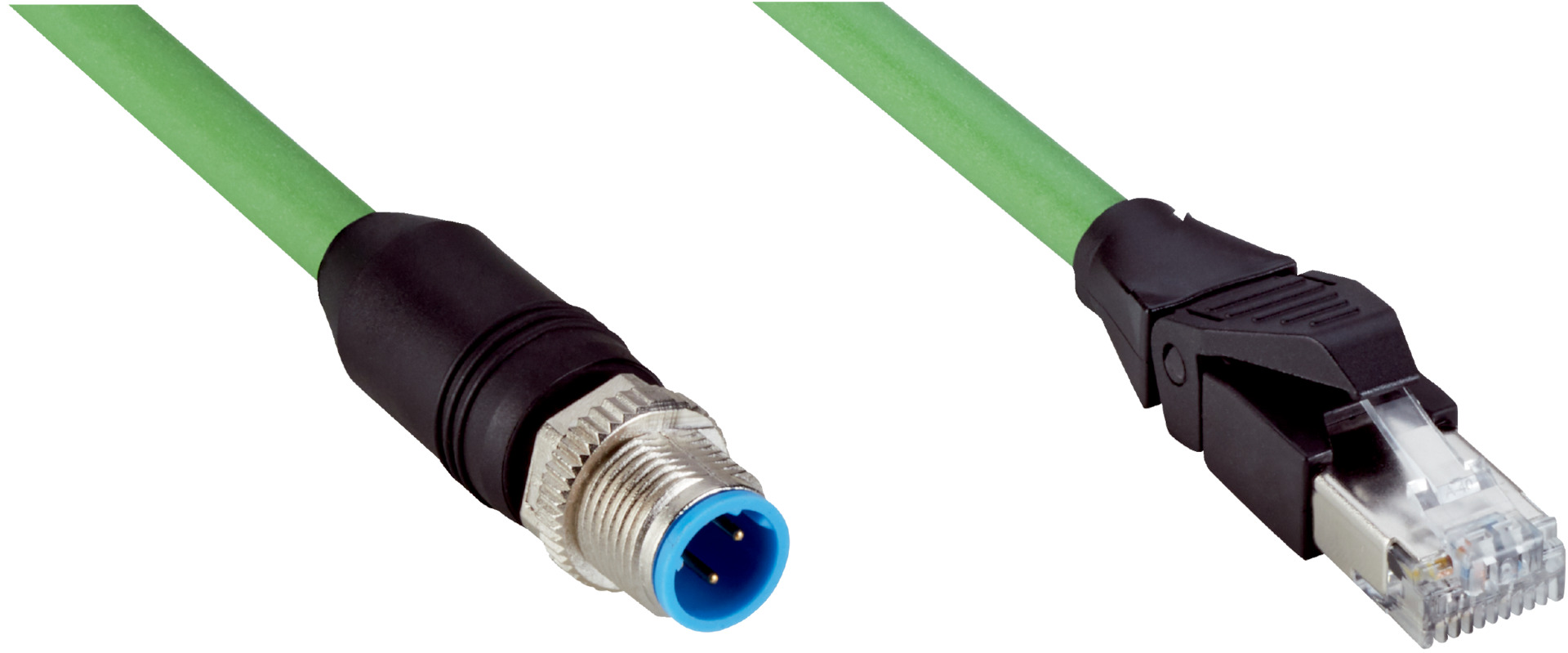

PROFINET Ethernet Cable Assembly | M12 to RJ45 | Shielded & Halogen-Free | IP67 Rated | by SICK
The PROFINET Ethernet Cable Assembly features a robust M12 to RJ45 connection, designed for industrial automation and harsh environments. With a shielded, halogen-free PUR jacket and an IP67 rating for the M12 connector, this cable ensures reliable data transmission up to 0.1 Gbit/s. Ideal for drag chain operations and areas exposed to oils and lubricants, it offers high flexibility and durability for demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, M12, 4-pin, straight, D-coded
- Connection type head B: Male connector, RJ45, 4-pin, straight
- Locking plug connector: Screw-on connection (M12), snap-in locking (RJ45)
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Cable length: 1 m
- Cable type: 4-wire, PUR, halogen-free
- Cable diameter: 6.7 mm
- Conductor cross section: 0.34 mm²
- Shielding: Shielded
- Bending radius: Flexible use > 12 x cable diameter, Stationary position > 5 x cable diameter, Drag chain operation > 12 x cable diameter
- Operating temperature: Flexible use -30°C to +70°C, Stationary position -40°C to +80°C, Drag chain operation -30°C to +70°C, Head -25°C to +85°C
- Enclosure rating: IP67 (M12), IP20 (RJ45)
- Current loading: 1.5 A
- Rated impulse voltage: 1 kV
- Signal type: Ethernet, PROFINET
- Transmission characteristics: CAT5e
- Data transmission rate: ≤ 0.1 Gbit/s
- Bending cycles: 3,000,000
- Contamination rating: 3
- Insulation resistance: > 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant according to UL 1581 Section 1060 (FT1), Section 1061 (cable flame), Section 1080 (VW-1) / IEC 60332-1-2
- Dimensions (H x L x W): 6.7mm x 1000mm x 13mm
- Weight: 0.1 kg
Key Features
- Male connector M12, 4-pin, straight, D-coded
- Male connector RJ45, 4-pin, straight
- Screw-on connection (M12) and snap-in locking (RJ45)
- Shielded cable with PUR halogen-free jacket
- High bending radius suitable for flexible and drag chain use
- Operating temperature range from -40°C to +85°C depending on position
- IP67 rated enclosure for M12 connector and IP20 for RJ45
- Supports Ethernet PROFINET with CAT5e transmission characteristics
- Data transmission rate up to 0.1 Gbit/s
- Flame retardant cable according to UL 1581 and IEC 60332-1-2
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and compliance with safety standards.
Applications
- Drag chain operation in industrial automation
- Zones with oils and lubricants requiring robust Ethernet connections
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Halogen-free PUR jacket reduces harmful emissions in case of fire
- Durable design extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now

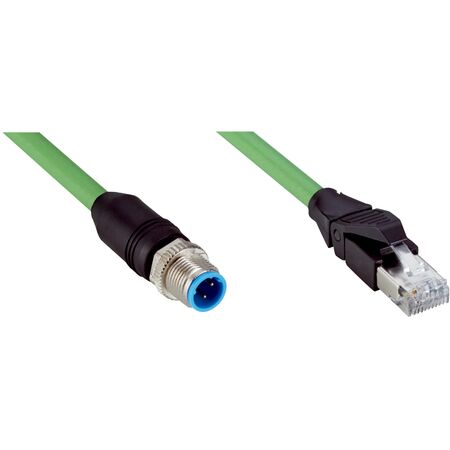

The SICK YM2D24-010PN1MRJA4 Ethernet PROFINET Cable Assembly is available for immediate purchase, ideal for industrial automation and harsh environment applications.
