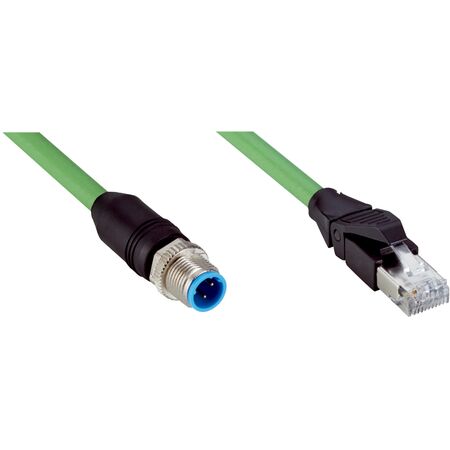

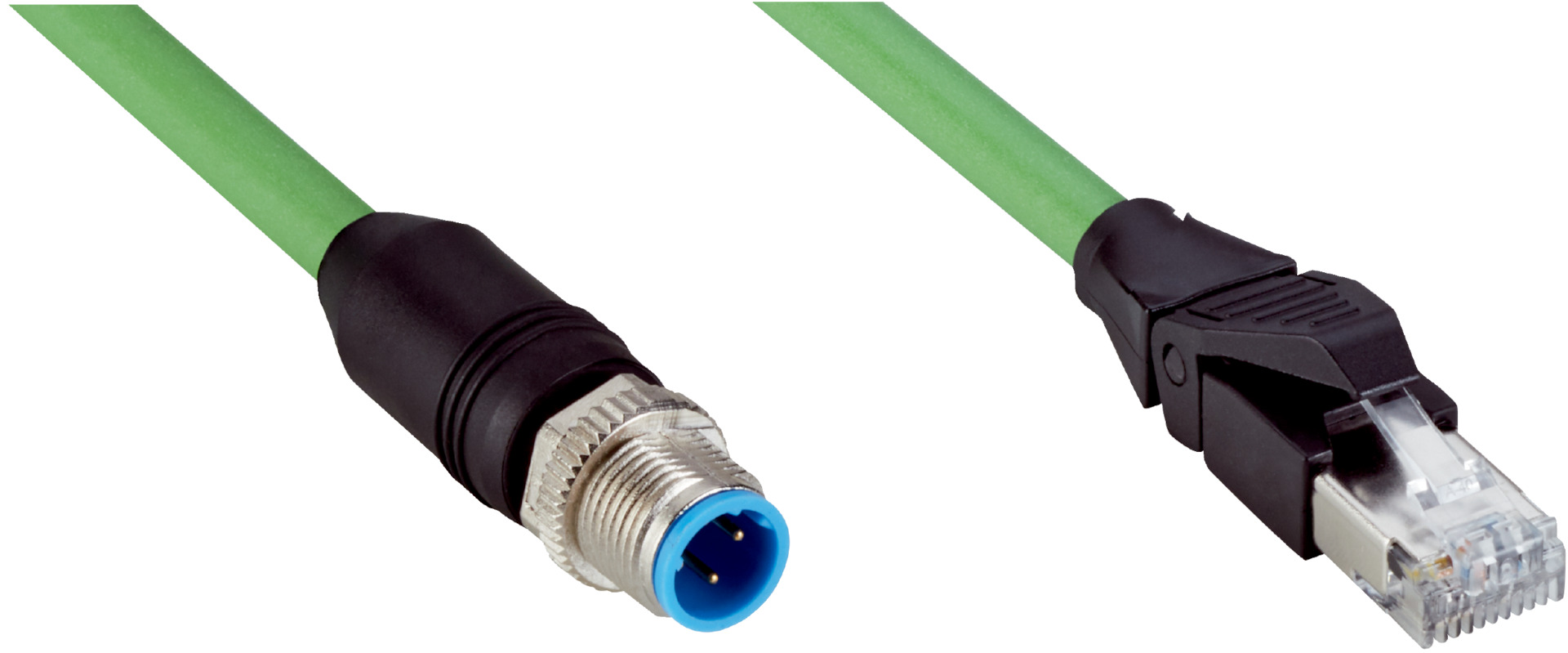

PROFINET Ethernet Cable Assembly | M12 to RJ45 | Shielded & Halogen-Free | IP67 Rated | by SICK
The PROFINET Ethernet Cable Assembly is designed for industrial automation, featuring a male M12 connector and RJ45 for reliable data transmission. With a shielded, halogen-free cable and an IP67 rating, it excels in harsh environments, ensuring durability and performance in drag chain operations. Ideal for control systems, this cable supports CAT5e transmission characteristics and operates in extreme temperatures from -40 °C to +85 °C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, M12, 4-pin, straight, D-coded
- Connection type head B: Male connector, RJ45, 4-pin, straight
- Locking plug connector: Screw-on connection (M12), snap-in locking (RJ45)
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Cable length: 7 m
- Cable type: 4-wire, PUR, halogen-free
- Cable diameter: 6.7 mm
- Conductor cross section: 0.34 mm²
- Shielding: Shielded
- Bending radius: Flexible use > 12 x cable diameter, Stationary position > 5 x cable diameter, Drag chain operation > 12 x cable diameter
- Temperature range: Flexible use -30 °C to +70 °C, Stationary -40 °C to +80 °C, Drag chain -30 °C to +70 °C, Head -25 °C to +85 °C
- Nominal voltage: 300 V AC
- Test voltage: 2000 V AC
- Rated impulse voltage: 1 kV
- Current loading: 1.5 A
- Traversing speed: 3.3 m/s
- Travelling distance: 5 m
- Acceleration: ≤ 2 m/s²
- Signal type: Ethernet, PROFINET
- Transmission characteristics: CAT5e
- Data transmission rate: ≤ 0.1 Gbit/s
- Enclosure rating: IP67 (M12), IP20 (RJ45)
- Contamination rating: 3
- Insulation resistance: > 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant acc. to UL 1581 Section 1090, Section 1100 (FT2), IEC 60332-1-2 Std.
- Dimensions (H x L x W): 6.7mm x 7000mm x 13mm
- Weight: 0.2 kg
Key Features
- Male connector M12, 4-pin, straight, D-coded and Male connector RJ45, 4-pin, straight
- Screw-on connection (M12) and snap-in locking (RJ45)
- Shielded cable with PUR halogen-free jacket
- High bending radius suitable for flexible use and drag chain operation
- Operating temperature range from -40 °C to +85 °C depending on position
- IP67 rated enclosure for M12 connector ensuring dust and water resistance
- Supports Ethernet PROFINET with CAT5e transmission characteristics
- Data transmission rate up to 0.1 Gbit/s
- Flame retardant cable according to UL 1581 and IEC 60332-1-2 standards
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and compliance with electrical safety standards.
Applications
- Industrial automation and control systems
- Drag chain operation in zones with oils and lubricants
- Data transmission in harsh environments requiring IP67 protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Halogen-free PUR jacket reduces harmful emissions in case of fire
- Durable design reduces need for frequent replacements, minimizing waste
Warranty Information
Warranty terms as provided by SICK, typically 1-2 years against manufacturing defects.
Available Now
The SICK YM2D24-070PN1MRJA4 Ethernet PROFINET Cable Assembly is available for immediate purchase, ideal for industrial automation and drag chain applications.
