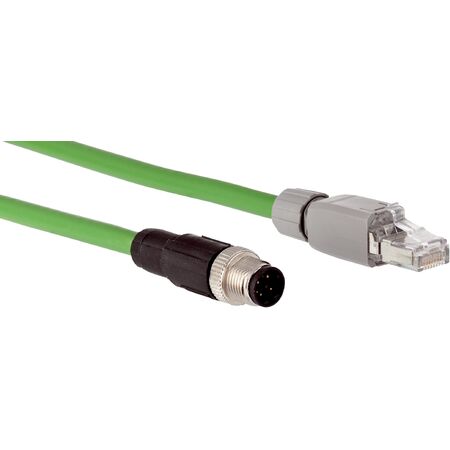

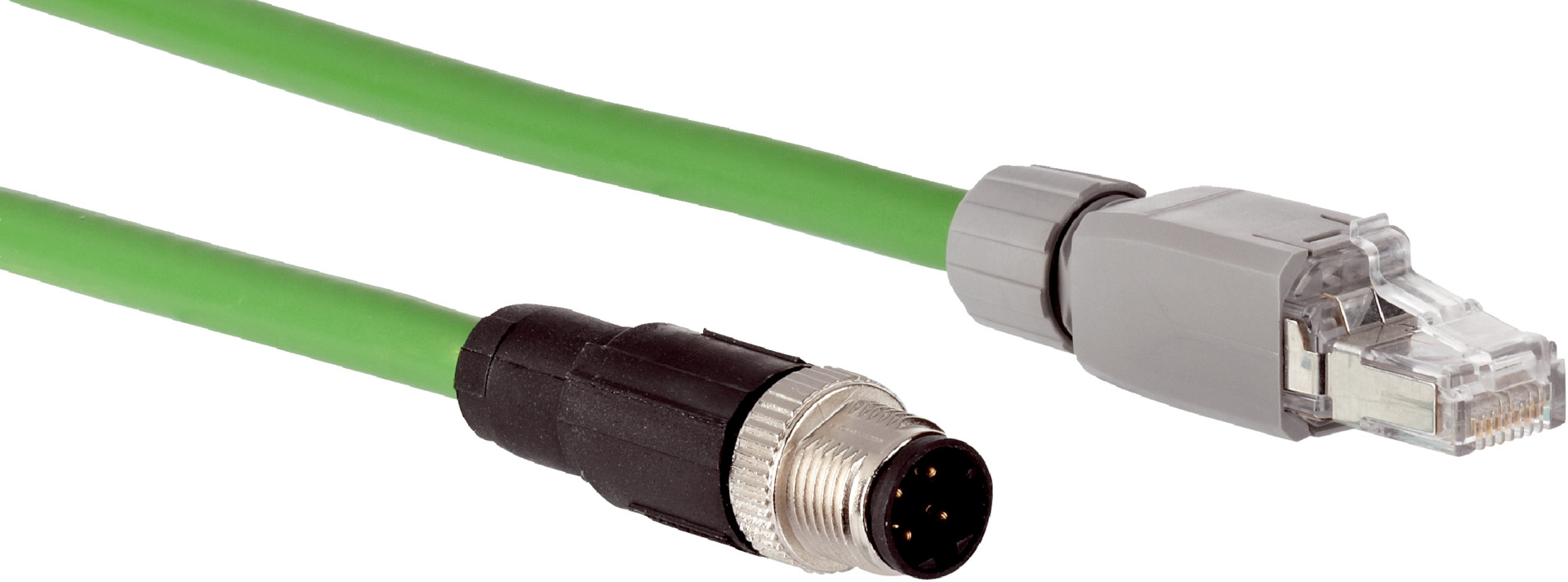

PROFINET Ethernet Cable Connector | M12 to RJ45 | IP67 Rated | High Torsion Resistance | by SICK
The PROFINET Ethernet Cable Connector is designed for robust industrial applications, featuring a male M12 connector and an RJ45 connector for reliable Ethernet communication. With a shielded cable and a halogen-free PUR jacket, it ensures durability in environments with oils and lubricants. Ideal for industrial automation and robotics, this connector operates effectively in temperatures ranging from -40 °C to +80 °C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, M12, 4-pin, straight, D-coded
- Connection type head B: Male connector, RJ45, 8-pin, straight
- Connector color: Black
- Locking nut material: Zinc die-cast, nickel-plated
- Tightening torque: 0.4 Nm
- Cable length: 10 m
- Cable type: 4-wire, CAT5, CAT5e, PUR, halogen-free
- Jacket material: PUR, halogen-free
- Jacket color: Green
- Cable diameter: 6.5 mm
- Conductor cross section: 4 x 0.34 mm²
- Shielding: Shielded
- Bending radius: > 5 x cable diameter for flexible use and stationary position
- Operating temperature: -40 °C to +80 °C (flexible and stationary), Head: -25 °C to +80 °C
- Reference voltage: ≤ 50 V
- Current loading: 1 A
- Signal type: Ethernet, PROFINET
- Torsion force: ± 180°
- Torsion cycles: 1,000,000
- Enclosure rating: IP67 (M12), IP20 (RJ45)
- Dimensions (H x L x W): 10mm x 10000mm x 10mm
- Weight: 0.2 kg
Key Features
- Male connector M12, 4-pin, straight, D-coded
- Male connector RJ45, 8-pin, straight
- Shielded cable with PUR halogen-free jacket
- High torsion resistance with ±180° torsion force and 1,000,000 torsion cycles
- IP67 rated at M12 connector for robust environmental protection
- Operating temperature range from -40 °C to +80 °C for flexible and stationary use
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation and robotics
- Ethernet and PROFINET communication in zones with oils and lubricants
- Robotic systems requiring durable and shielded connectors
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces environmental impact and improves safety in case of fire
- Durable materials extend product life and reduce waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK SSL-2J04-G10MR Ethernet PROFINET Cable Connector is available for immediate purchase, ideal for industrial automation and robotic applications requiring reliable Ethernet connections.
