PROFINET Ethernet Cable M12 | 20m PUR Halogen-Free | IP65/IP66K/IP67 Rated | by SICK

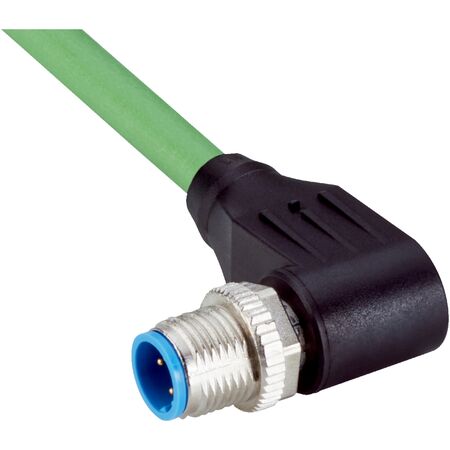

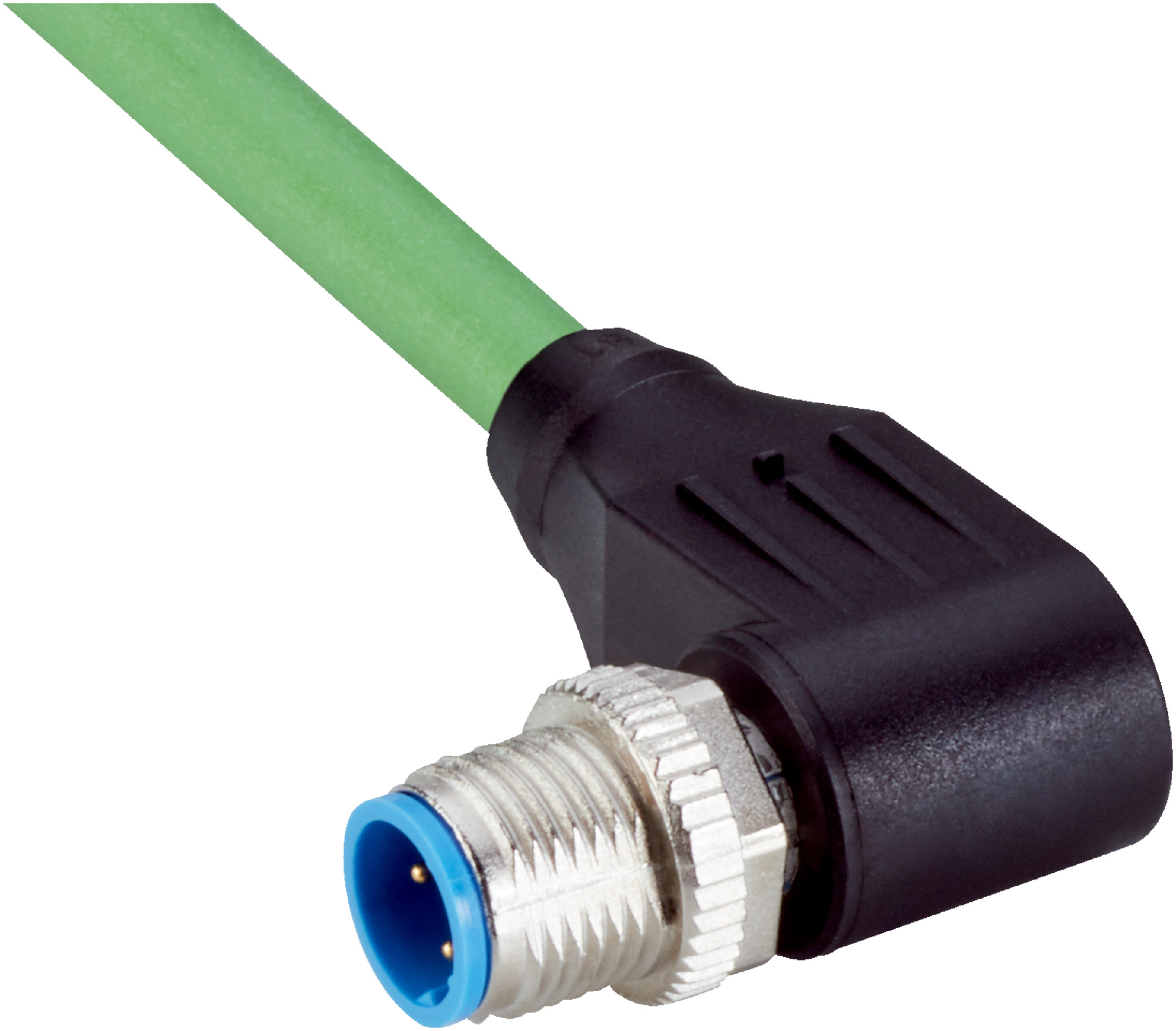

The PROFINET Ethernet Cable M12 is designed for robust industrial applications, featuring a 20m PUR halogen-free cable with a male M12, 4-pin, angled connector. Ideal for drag chain operations and environments with oils and lubricants, this cable supports Ethernet PROFINET with CAT5e transmission characteristics, ensuring reliable data transmission rates up to 0.1 Gbit/s. With an IP65/IP66K/IP67 rating, it offers excellent protection against dust and water, making it perfect for demanding conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, M12, 4-pin, angled, D-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Tightening torque: 0.6 Nm
- Cable length: 20 m
- Cable type: 4-wire, PUR, halogen-free
- Cable diameter: 6.7 mm
- Conductor cross section: 0.34 mm²
- Shielding: Shielded
- Bending radius flexible use: > 12 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Bending radius drag chain operation: > 12 x cable diameter
- Operating temperature flexible use: -30 °C to +70 °C
- Operating temperature stationary position: -40 °C to +80 °C
- Operating temperature drag chain operation: -30 °C to +70 °C
- Operating temperature head: -25 °C to +85 °C
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Traversing speed: 3.3 m/s
- Travelling distance: 5 m
- Acceleration: ≤ 2 m/s²
- Signal type: Ethernet, PROFINET
- Transmission characteristics: CAT5e
- Data transmission rate: ≤ 0.1 Gbit/s
- Enclosure rating: IP65 / IP66K / IP67
- Contamination rating: 3
- Insulation resistance: > 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: < 30 mΩ
- Thermal resistance: Flame retardant according to UL 1581 Section 1060 (FT1), Section 1061 (cable flame), Section 1080 (VW-1) / IEC 60332-1-2
- Dimensions (H x L x W): 13mm x 20000mm x 13mm
- Weight: 0.3 kg
Key Features
- Male M12, 4-pin, angled, D-coded connector
- 20 m PUR halogen-free cable with 4 wires and shielding
- Screw locking plug connector with zinc die-cast nickel-plated locking nut
- High bending radius suitable for flexible and drag chain use
- Operating temperature range from -40 °C to +85 °C depending on use
- IP65 / IP66K / IP67 rated enclosure for protection against dust and water
- Supports Ethernet PROFINET with CAT5e transmission characteristics
- Data transmission rate up to 0.1 Gbit/s
- Flame retardant cable according to UL 1581 and IEC 60332-1-2 standards
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Drag chain operation in industrial automation
- Zones with oils and lubricants requiring robust Ethernet connections
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free cable reduces harmful emissions in case of fire
- Durable materials extend product life and reduce waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK YN2D24-200PN1XLEAX Ethernet PROFINET Cable is available for immediate purchase, ideal for industrial automation and drag chain applications.
