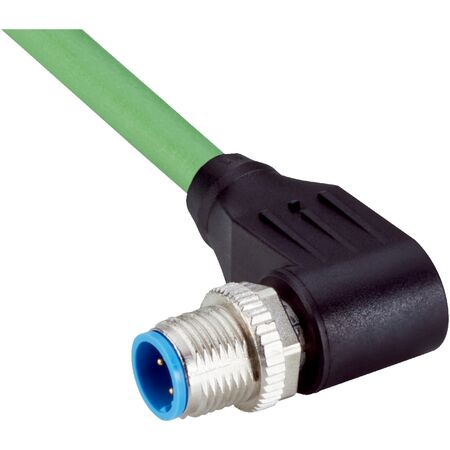

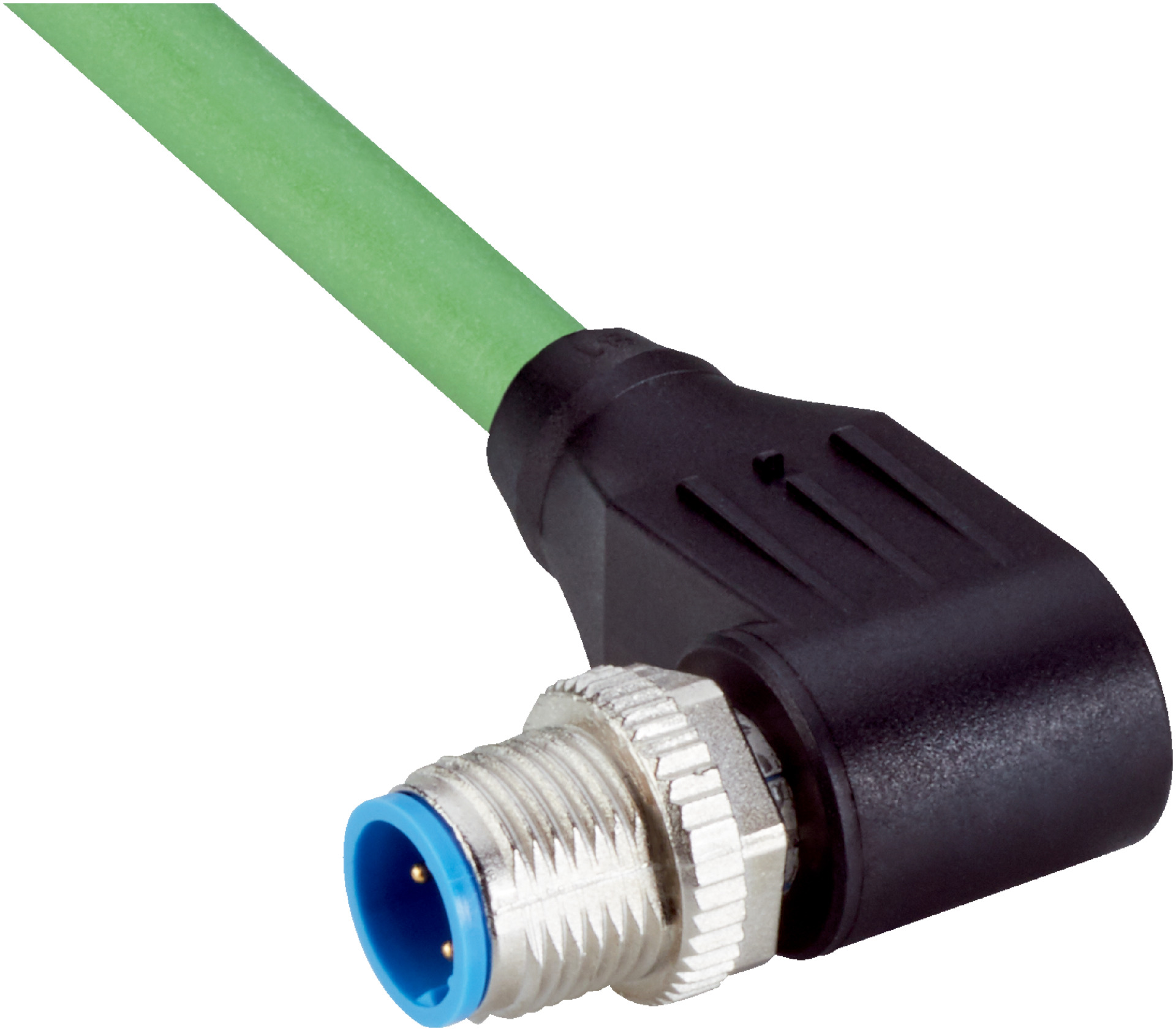

PROFINET Ethernet Cable M12 4-Pin | 15m Length | Shielded & Halogen-Free | IP65/IP66K/IP67 Rated | by SICK
The PROFINET Ethernet Cable M12 4-Pin is designed for industrial automation and control systems, featuring a 15m length and a robust shielded construction. With a halogen-free PUR jacket and IP65/IP66K/IP67 protection, this cable is perfect for drag chain operations in harsh environments, ensuring reliable data transmission and compliance with electrical safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, M12, 4-pin, angled, D-coded
- Connection type head B: Flying leads with screw connection
- Connector material: TPU, black color
- Locking nut material: Zinc die-cast, nickel-plated
- Cable length: 15 m
- Cable type: 4-wire, PUR, halogen-free, green jacket
- Cable diameter: 6.7 mm
- Conductor cross section: 0.34 mm²
- Shielding: Shielded
- Bending radius: Flexible use > 12 x cable diameter, Stationary > 5 x cable diameter, Drag chain > 12 x cable diameter
- Operating temperature: Flexible use -30 °C to +70 °C, Stationary -40 °C to +80 °C, Drag chain -30 °C to +70 °C, Head -25 °C to +85 °C
- Nominal voltage: 300 V AC
- Test voltage: 2000 V AC
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Signal type: Ethernet, PROFINET
- Transmission characteristics: CAT5e
- Data transmission rate: ≤ 0.1 Gbit/s
- Enclosure rating: IP65 / IP66K / IP67
- Contamination rating: 3
- Insulation resistance: > 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant acc. to UL 1581 Section 1090, Section 1100 (FT2), IEC 60332-1-2 Std.
- Dimensions (H x L x W): 6.7mm x 15000mm x 13mm
- Weight: 0.2 kg
Key Features
- Male M12, 4-pin, angled, D-coded connector on head A
- Flying leads on head B with screw connection locking plug
- Cable length 15 m, 4-wire, PUR, halogen-free, green jacket
- Shielded cable with 0.34 mm² conductor cross section
- High bending radius suitable for flexible use, stationary, and drag chain operation
- Operating temperature range from -40 °C to +85 °C depending on use
- IP65 / IP66K / IP67 enclosure rating for robust protection
- Supports Ethernet PROFINET with CAT5e transmission characteristics
- Data transmission rate up to 0.1 Gbit/s
- Rated for 300 V AC nominal voltage and 4 A current loading
- Flame retardant cable according to UL 1581 and IEC 60332-1-2 standards
Professional Installation Requirements
- Installation should be performed by a qualified professional familiar with industrial Ethernet cabling and electrical safety standards to ensure proper connection and compliance with IP ratings.
Applications
- Industrial automation and control systems
- Drag chain operation in zones with oils and lubricants
- Data transmission in harsh environments requiring IP65/IP66K/IP67 protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces harmful emissions in case of fire
- Durable and flame retardant materials extend product life and reduce waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YN2D24-150PN1XLEAX PROFINET Ethernet Cable is available for immediate purchase, ideal for industrial automation and drag chain applications requiring robust and reliable data transmission.
