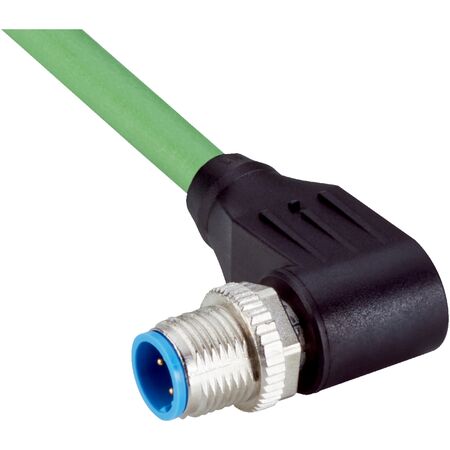

PROFINET Ethernet Cable | M12 4-Pin Male Connector | 25m Length | IP65/IP66K/IP67 Rated | by SICK
The PROFINET Ethernet Cable is designed for industrial automation, featuring a durable M12 4-pin male connector and a 25m halogen-free cable. Ideal for drag chain operations and harsh environments, this shielded cable supports data transmission rates up to 0.1 Gbit/s and operates within a temperature range of -40 °C to +85 °C, ensuring reliable performance in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, M12, 4-pin, angled, D-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Cable length: 25 m
- Cable type: 4-wire, PUR, halogen-free
- Cable diameter: 6.7 mm
- Conductor cross section: 0.34 mm²
- Shielding: Shielded
- Bending radius: Flexible use > 12 x cable diameter, Stationary position > 5 x cable diameter, Drag chain operation > 12 x cable diameter
- Operating temperature: Flexible use -30 °C to +70 °C, Stationary position -40 °C to +80 °C, Drag chain operation -30 °C to +70 °C, Head -25 °C to +85 °C
- Nominal voltage: 300 V AC
- Test voltage: 2000 V AC
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Traversing speed: 3.3 m/s
- Travelling distance: 5 m
- Acceleration: ≤ 2 m/s²
- Signal type: Ethernet, PROFINET
- Transmission characteristics: CAT5e
- Data transmission rate: ≤ 0.1 Gbit/s
- Enclosure rating: IP65 / IP66K / IP67
- Contamination rating: 3
- Insulation resistance: > 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant acc. to UL 1581 Section 1090, Section 1100 (FT2), IEC 60332-1-2 Std.
- Dimensions (H x L x W): 20mm x 25000mm x 13mm
- Weight: 0.3 kg
Key Features
- Male connector M12, 4-pin, angled, D-coded
- Flying leads connection on head B
- Screw locking plug connector with zinc die-cast, nickel-plated locking nut
- Cable length 25 m, 4-wire, PUR, halogen-free with green jacket
- Shielded cable with conductor cross section 0.34 mm²
- High bending radius suitable for flexible use, stationary position, and drag chain operation
- Operating temperature range from -40 °C to +85 °C depending on use
- Enclosure rating IP65 / IP66K / IP67 for protection against dust and water
- Supports Ethernet PROFINET with CAT5e transmission characteristics
- Data transmission rate up to 0.1 Gbit/s
- Flame retardant cable according to UL 1581 and IEC 60332-1-2 standards
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial Ethernet cabling and electrical safety standards.
Applications
- Industrial automation and control systems
- Drag chain operation in zones with oils and lubricants
- Data transmission in harsh environments requiring shielded cables
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free cable jacket reduces toxic emissions in case of fire
- Durable and flame retardant materials increase product lifespan and safety
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YN2D24-250PN1XLEAX Ethernet PROFINET Cable is available for immediate purchase, ideal for industrial automation and drag chain applications.
