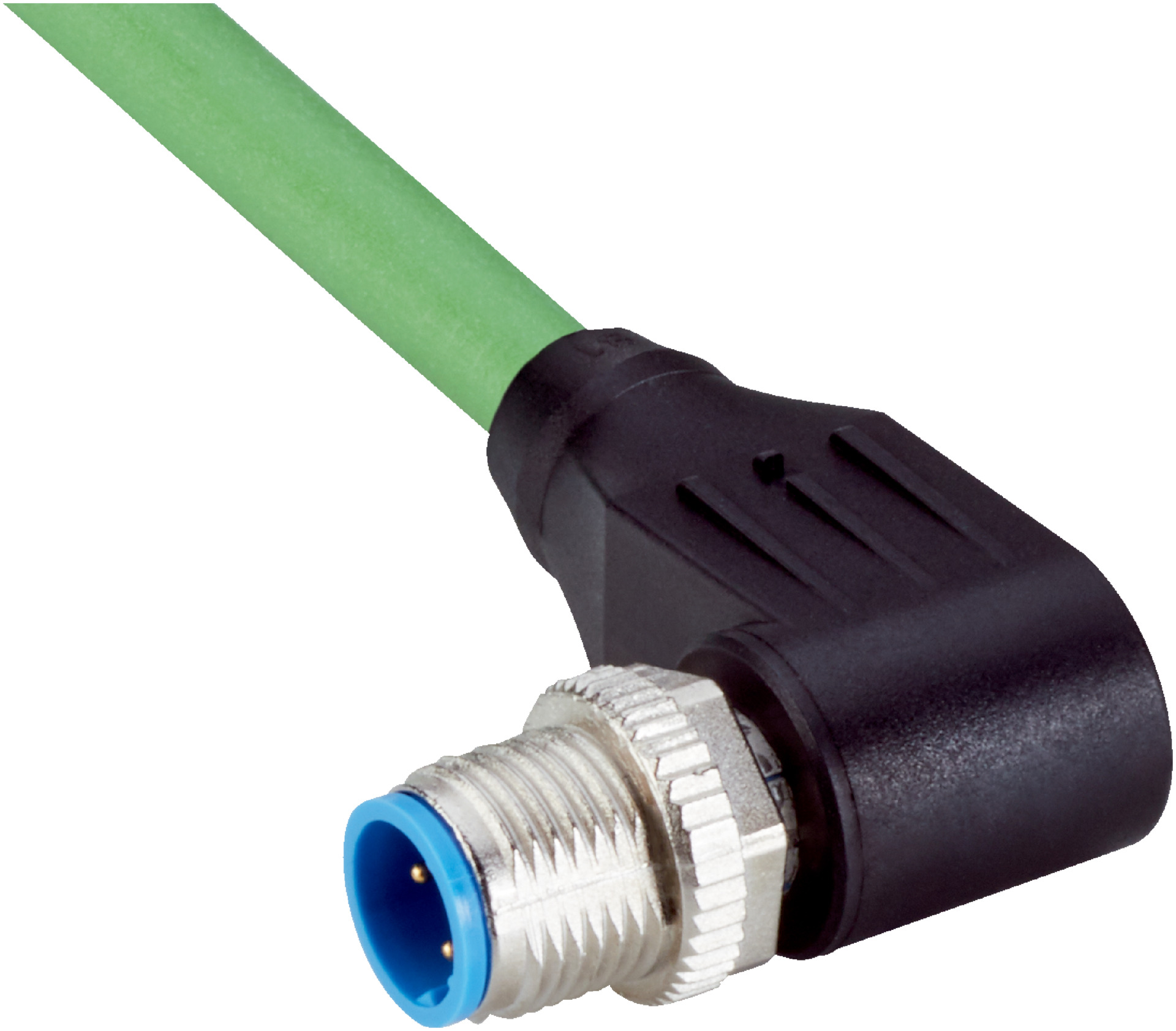

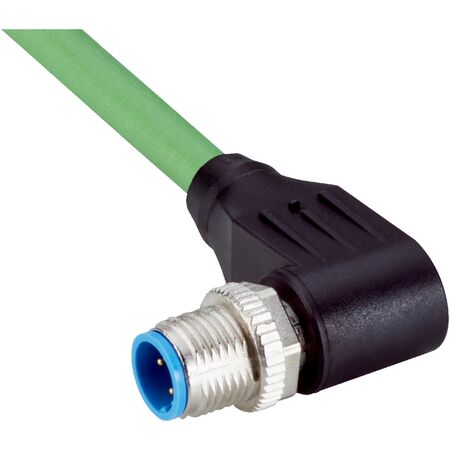

PROFINET Ethernet Cable M12 | 4-Pin Angled Connector | 2m Halogen-Free | IP65/IP66K/IP67 Rated | by SICK
The PROFINET Ethernet Cable M12 is designed for industrial automation networks, featuring a 4-pin angled connector and a 2m halogen-free cable. With IP65/IP66K/IP67 ratings, this shielded cable ensures robust protection in harsh environments, making it ideal for drag chain operations and data transmission in challenging conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, M12, 4-pin, angled, D-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Tightening torque: 0.6 Nm
- Cable length: 2 m
- Cable type: 4-wire, PUR, halogen-free
- Cable diameter: 6.7 mm
- Conductor cross section: 0.34 mm²
- Shielding: Shielded
- Bending radius flexible use: > 12 x cable diameter
- Nominal voltage: 300 V AC
- Test voltage: 2000 V AC
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Traversing speed: 3.3 m/s
- Travelling distance: 5 m
- Acceleration: ≤ 2 m/s²
- Signal type: Ethernet, PROFINET
- Transmission characteristics: CAT5e
- Data transmission rate: ≤ 0.1 Gbit/s
- Enclosure rating: IP65 / IP66K / IP67
- Operating temperature range: -40 °C to +85 °C
- Contamination rating: 3
- Insulation resistance: > 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant acc. to UL 1581 Section 1090, Section 1100 (FT2), IEC 60332-1-2 Std.
- Dimensions (H x L x W): 6.7mm x 2000mm x 13mm
- Weight: 0.1 kg
Key Features
- Male M12, 4-pin, angled, D-coded connector
- 2 m PUR halogen-free cable with 4 wires
- Shielded cable with CAT5e transmission characteristics
- IP65 / IP66K / IP67 rated enclosure for robust protection
- Supports data transmission rates up to 0.1 Gbit/s
- High bending radius suitable for flexible and drag chain use
- Operating temperature range from -40 °C to +85 °C
- Flame retardant cable according to UL 1581 and IEC 60332-1-2
Professional Installation Requirements
- Installation by a qualified electrician or technician experienced with industrial Ethernet cabling is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation networks
- Drag chain operation in zones with oils and lubricants
- PROFINET Ethernet data transmission
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free cable reduces harmful emissions in case of fire
- Durable materials extend product life and reduce waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK YN2D24-020PN1XLEAX PROFINET Ethernet Cable is available for immediate purchase, ideal for industrial automation and drag chain applications requiring robust and reliable Ethernet connectivity.
