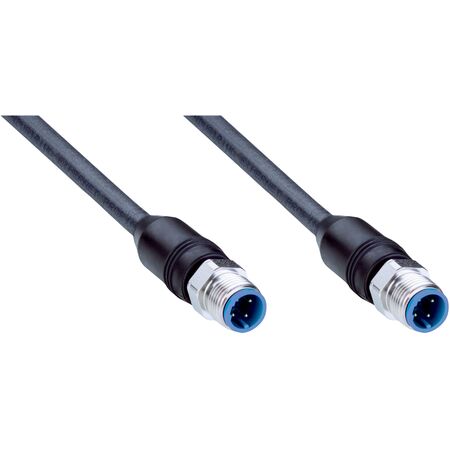

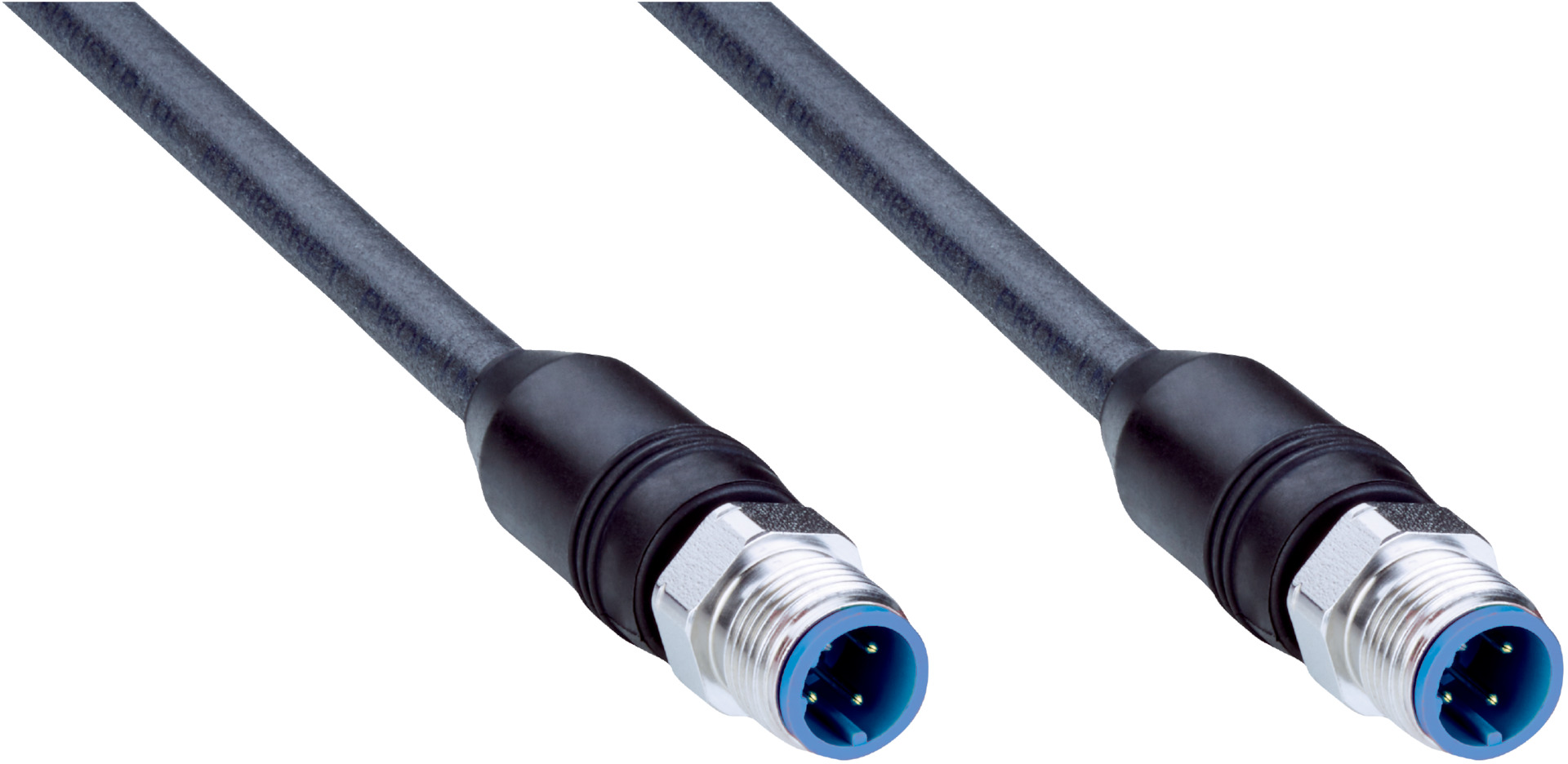

PROFINET Ethernet Cable M12 4-Pin | Halogen-Free PUR Jacket | IP65/IP66K/IP67 Rated | by SICK
The PROFINET Ethernet Cable M12 4-Pin is designed for robust industrial applications, featuring male connectors on both ends and a halogen-free PUR jacket. With an IP65/IP66K/IP67 enclosure rating, this cable is perfect for environments exposed to oils, lubricants, and seawater, ensuring reliable signal transmission and durability in harsh conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, M12, 4-pin, straight, D-coded
- Connection type head B: Male connector, M12, 4-pin, straight, D-coded
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Stainless steel (V4A/1.4404)
- Tightening torque: 0.6 Nm
- Cable length: 2 m
- Cable type: 4-wire, PUR, halogen-free
- Cable diameter: 6.7 mm
- Shielding: Shielded
- Bending radius: Flexible use > 12 x cable diameter, Stationary position > 5 x cable diameter, Drag chain operation > 12 x cable diameter
- Operating temperature: Flexible use -30°C to +70°C, Stationary position -40°C to +80°C, Drag chain operation -30°C to +70°C, Head -25°C to +85°C
- Nominal voltage: 300 V AC
- Test voltage: 2000 V AC
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Traversing speed: 3.3 m/s
- Travelling distance: 5 m
- Acceleration: ≤ 2 m/s²
- Signal type: Ethernet, PROFINET
- Transmission characteristics: CAT5e
- Data transmission rate: ≤ 0.1 Gbit/s
- Enclosure rating: IP65 / IP66K / IP67
- Contamination rating: 3
- Insulation resistance: > 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: < 30 mΩ
- Dimensions (H x L x W): 13mm x 2000mm x 13mm
- Weight: 0.1 kg
Key Features
- Male M12, 4-pin, straight, D-coded connectors on both ends
- Screw connection locking plug with stainless steel locking nut
- Cable jacket made of halogen-free PUR material, black color
- Shielded cable with 4 wires and 2 m length
- High bending radius suitable for flexible use, stationary position, and drag chain operation
- Operating temperature range from -40°C to +85°C depending on use
- Rated for 300 V AC nominal voltage and 4 A current loading
- Supports Ethernet PROFINET signal transmission with CAT5e characteristics
- Data transmission rate up to 0.1 Gbit/s
- Enclosure rating IP65 / IP66K / IP67 for robust protection
- UL File No. E513908 certified
- High insulation resistance > 100 MΩ and overvoltage category III
Professional Installation Requirements
- Installation by a qualified electrician or trained professional is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation and control systems
- Outdoor zones with exposure to oils and lubricants
- Seawater resistant environments
- Drag chain operation applications requiring flexible and durable cabling
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR cable jacket reduces harmful emissions in case of fire
- Durable materials extend product lifespan reducing waste
- Seawater and oil resistant properties minimize environmental contamination risks
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YM2D34-020PN4M2D34 PROFINET Ethernet Cable Assembly is available for immediate purchase, ideal for industrial automation and harsh environment applications.
