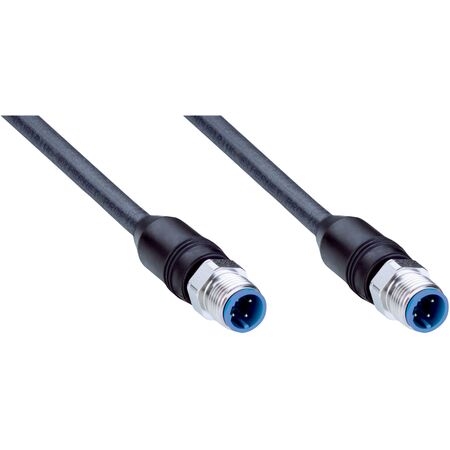

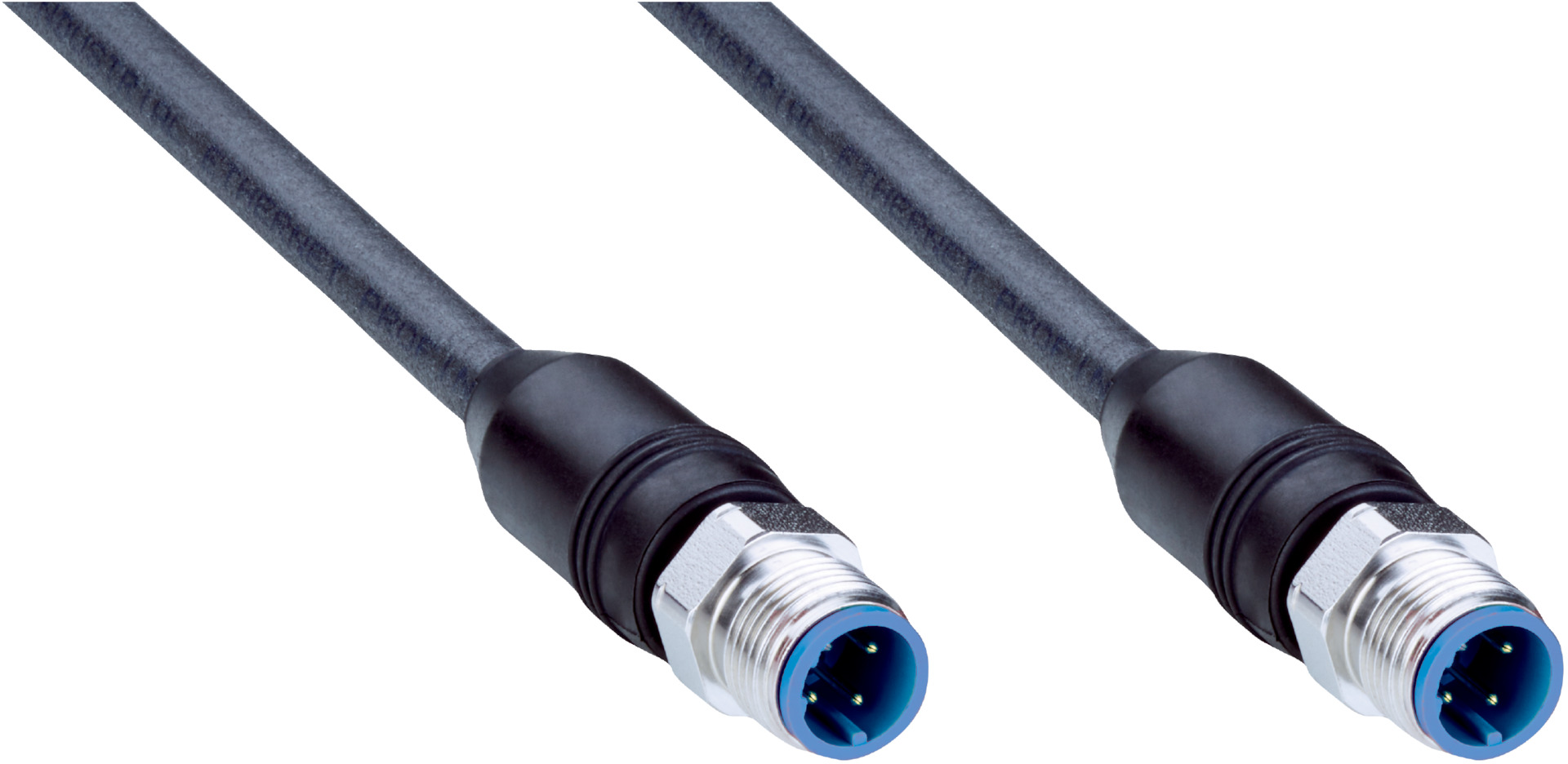

PROFINET Ethernet Cable M12 4-Pin | Shielded & Halogen-Free | IP65/IP66K/IP67 Rated | by SICK
The PROFINET Ethernet Cable M12 4-Pin is designed for industrial automation, featuring male connectors on both ends and a robust halogen-free PUR jacket. With a shielded design and IP65/IP66K/IP67 rating, it ensures reliable performance in harsh environments, making it ideal for outdoor applications and drag chain operations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, M12, 4-pin, straight, D-coded
- Connection type head B: Male connector, M12, 4-pin, straight, D-coded
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Stainless steel (V4A/1.4404)
- Tightening torque: 0.6 Nm
- Cable length: 5 m
- Cable type: 4-wire, PUR, halogen-free
- Cable diameter: 6.7 mm
- Shielding: Shielded
- Bending radius: Flexible use > 12 x cable diameter, Stationary position > 5 x cable diameter, Drag chain operation > 12 x cable diameter
- Bending cycles: 3,000,000
- Nominal voltage, cable: 300 V AC
- Test voltage, cable: 2,000 V AC
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Traversing speed: 3.3 m/s
- Travelling distance: 5 m
- Acceleration: ≤ 2 m/s²
- Signal type: Ethernet, PROFINET
- Transmission characteristics: CAT5e
- Data transmission rate: ≤ 0.1 Gbit/s
- Operating temperature: Flexible use –30 °C to +70 °C, Stationary position –40 °C to +80 °C, Drag chain operation –30 °C to +70 °C, Head –25 °C to +85 °C
- Contamination rating: 3
- Insulation resistance: > 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: < 30 mΩ
- Enclosure rating: IP65 / IP66K / IP67
- Dimensions (H x L x W): 13mm x 5000mm x 13mm
- Weight: 0.2 kg
Key Features
- Male M12, 4-pin, straight, D-coded connectors on both ends
- Screw connection locking plug with stainless steel locking nut
- 5 meter PUR halogen-free cable, black color
- Shielded cable with CAT5e transmission characteristics
- Supports Ethernet PROFINET signal type with data rate up to 0.1 Gbit/s
- High bending radius suitable for flexible use, stationary position, and drag chain operation
- Operating temperature range from -40°C to +85°C depending on use
- IP65 / IP66K / IP67 enclosure rating for robust protection
- UL File No. E513908 and multiple international certifications including cULus and China-RoHS
Professional Installation Requirements
- Installation by a qualified electrician or technician experienced with industrial Ethernet cabling and connectors is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation and control systems
- Outdoor zones with exposure to oils and lubricants
- Seawater resistant environments
- Drag chain operation applications requiring flexible and durable cabling
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces harmful emissions in case of fire
- Durable materials extend product life and reduce waste
- Shielded cable minimizes electromagnetic interference, improving system efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YM2D34-050PN4M2D34 PROFINET Ethernet Cable is available for immediate purchase, ideal for industrial automation and harsh environment applications.
