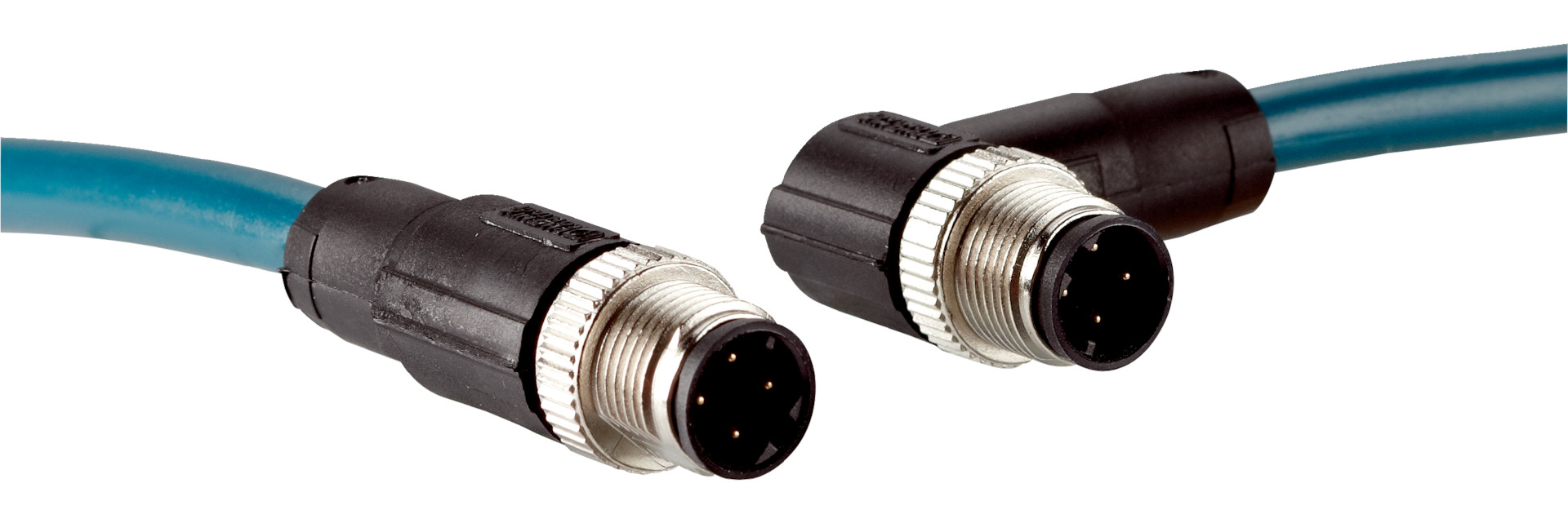

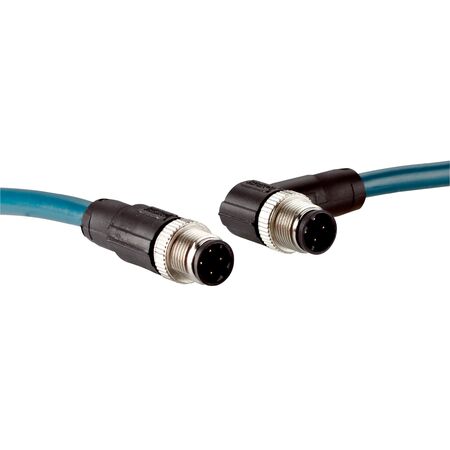

PROFINET Ethernet Cable SSL-1204-H20ME90 | M12 D-Coded Connectors | Shielded CAT5 | IP65/IP67 Rated | by SICK
The PROFINET Ethernet Cable SSL-1204-H20ME90 features male M12 connectors, ensuring secure connections for industrial automation. With a shielded CAT5 design and a halogen-free PUR jacket, it provides reliable data transmission in harsh environments. Ideal for machine connectivity, this cable operates effectively in temperatures ranging from -40°C to +80°C, making it perfect for demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, M12, 4-pin, angled, D-coded
- Connection type head B: Male connector, M12, 4-pin, straight, D-coded
- Locking plug connector: Quick screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Tightening torque: 0.4 Nm
- Cable length: 20 m
- Cable type: 4-wire, CAT5, CAT5e, PUR, halogen-free
- Cable diameter: 6.4 mm
- Conductor cross section: 2 x 2 x 0.14 mm²
- Shielding: Shielded
- Bending radius flexible use: > 8 x cable diameter
- Bending radius stationary position: > 4 x cable diameter
- Operating temperature flexible use: -40 °C to +80 °C
- Operating temperature stationary position: -40 °C to +80 °C
- Operating temperature head: -25 °C to +90 °C
- Reference voltage: ≤ 60 V
- Current loading: 4 A
- Signal type: Ethernet, PROFINET
- Transmission characteristics: CAT5
- Data transmission rate: ≤ 100 Mbit/s
- Enclosure rating: IP65 / IP67
- Dimensions (H x L x W): 10mm x 20000mm x 10mm
- Weight: 0.1 kg
Key Features
- Male M12 connectors, 4-pin, D-coded for secure connections
- Quick screw locking plug connector for reliable fastening
- Shielded CAT5 cable for interference protection
- Halogen-free PUR jacket for environmental safety
- High IP65/IP67 enclosure rating for dust and water resistance
- Operating temperature range from -40°C to +80°C for flexible use
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation and control systems
- PROFINET and Ethernet data transmission
- Machine connectivity in harsh environments
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free cable jacket reduces toxic emissions in case of fire
- Durable materials extend product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK SSL-1204-H20ME90 Ethernet PROFINET Cable is available for immediate purchase, ideal for industrial automation and control system applications.
