PROFINET Ethernet Cable | M12 Male Connector | Shielded PUR | IP65/IP66K/IP67 Rated | by SICK
The PROFINET Ethernet cable is designed for industrial automation, featuring a male M12 connector and a shielded PUR construction. With an IP65/IP66K/IP67 rating, it offers robust protection in environments with oils and lubricants, ensuring reliable data transmission rates up to 0.1 Gbit/s. Ideal for drag chain operations, this cable is built to withstand extreme temperatures from -40°C to +85°C, making it perfect for demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: PROFINET Ethernet cable, M12 Ethernet cable, Industrial Ethernet cable, Drag chain Ethernet cable
Technical Specifications

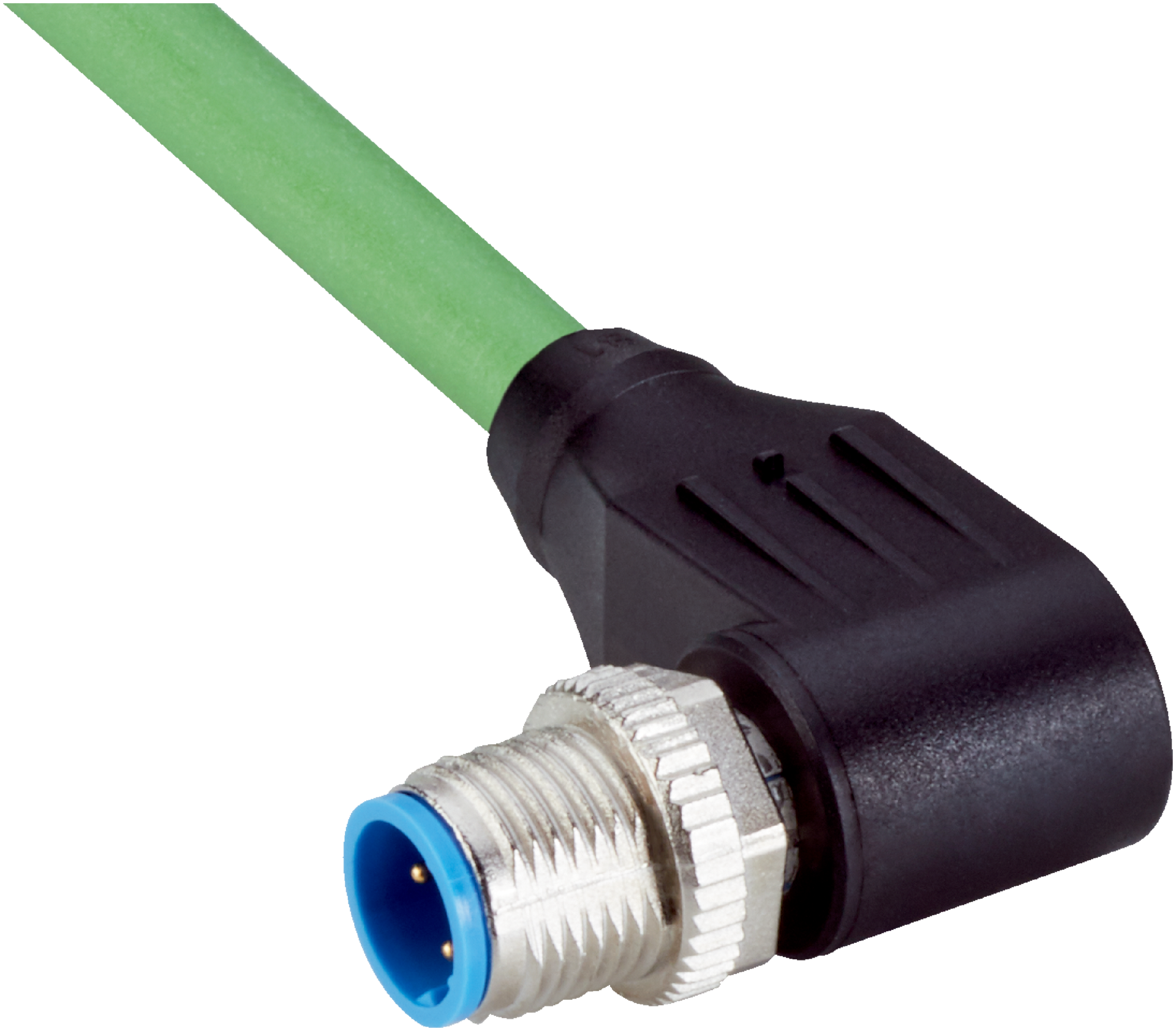

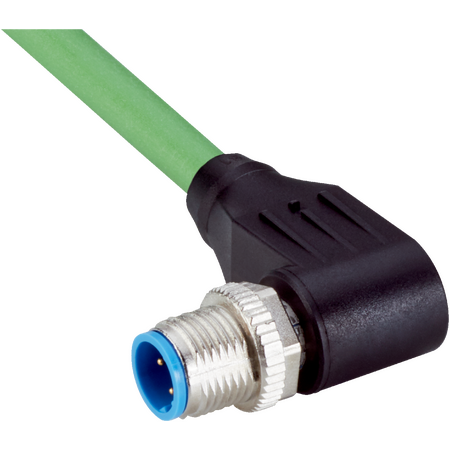

- Connection type head A: Male connector, M12, 4-pin, angled, D-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Tightening torque: 0.6 Nm
- Cable length: 10 m
- Cable type: 4-wire, PUR, halogen-free
- Cable diameter: 6.7 mm
- Conductor cross section: 0.34 mm²
- Shielding: Shielded
- Bending radius flexible use: > 12 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Bending radius drag chain operation: > 12 x cable diameter
- Temperature range flexible use: -30°C to +70°C
- Temperature range stationary position: -40°C to +80°C
- Temperature range drag chain operation: -30°C to +70°C
- Temperature range head: -25°C to +85°C
- Bending cycles: 3,000,000
- Nominal voltage cable: 300 V AC
- Test voltage cable: 2,000 V AC
- Reference voltage: 60 V DC
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Traversing speed: 3.3 m/s
- Travelling distance: 5 m
- Acceleration: ≤ 2 m/s²
- Signal type: Ethernet, PROFINET
- Transmission characteristics: CAT5e
- Data transmission rate: ≤ 0.1 Gbit/s
- Application: Drag chain operation, zones with oils and lubricants
- Enclosure rating: IP65 / IP66K / IP67
- Contamination rating: 3
- Insulation resistance: > 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: < 30 mΩ
- Thermal resistance piping: Flame retardant acc. to UL 1581 Section 1090, Section 1100 (FT2), IEC 60332-1-2 Std.
- Dimensions (H x L x W): 6.7mm x 10000mm x 13mm
- Weight: 0.1 kg
Key Features
- Male connector M12, 4-pin, angled, D-coded
- Shielded PUR cable, halogen-free with green jacket
- High bending radius suitable for flexible and stationary use
- Operating temperature range from -40°C to +85°C depending on use
- IP65 / IP66K / IP67 enclosure rating for robust protection
- Supports data transmission rates up to 0.1 Gbit/s
- Flame retardant cable according to UL 1581 and IEC 60332-1-2 standards
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician experienced with industrial Ethernet cabling to ensure proper connection and compliance with safety standards.
Applications
- Drag chain operation in industrial automation
- Zones with oils and lubricants
- Ethernet and PROFINET data transmission
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces harmful emissions in case of fire
- Durable design extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK YN2D24-100PN1XLEAX Ethernet PROFINET cable is available for immediate purchase, ideal for industrial automation and drag chain applications.
