Trade Discount 20%

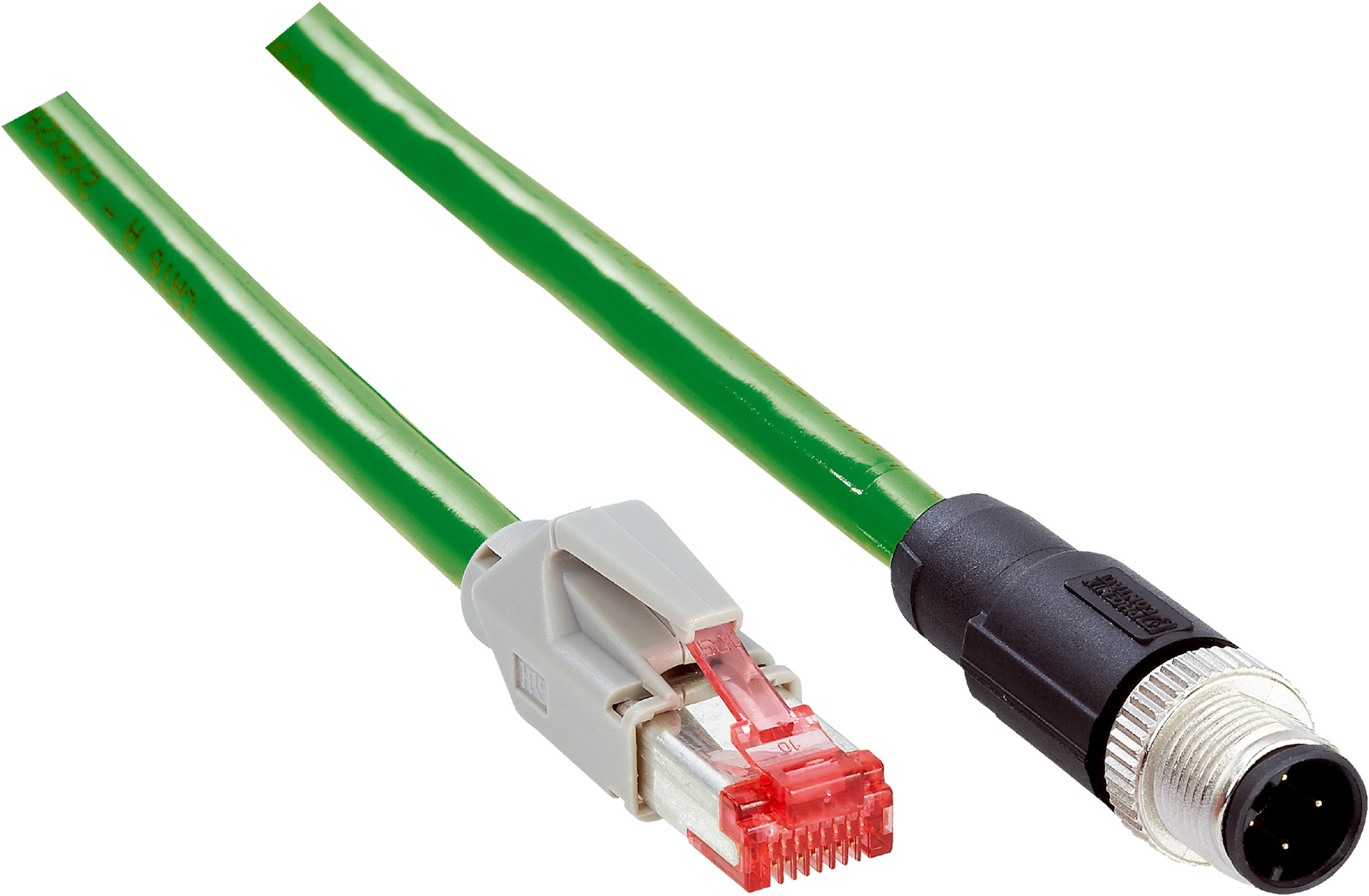

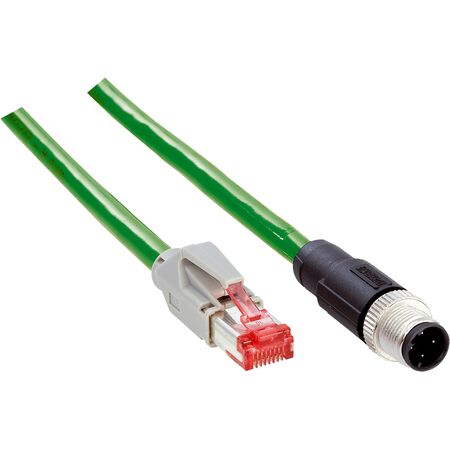

PROFINET Ethernet Cable | M12 to RJ45 | 30m Length | Shielded | by SICK
The PROFINET Ethernet Cable is designed for reliable industrial automation, featuring a male M12 connector on one end and an RJ45 connector on the other. With a 30m length and a halogen-free PUR jacket, this cable ensures signal integrity and safety in factory networking applications. Ideal for connecting devices in manufacturing environments, it meets industrial standards for performance and compliance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, M12, 4-pin, straight, D-coded
- Connection type head B: Male connector, RJ45, 4-pin, straight
- Locking nut material: Zinc die-cast, nickel-plated
- Cable length: 30 m
- Cable wires: 4-wire, AWG26
- Cable jacket material: PUR, halogen-free
- Cable diameter: 6.4 mm
- Shielding: Shielded
- Signal type: Ethernet, PROFINET
- Dimensions (H x L x W): 10mm x 30000mm x 640mm
- Weight: 0.3 kg
Key Features
- Male connector, M12, 4-pin, straight, D-coded on head A
- Male connector, RJ45, 4-pin, straight on head B
- 30 m length, 4-wire, AWG26 PUR cable
- Halogen-free PUR jacket material
- Shielded cable for signal integrity
- Designed for Ethernet PROFINET signal transmission
- Locking nut made of zinc die-cast, nickel-plated
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and compliance with industrial networking standards.
Applications
- Industrial automation and control systems
- Factory networking and communication
- PROFINET Ethernet connections in manufacturing environments
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Halogen-free cable jacket reduces environmental impact and improves safety in case of fire.
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK YM2D24-300EA1MRJA4 Ethernet PROFINET Cable is available for immediate purchase, ideal for industrial automation and factory networking applications.
