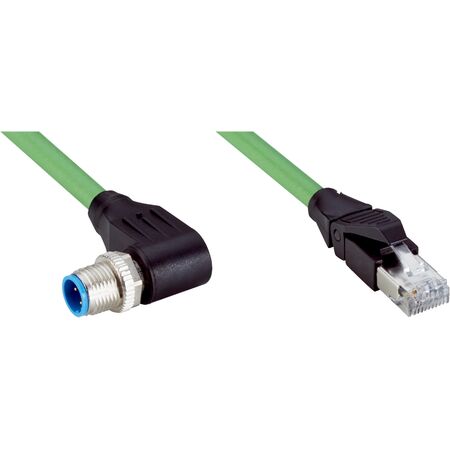

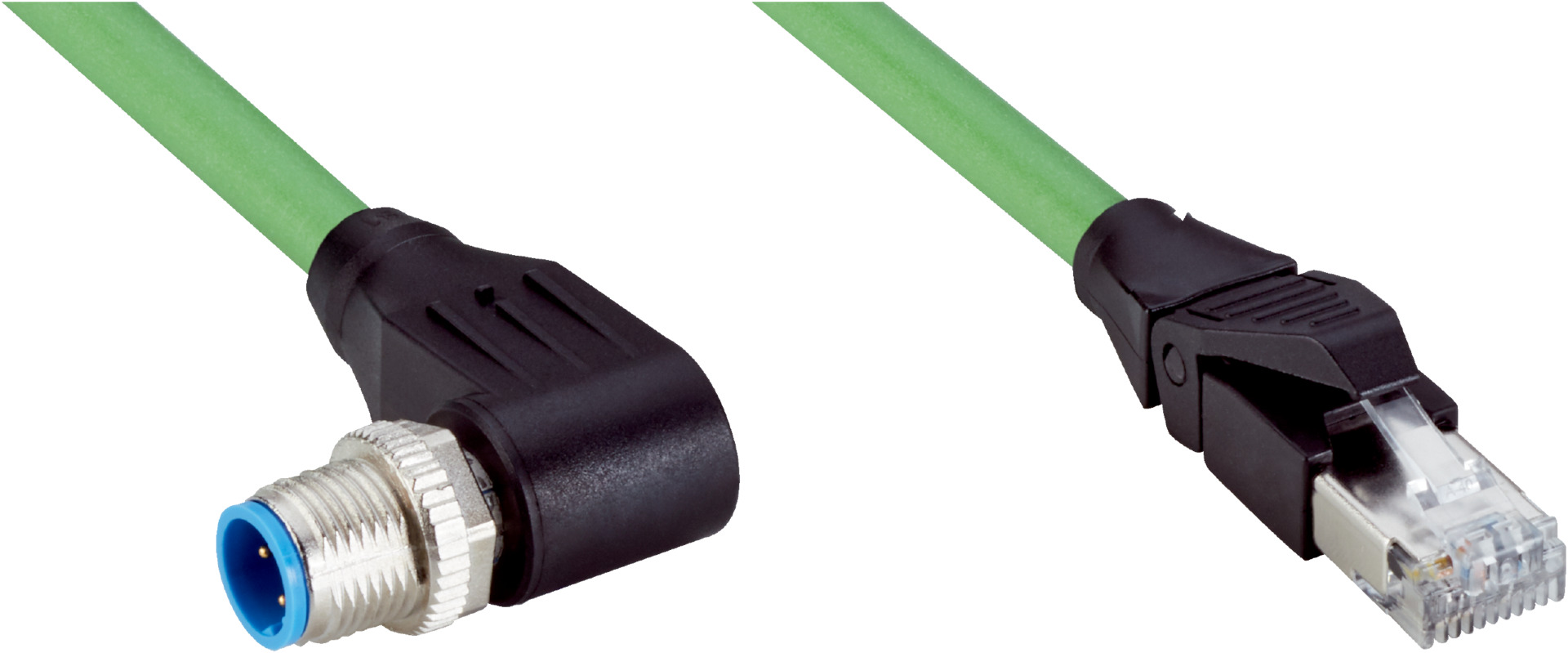

PROFINET Ethernet Cable M12 to RJ45 | 3m Length | Shielded PUR Halogen-Free | IP67 Rated | by SICK
The PROFINET Ethernet Cable M12 to RJ45 is designed for robust industrial applications, featuring a 3m shielded PUR halogen-free cable that withstands harsh environments. With an IP67 rating for the M12 connector and a flexible design suitable for drag chain operation, this cable ensures reliable data transmission up to 0.1 Gbit/s, making it ideal for automation and areas exposed to oils and lubricants.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, M12, 4-pin, angled, D-coded
- Connection type head B: Male connector, RJ45, 4-pin, straight
- Locking plug connector: Screw-on (M12), snap-in locking (RJ45)
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Cable length: 3 m
- Cable type: 4-wire, PUR, halogen-free
- Cable diameter: 6.7 mm
- Conductor cross section: 0.34 mm²
- Shielding: Shielded
- Bending radius: Flexible use > 12 x cable diameter
- Operating temperature: Flexible use -30 °C to +70 °C, Stationary -40 °C to +80 °C, Drag chain -30 °C to +70 °C
- Nominal voltage: 300 V AC
- Test voltage: 2000 V AC
- Rated impulse voltage: 1 kV
- Current loading: 1.5 A
- Signal type: Ethernet, PROFINET
- Transmission characteristics: CAT5e
- Data transmission rate: ≤ 0.1 Gbit/s
- Enclosure rating: IP67 (M12), IP20 (RJ45)
- Contamination rating: 3
- Insulation resistance: > 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant acc. to UL 1581 Section 1090, Section 1100 (FT2), IEC 60332-1-2
- Dimensions (H x L x W): 10mm x 3000mm x 13mm
- Weight: 0.1 kg
Key Features
- Male connector M12, 4-pin, angled, D-coded and male RJ45, 4-pin, straight
- Screw-on locking for M12 and snap-in locking for RJ45 connectors
- Shielded PUR halogen-free cable with 3 m length and 4 wires
- High bending radius suitable for flexible use and drag chain operation
- Operating temperature range from -40 °C to +85 °C depending on position
- IP67 rated enclosure for M12 connector and IP20 for RJ45
- Supports Ethernet PROFINET with CAT5e transmission characteristics
- Data transmission rate up to 0.1 Gbit/s
- Flame retardant cable according to UL 1581 and IEC 60332-1-2 standards
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Drag chain operation in industrial automation
- Zones with oils and lubricants requiring robust Ethernet connections
- PROFINET data transmission in harsh environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces environmental impact during disposal
- Flame retardant materials enhance safety and reduce fire hazards
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK YN2D24-030PN1MRJA4 Ethernet PROFINET Cable is available for immediate purchase, ideal for industrial automation and drag chain applications.
