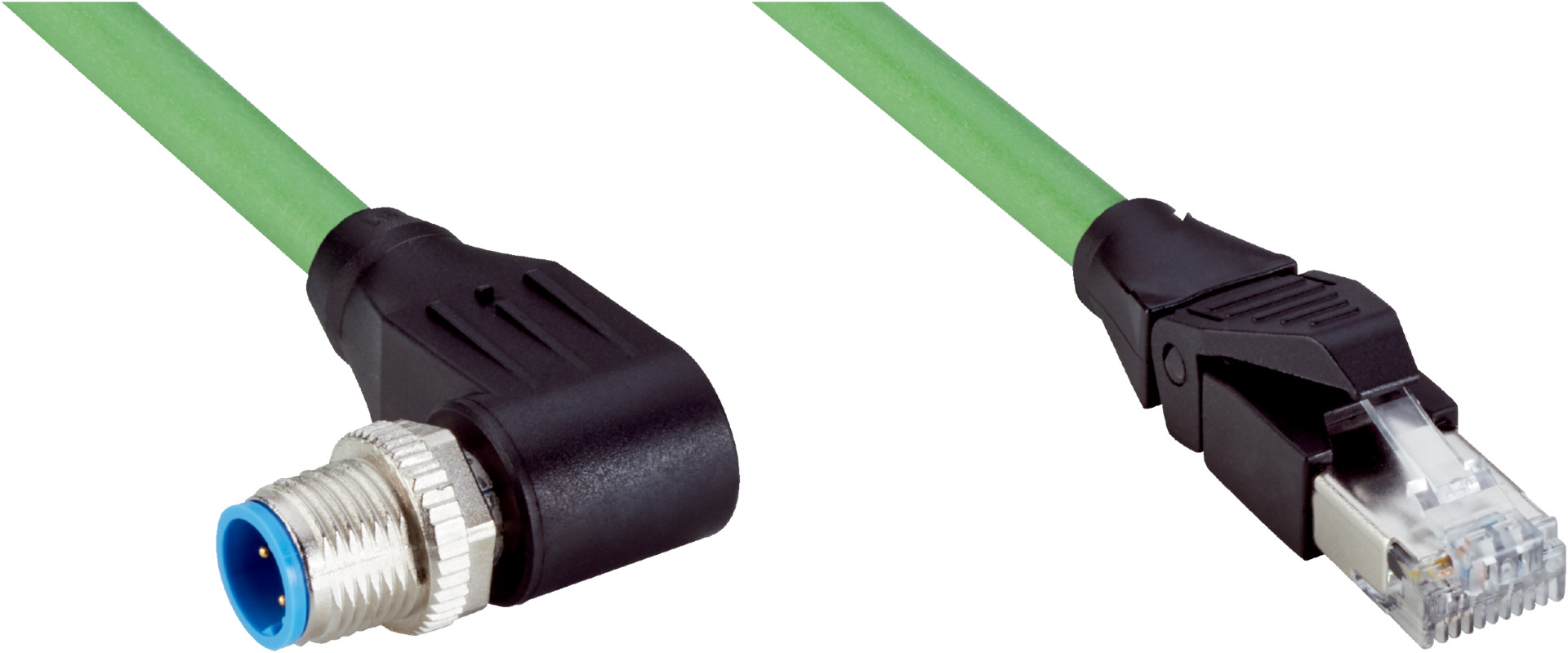

PROFINET Ethernet Cable M12 to RJ45 | 5m Length | Shielded & Halogen-Free | IP67 Rated | by SICK
The PROFINET Ethernet Cable M12 to RJ45 is designed for robust industrial applications, featuring a 5m shielded, halogen-free cable with M12 and RJ45 connectors. Ideal for drag chain operations and environments with oils, this cable supports Ethernet PROFINET with CAT5e transmission characteristics, ensuring reliable data transmission up to 0.1 Gbit/s. Built to withstand extreme temperatures and harsh conditions, it’s perfect for industrial automation setups.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, M12, 4-pin, angled, D-coded
- Connection type head B: Male connector, RJ45, 4-pin, straight
- Locking plug connector: Screw-on (M12), snap-in locking (RJ45)
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Cable length: 5 m, 4-wire, PUR, halogen-free
- Cable diameter: 6.7 mm
- Conductor cross section: 0.34 mm²
- Shielding: Shielded
- Bending radius: Flexible use > 12 x cable diameter, Stationary > 5 x cable diameter, Drag chain > 12 x cable diameter
- Operating temperature: Flexible use -30 °C to +70 °C, Stationary -40 °C to +80 °C, Drag chain -30 °C to +70 °C, Head -25 °C to +85 °C
- Nominal voltage: 300 V AC
- Test voltage: 2000 V AC
- Rated impulse voltage: 1 kV
- Current loading: 1.5 A
- Signal type: Ethernet, PROFINET
- Transmission characteristics: CAT5e
- Data transmission rate: ≤ 0.1 Gbit/s
- Enclosure rating: IP67 (M12), IP20 (RJ45)
- Contamination rating: 3
- Insulation resistance: > 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant acc. to UL 1581 Section 1090, Section 1100 (FT2), IEC 60332-1-2
- Dimensions (H x L x W): 10mm x 5000mm x 13mm
- Weight: 0.2 kg
Key Features
- Male connector M12, 4-pin, angled, D-coded and male RJ45, 4-pin, straight
- Screw-on locking for M12 and snap-in locking for RJ45 connectors
- Shielded PUR halogen-free cable with 5 m length and 4 wires
- High bending radius suitable for flexible use and drag chain operation
- Operating temperature range from -40 °C to +85 °C depending on use
- IP67 rated enclosure for M12 connector and IP20 for RJ45
- Supports Ethernet PROFINET with CAT5e transmission characteristics
- Data transmission rate up to 0.1 Gbit/s
- Flame retardant cable according to UL 1581 and IEC 60332-1-2 standards
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Drag chain operation in industrial automation
- Zones with oils and lubricants requiring robust Ethernet connections
- PROFINET data transmission in harsh environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces harmful emissions in case of fire
- Durable design extends product life and reduces waste
- Flame retardant materials enhance safety and environmental protection
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

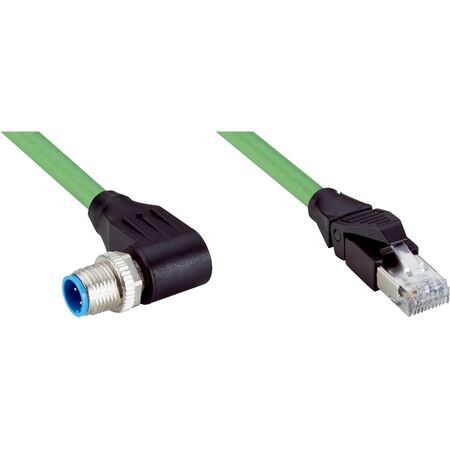

The SICK YN2D24-050PN1MRJA4 Ethernet PROFINET Cable is available for immediate purchase, ideal for industrial automation and drag chain applications.
