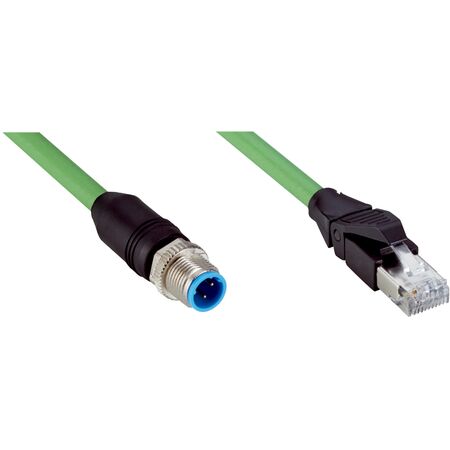

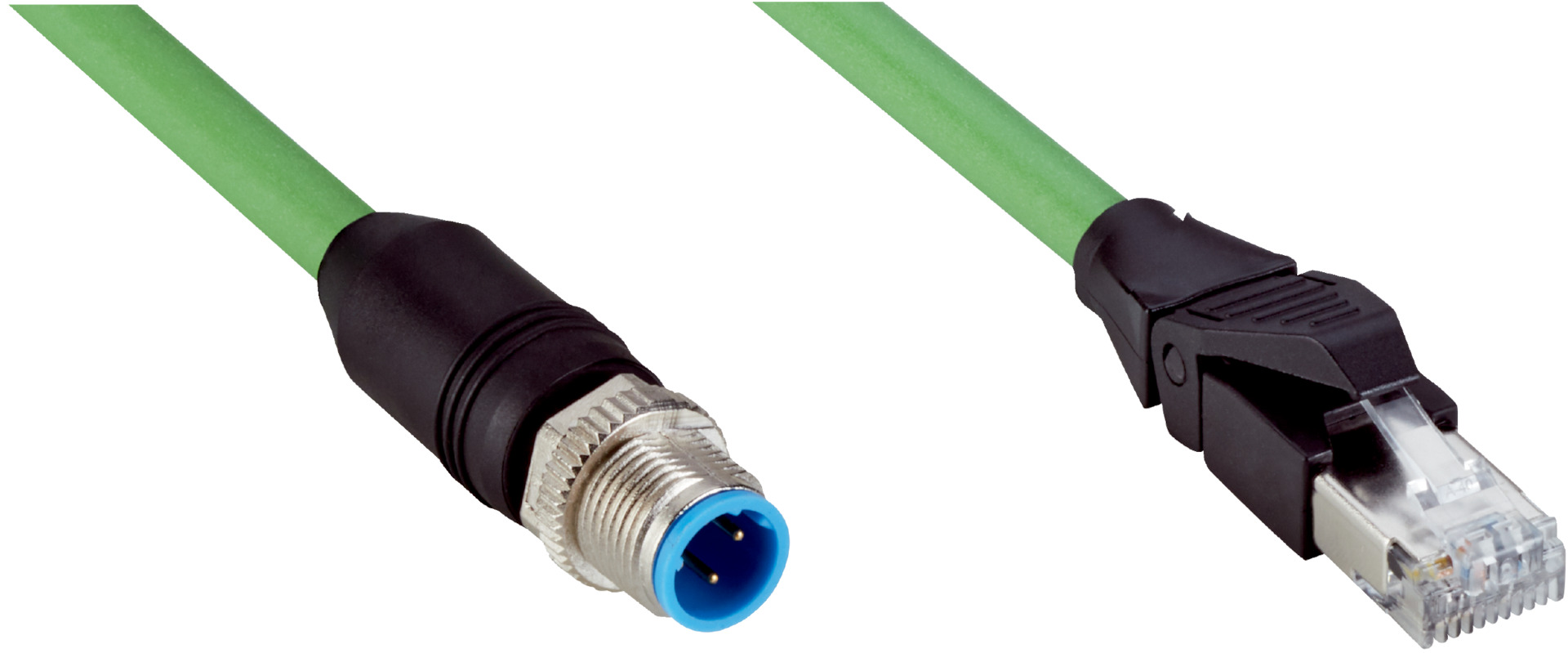

PROFINET Ethernet Cable | M12 to RJ45 | IP67 & IP20 Rated | Shielded | by SICK
The PROFINET Ethernet Cable is designed for robust industrial automation networks, featuring a male M12 4-pin connector and a male RJ45 connector. With an IP67 rating for the M12 connector and a flexible, halogen-free PUR jacket, this cable is perfect for drag chain operations and environments with oils and lubricants. It supports data transmission rates up to 0.1 Gbit/s, ensuring reliable communication in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, M12, 4-pin, straight, D-coded
- Connection type head B: Male connector, RJ45, 4-pin, straight
- Locking plug connector: Screw-on connection (M12), snap-in locking (RJ45)
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Cable length: 0.6 m
- Cable type: 4-wire, PUR, halogen-free
- Cable diameter: 6.7 mm
- Conductor cross section: 0.34 mm²
- Shielding: Shielded
- Bending radius: Flexible use > 12 x cable diameter, Stationary position > 5 x cable diameter, Drag chain operation > 12 x cable diameter
- Operating temperature: Flexible use -30°C to +70°C, Stationary position -40°C to +80°C, Drag chain operation -30°C to +70°C, Head -25°C to +85°C
- Enclosure rating: IP67 (M12), IP20 (RJ45)
- Signal type: Ethernet, PROFINET
- Transmission characteristics: CAT5e
- Data transmission rate: ≤ 0.1 Gbit/s
- Rated impulse voltage: 1 kV
- Current loading: 1.5 A
- Bending cycles: 3,000,000
- Thermal resistance: Flame retardant according to UL 1581 Section 1060 (FT1), Section 1061 (cable flame), Section 1080 (VW-1) / IEC 60332-1-2
- Dimensions (H x L x W): 6.7mm x 600mm x 13mm
- Weight: 0.1 kg
Key Features
- Male M12 4-pin straight D-coded connector and male RJ45 4-pin straight connector
- Screw-on locking for M12 and snap-in locking for RJ45 connectors
- Shielded cable with PUR halogen-free jacket
- High bending radius suitable for flexible and drag chain use
- Operating temperature range from -40°C to +85°C depending on use
- IP67 rated at M12 connector and IP20 at RJ45 connector
- Supports data transmission rates up to 0.1 Gbit/s
- Rated impulse voltage 1 kV and current loading 1.5 A
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation networks
- Drag chain operation in zones with oils and lubricants
- PROFINET Ethernet communication
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces environmental impact during disposal
- Durable design minimizes replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK YM2D24-C60PN1MRJA Ethernet PROFINET Cable is available for immediate purchase, ideal for industrial automation and network communication applications.
