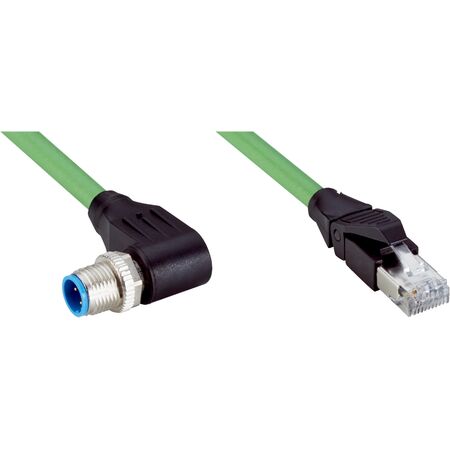

PROFINET Ethernet Cable | M12 to RJ45 | Shielded | 10m Length | by SICK
The PROFINET Ethernet Cable is designed for robust industrial applications, featuring a male M12 connector and a male RJ45 connector for reliable connectivity. With a 10m length and shielded construction, it ensures optimal performance in automation and control systems, even in harsh environments. Ideal for drag chain operations, this cable supports a wide temperature range and meets stringent safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, M12, 4-pin, angled, D-coded
- Connection type head B: Male connector, RJ45, 4-pin, straight
- Locking plug connector: Screw-on (M12), snap-in locking (RJ45)
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Cable length: 10 m, 4-wire, PUR, halogen-free
- Cable diameter: 6.7 mm
- Conductor cross section: 0.34 mm²
- Shielding: Shielded
- Bending radius: Flexible use > 12 x cable diameter, Stationary > 5 x cable diameter, Drag chain > 12 x cable diameter
- Temperature range: Flexible use -30 °C to +70 °C, Stationary -40 °C to +80 °C, Drag chain -30 °C to +70 °C, Head -25 °C to +85 °C
- Nominal voltage: 300 V AC
- Test voltage: 2000 V AC
- Rated impulse voltage: 1 kV
- Current loading: 1.5 A
- Signal type: Ethernet, PROFINET
- Transmission characteristics: CAT5e
- Data transmission rate: ≤ 0.1 Gbit/s
- Enclosure rating: IP67 (M12), IP20 (RJ45)
- Contamination rating: 3
- Insulation resistance: > 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant acc. to UL 1581 Section 1090, Section 1100 (FT2), IEC 60332-1-2
- Dimensions (H x L x W): 6.7mm x 10000mm x 13mm
- Weight: 0.3 kg
Key Features
- Male connector M12, 4-pin, angled, D-coded and male RJ45, 4-pin, straight
- Screw-on connection for M12 and snap-in locking for RJ45 connectors
- Cable length 10 m with 4-wire PUR halogen-free jacket
- Shielded cable with CAT5e transmission characteristics
- IP67 rated at M12 connector and IP20 at RJ45 connector
- Operating temperature range from -40 °C to +85 °C depending on use
- High bending radius suitable for flexible and drag chain use
- Flame retardant cable according to UL 1581 and IEC 60332-1-2 standards
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial Ethernet and PROFINET communication
- Drag chain operation in zones with oils and lubricants
- Automation and control systems requiring shielded Ethernet cables
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces environmental impact in case of fire
- Durable design reduces need for frequent replacements, minimizing waste
Warranty Information
Warranty terms as per SICK standard product warranty policies.
Available Now
The SICK YN2D24-100PN1MRJA4 Ethernet PROFINET Cable is available for immediate purchase, ideal for industrial automation and control system applications requiring reliable Ethernet connectivity.
