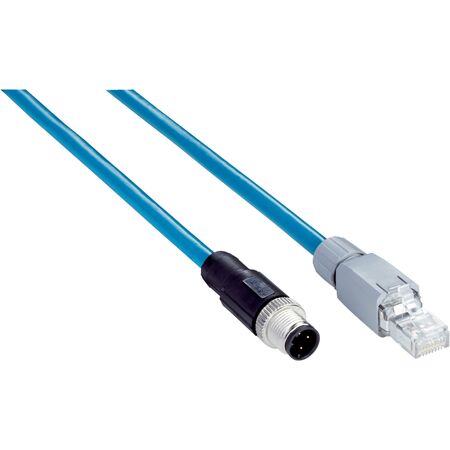

PROFINET Ethernet Cable M12 to RJ45 | Shielded | 2m Length | by SICK
The PROFINET Ethernet Cable M12 to RJ45 is designed for reliable data transmission in industrial automation and control systems. Featuring a shielded design with a PVC jacket, this cable supports Ethernet PROFINET signal types and offers a data transmission rate of up to 100 Mbit/s. Ideal for manufacturing environments, it ensures robust connectivity for your communication networks.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, M12, 4-pin, straight, D-coded
- Connection type head B: Male connector, RJ45, 8-pin, straight
- Locking nut material: Zinc die-cast, nickel-plated
- Cable length: 2 m
- Cable wires: 4-wire, AWG26
- Jacket material: PVC
- Cable diameter: 6.4 mm
- Shielding: Shielded
- Reference voltage: 48 V AC / 60 V DC
- Signal type: Ethernet, PROFINET
- Transmission characteristics: CAT5
- Data transmission rate: ≤ 100 Mbit/s
- Dimensions (H x L x W): 10mm x 2000mm x 10mm
- Weight: 0.1 kg
Key Features
- Male connector M12, 4-pin, straight, D-coded on head A
- Male connector RJ45, 8-pin, straight on head B
- Shielded cable with PVC jacket
- Supports Ethernet PROFINET signal type
- CAT5 transmission characteristics
- Data transmission rate up to 100 Mbit/s
- Locking nut made of zinc die-cast, nickel-plated
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation and control systems
- PROFINET communication networks
- Data transmission in manufacturing environments
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Complies with China-RoHS for reduced hazardous substances.
Warranty Information
Standard manufacturer warranty applies.
Available Now
The SICK YM2D24-020EB2MRJA4 Ethernet PROFINET Cable is available for immediate purchase, ideal for industrial automation and communication network applications.
