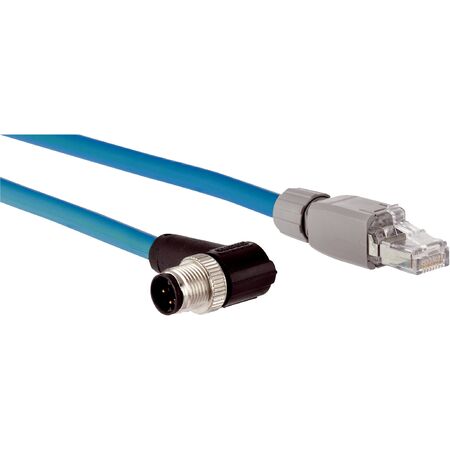

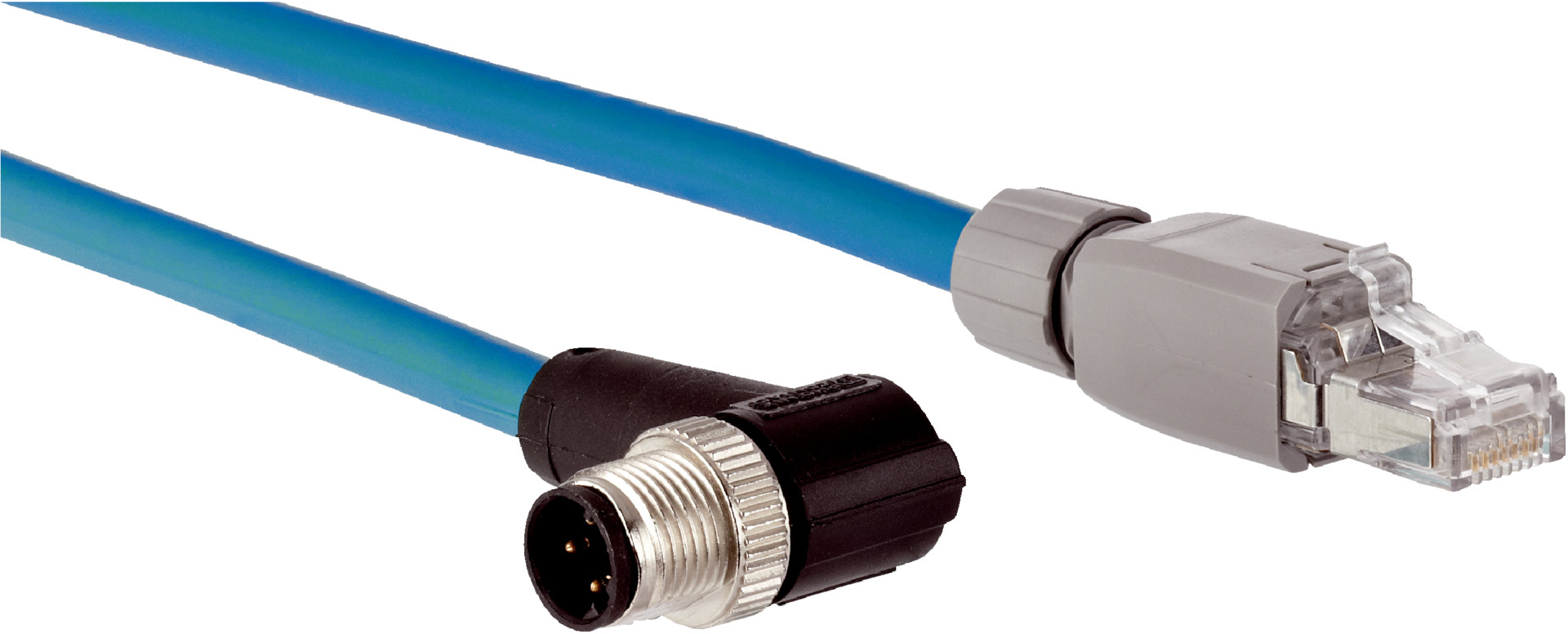

PROFINET Ethernet Cable | M12 to RJ45 | Shielded | 30m Length | by SICK
The PROFINET Ethernet Cable is designed for robust industrial networking, featuring a male RJ45 4-pin straight connector and a male M12 4-pin angled D-coded connector. With a 30-meter length and shielded construction, it ensures reliable connections in automation and control systems, providing high ingress protection ratings of IP65/IP67/IP69K for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, RJ45, 4-pin, straight
- Connection type head B: Male connector, M12, 4-pin, angled, D-coded
- Locking nut material: Zinc die-cast, nickel-plated
- Cable: 30 m, 4-wire, CAT5, CAT5e, PVC
- Jacket material: PVC
- Jacket color: Green (RAL 6018)
- Cable diameter: 6.5 mm
- Conductor cross section: 0.34 mm²
- Shielding: Shielded
- Bending radius flexible use: > 7 x cable diameter
- Operating temperature: -20 °C to +60 °C
- Signal type: Ethernet, PROFINET
- Enclosure rating: IP65/IP67/IP69K (M12), IP20 (RJ45)
- Dimensions (H x L x W): 6.5mm x 30000mm x 6.5mm
- Weight: 0.3 kg
Key Features
- Male RJ45 4-pin straight connector on head A
- Male M12 4-pin angled D-coded connector on head B
- 30 meter length, 4-wire CAT5/CAT5e cable with PVC jacket
- Shielded cable for interference protection
- Zinc die-cast nickel-plated locking nut for durability
- High ingress protection ratings: IP65/IP67/IP69K on M12 connector, IP20 on RJ45
- Flexible bending radius greater than 7 times cable diameter for flexible use
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and compliance with industrial network standards.
Applications
- Industrial Ethernet and PROFINET network connections
- Automation and control systems requiring robust and shielded cabling
- Environments needing IP65/IP67/IP69K rated connectors for protection against dust and water
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable materials and shielding reduce electromagnetic interference, enhancing system reliability and reducing electronic waste.
- Long cable length reduces need for multiple connectors and intermediate devices, minimizing material usage.
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK SSL-2J04-F30MZ Ethernet PROFINET cable is available for immediate purchase, ideal for industrial automation and control system networking applications.
