PROFINET Ethernet Cable | M12 to RJ45 | Shielded CAT5 | 10m Length | IP67 Rated | by SICK
The PROFINET Ethernet Cable is designed for robust industrial communication, featuring a male M12 connector and a straight RJ45 connector. With a 10m length and shielded CAT5 construction, it ensures reliable data transmission up to 100 Mbit/s in harsh environments. Ideal for outdoor applications exposed to oils and lubricants, this cable is built to withstand extreme temperatures and offers IP67 protection at the M12 end.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: PROFINET Ethernet Cable, Industrial Ethernet Cable, M12 to RJ45 Cable, Shielded PROFINET Cable
Technical Specifications
- Connection type head A: Male connector, M12, 4-pin, angled, D-coded
- Connection type head B: Male connector, RJ45, 4-pin, straight
- Connector color: Black
- Locking nut material: Stainless steel (V4A/1.4404)
- Tightening torque: 0.6 Nm
- Cable length: 10 m
- Cable type: 4-wire, CAT5, PUR, halogen-free
- Jacket color: Black
- Cable diameter: 6.7 mm
- Conductor cross section: 2 x 2 x 0.34 mm²
- Shielding: Shielded
- Reference voltage: ≤ 60 V
- Rated impulse voltage: 1 kV
- Signal type: Ethernet, PROFINET
- Transmission characteristics: CAT5
- Data transmission rate: ≤ 100 Mbit/s
- Enclosure rating: IP67 (M12), IP20 (RJ45)
- Operating temperature: Stationary position –40 °C to +80 °C, Head –25 °C to +85 °C
- Dimensions (H x L x W): 10mm x 10000mm x 10mm
- Weight: 0.15 kg
Key Features
- Male connector M12, 4-pin, angled, D-coded on head A
- Male connector RJ45, 4-pin, straight on head B
- Shielded CAT5 cable with 10 m length
- Halogen-free PUR jacket material
- Stainless steel locking nut (V4A/1.4404)
- IP67 rated at M12 connector, IP20 at RJ45 connector
- Operating temperature range: Stationary -40°C to +80°C, Head -25°C to +85°C
- Data transmission rate up to 100 Mbit/s
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial Ethernet cabling and connector standards to ensure proper connection and environmental sealing.
Applications
- Industrial Ethernet and PROFINET communication
- Outdoor zones with exposure to oils and lubricants
- Seawater resistant environments
- Cold bending resistant applications
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Halogen-free cable jacket reduces harmful emissions in case of fire
- Durable materials extend product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

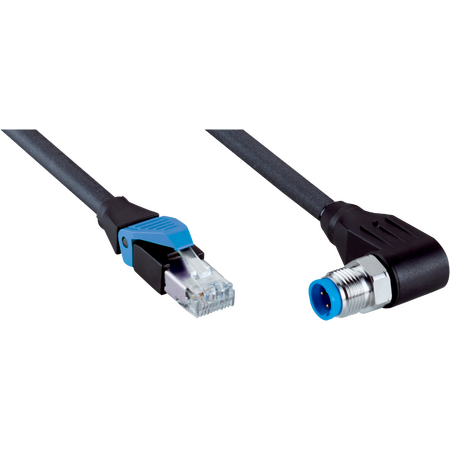

The SICK YN2D34-100PN4MRJA4 Ethernet PROFINET Cable is available for immediate purchase, ideal for industrial communication applications requiring robust and reliable data transmission in harsh environments.
