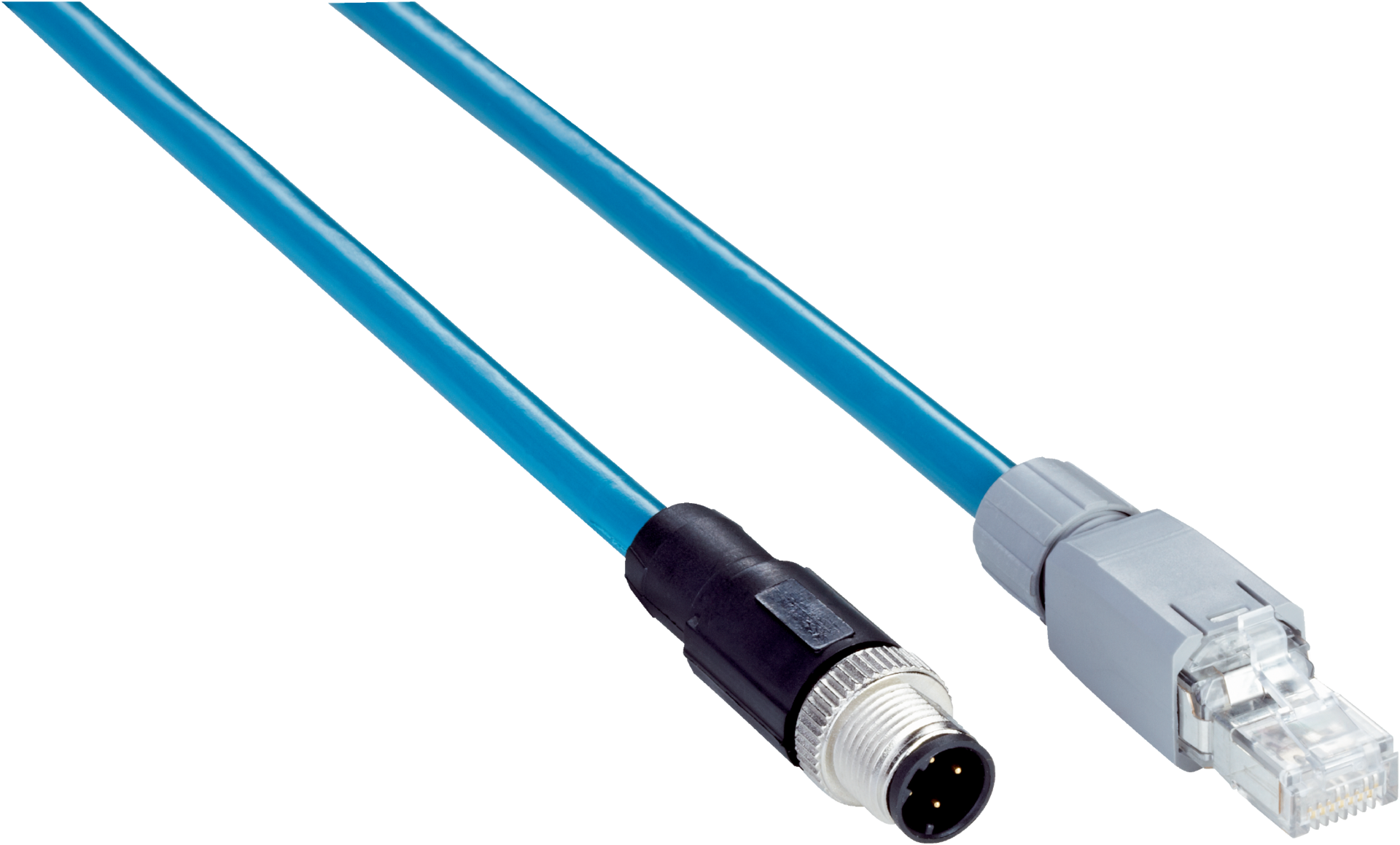

PROFINET Ethernet Cable | M12 to RJ45 | Shielded CAT5 | 10m Length | by SICK

BRAND: SICK
SKU: 6050201
$324.30 List price: $407.60
Free pick up (over 25 kg or over 1 meter)
Contact us for delivery cost
30 Days Return Electricians Unlock Trade Access
The PROFINET Ethernet Cable is designed for industrial automation, featuring a male M12 connector and an RJ45 connector for reliable data transmission. With a 10m length and shielded CAT5 construction, it ensures optimal performance in factory networking and communication systems. Ideal for professionals, this cable meets industrial standards and is perfect for PROFINET Ethernet applications.

Alternatively Known As: PROFINET Ethernet Cable, M12 to RJ45 Cable, Industrial Ethernet Cable

Technical Specifications
  • Connection type head A: Male connector, M12, 4-pin, straight, D-coded
  • Connection type head B: Male connector, RJ45, 8-pin, straight
  • Locking nut material: Zinc die-cast, nickel-plated
  • Cable: 10 m, 4-wire, AWG26, PVC
  • Jacket material: PVC
  • Cable diameter: 6.4 mm
  • Shielding: Shielded
  • Reference voltage: 48 V AC / 60 V DC
  • Signal type: Ethernet, PROFINET
  • Transmission characteristics: CAT5
  • Data transmission rate: ≤ 100 Mbit/s
  • Dimensions (H x L x W): 10mm x 10000mm x 10mm
  • Weight: 0.1 kg
Key Features
  • Male connector, M12, 4-pin, straight, D-coded on head A
  • Male connector, RJ45, 8-pin, straight on head B
  • Shielded CAT5 cable for reliable data transmission
  • 10 m length with 4-wire AWG26 PVC cable
  • Locking nut made of zinc die-cast, nickel-plated
Professional Installation Requirements
  • Installation by qualified personnel is recommended to ensure proper connection and compliance with industrial standards.
Applications
  • Industrial automation and control systems
  • Factory networking and communication
  • PROFINET Ethernet data transmission
Standards & Compliance
  • Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
  • Complies with China RoHS for reduced hazardous substances
Warranty Information

Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.

Available Now

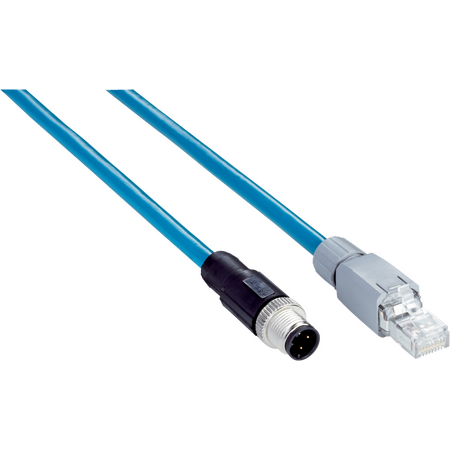

The SICK YM2D24-100EB2MRJA4 Ethernet PROFINET Cable is available for immediate purchase, ideal for industrial automation and networking applications.
