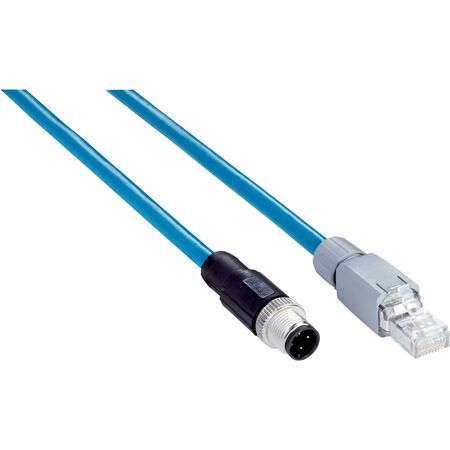

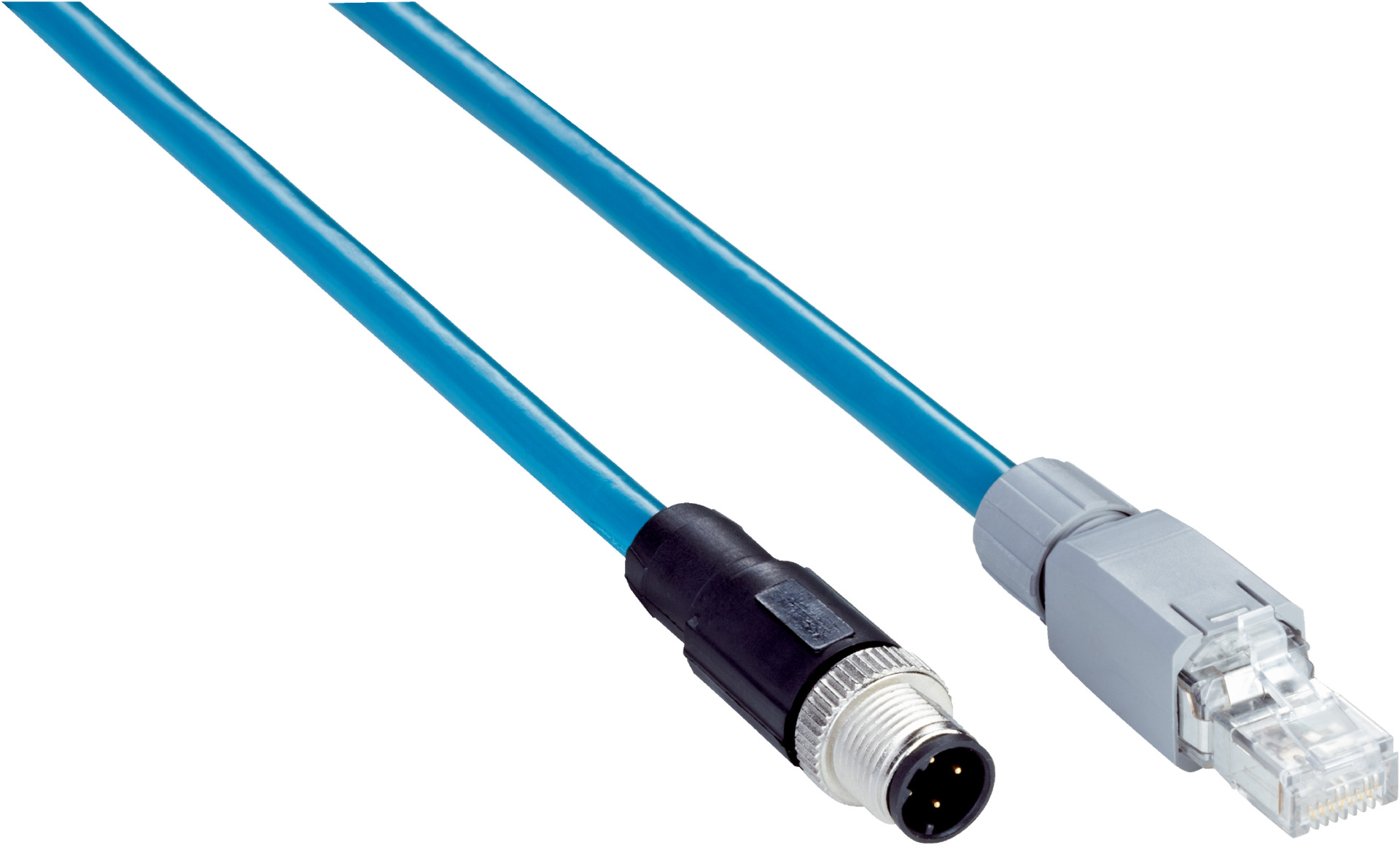

PROFINET Ethernet Cable | M12 to RJ45 | Shielded CAT5 | 10m Length | by SICK
The PROFINET Ethernet Cable is designed for industrial automation, featuring a male M12 connector and an RJ45 connector for reliable data transmission. With a shielded CAT5 design and a length of 10 meters, it supports data rates up to 100 Mbit/s, making it ideal for factory communication networks and control systems. Built with durable materials, this cable ensures long-lasting performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, M12, 4-pin, straight, D-coded
- Connection type head B: Male connector, RJ45, 8-pin, straight
- Locking nut material: Zinc die-cast, nickel-plated
- Cable: 10 m, 4-wire, AWG26, PVC
- Jacket material: PVC
- Cable diameter: 6.4 mm
- Shielding: Shielded
- Reference voltage: 48 V AC / 60 V DC
- Signal type: Ethernet, PROFINET
- Transmission characteristics: CAT5
- Data transmission rate: ≤ 100 Mbit/s
- Dimensions (H x L x W): 6mm x 6400mm x 6400mm
- Weight: 0.2 kg
Key Features
- Male connector, M12, 4-pin, straight, D-coded on head A
- Male connector, RJ45, 8-pin, straight on head B
- Shielded CAT5 cable for reliable data transmission
- Supports data transmission rates up to 100 Mbit/s
- Durable zinc die-cast, nickel-plated locking nut
- 10 m length, 4-wire, AWG26 PVC cable with 6.4 mm diameter
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation and control systems
- Factory Ethernet and PROFINET communication networks
- Data transmission in manufacturing environments
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Complies with China-RoHS for reduced hazardous substances
- Durable materials reduce need for frequent replacements
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK YM2D24-100EB2MRJA4 Ethernet PROFINET Cable is available for immediate purchase, ideal for industrial automation and factory communication networks.
