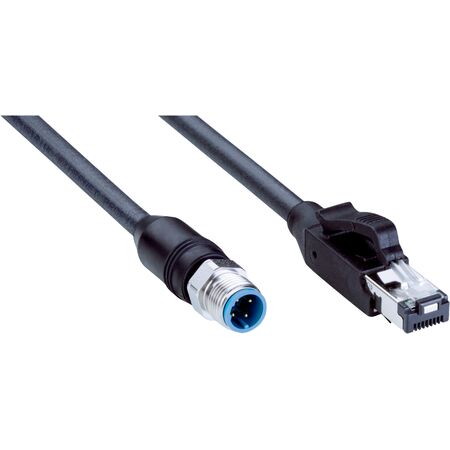

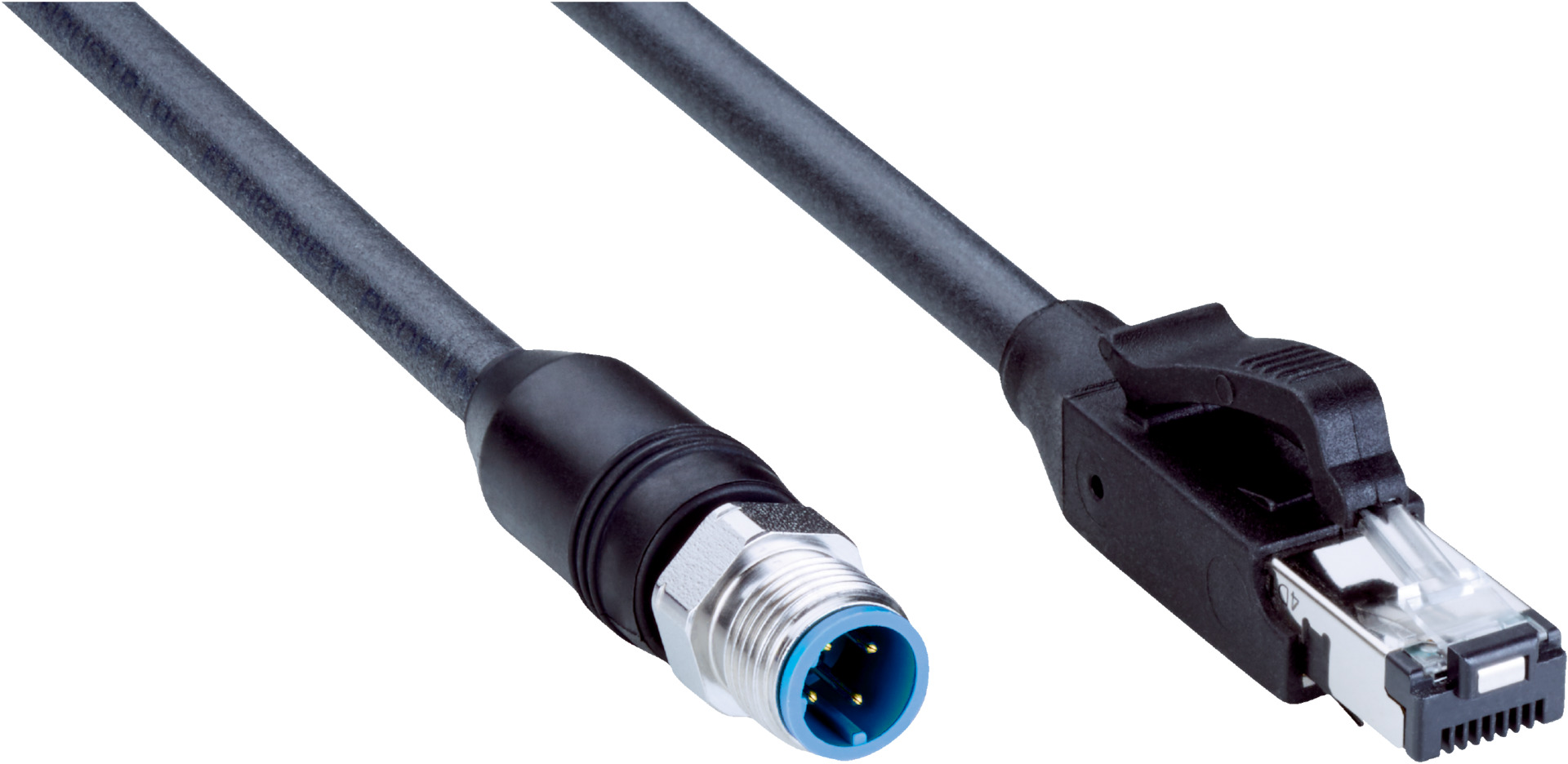

PROFINET Ethernet Cable | M12 to RJ45 | Shielded CAT5 | 20m Length | IP67 Rated | by SICK
The PROFINET Ethernet Cable is designed for robust industrial applications, featuring a male M12 connector and RJ45 connector for reliable data transmission. With a 20m length and shielded CAT5 construction, it’s perfect for outdoor environments exposed to oils and lubricants, ensuring durability and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, M12, 4-pin, straight, D-coded
- Connection type head B: Male connector, RJ45, 4-pin, straight
- Cable length: 20 m
- Cable type: 4-wire, CAT5, CAT5e, PUR, halogen-free
- Cable diameter: 6.7 mm
- Conductor cross section: 2 x 2 x 0.34 mm²
- Shielding: Shielded
- Rated impulse voltage: 1 kV
- Data transmission rate: ≤ 100 Mbit/s
- Enclosure rating: IP67 (M12), IP20 (RJ45)
- Operating temperature: Stationary -40°C to +80°C, Head -25°C to +85°C
- Locking nut material: Stainless steel (V4A/1.4404)
- Tightening torque: 0.6 Nm
- Dimensions (H x L x W): 10mm x 20000mm x 10mm
- Weight: 0.3 kg
Key Features
- Male connector M12, 4-pin, straight, D-coded on head A
- Male connector RJ45, 4-pin, straight on head B
- Shielded CAT5 cable with 20 m length
- Cable jacket made of halogen-free PUR material
- IP67 rated enclosure on M12 connector, IP20 on RJ45 connector
- Operating temperature range: Stationary -40°C to +80°C, Head -25°C to +85°C
- Locking nut made of stainless steel (V4A/1.4404)
- Tightening torque 0.6 Nm
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial Ethernet and PROFINET data transmission
- Outdoor zones with exposure to oils and lubricants
- Seawater resistant environments
- Cold bending resistant applications
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Halogen-free PUR jacket reduces environmental impact during disposal
- Durable materials extend product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK YM2D34-200PN4MRJA4 Ethernet PROFINET Cable is available for immediate purchase, ideal for industrial and outdoor Ethernet communication applications.
