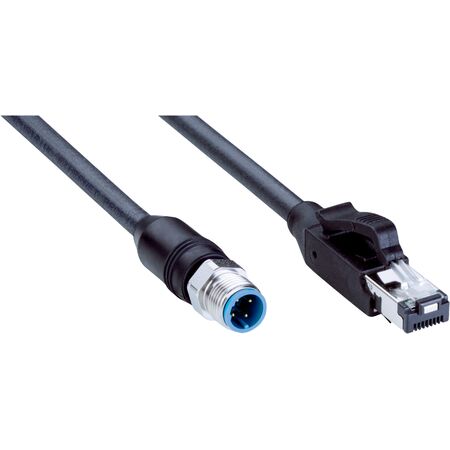

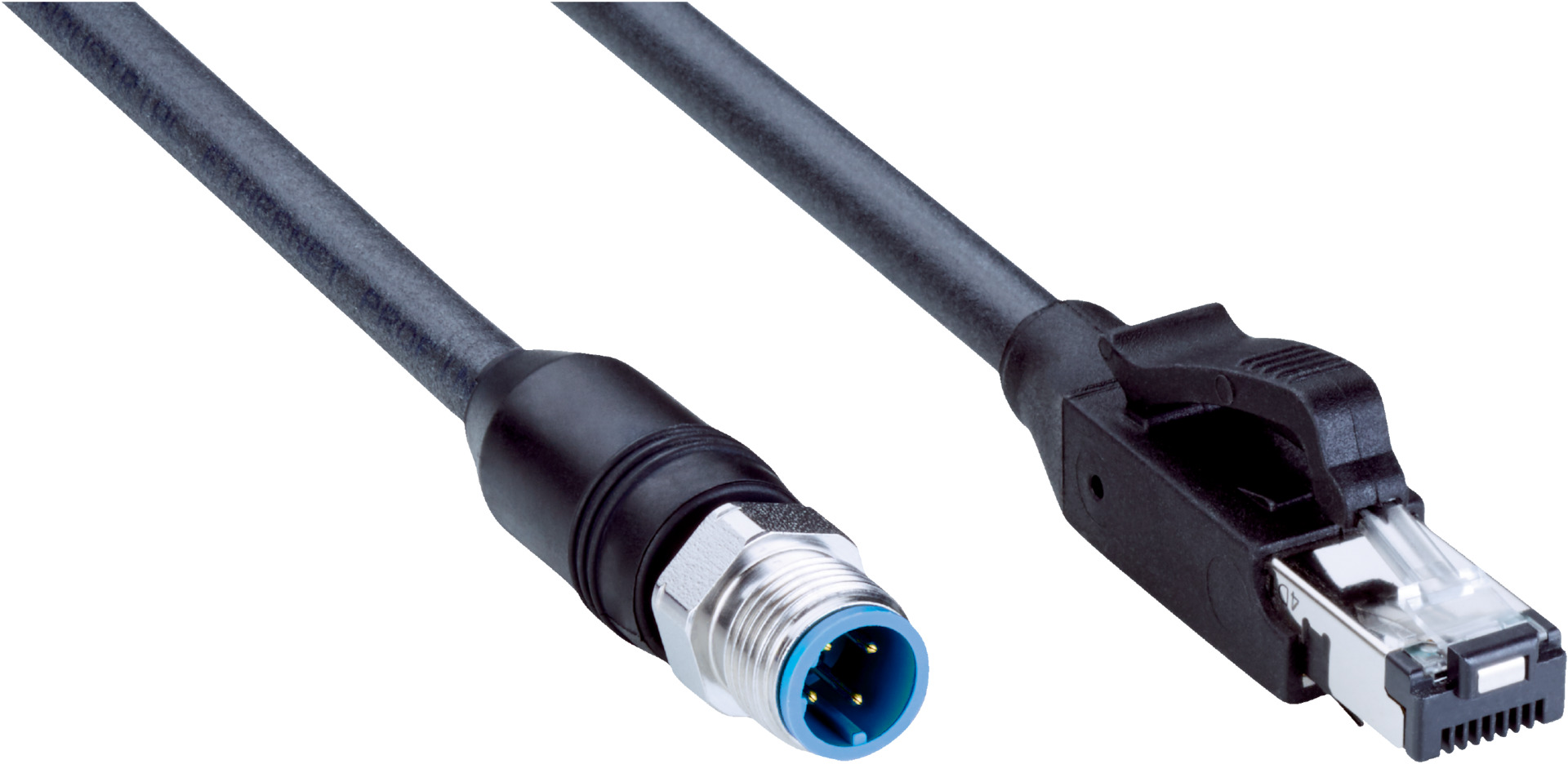

PROFINET Ethernet Cable | M12 to RJ45 | Shielded CAT5 | IP67 Rated | by SICK
The PROFINET Ethernet Cable is designed for robust industrial applications, featuring a male M12 4-pin connector and a male RJ45 connector. With a shielded CAT5 design, it supports data transmission rates up to 100 Mbit/s and is ideal for outdoor environments exposed to oils and seawater. Built to withstand extreme temperatures from -40°C to +80°C, this cable ensures reliable connectivity in demanding conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, M12, 4-pin, straight, D-coded
- Connection type head B: Male connector, RJ45, 4-pin, straight
- Connector color: Black
- Locking nut material: Stainless steel (V4A/1.4404)
- Tightening torque: 0.6 Nm
- Cable length: 5 m
- Cable type: 4-wire, CAT5, CAT5e, PUR, halogen-free
- Jacket color: Black
- Cable diameter: 6.7 mm
- Conductor cross section: 2 x 2 x 0.34 mm²
- Shielding: Shielded
- Reference voltage: ≤ 60 V
- Rated impulse voltage: 1 kV
- Signal type: Ethernet, PROFINET
- Transmission characteristics: CAT5
- Data transmission rate: ≤ 100 Mbit/s
- Enclosure rating: IP67 (M12), IP20 (RJ45)
- Operating temperature: Stationary -40 °C to +80 °C, Head -25 °C to +85 °C
- Dimensions (H x L x W): 10mm x 5000mm x 10mm
- Weight: 0.15 kg
Key Features
- Male M12 4-pin straight D-coded connector on head A
- Male RJ45 4-pin straight connector on head B
- Shielded CAT5 cable with data transmission rate up to 100 Mbit/s
- Cable jacket made of halogen-free PUR material
- IP67 rated enclosure on M12 connector, IP20 on RJ45 connector
- Operating temperature range: Stationary -40°C to +80°C, Head -25°C to +85°C
- Locking nut made of stainless steel (V4A/1.4404) with 0.6 Nm tightening torque
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial Ethernet and PROFINET data transmission
- Outdoor zones with exposure to oils, lubricants, and seawater
- Cold bending resistant applications requiring robust cabling
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Halogen-free PUR jacket reduces harmful emissions in case of fire
- Durable materials extend product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YM2D34-050PN4MRJA4 Ethernet PROFINET Cable is available for immediate purchase, ideal for industrial and outdoor Ethernet communication applications.
