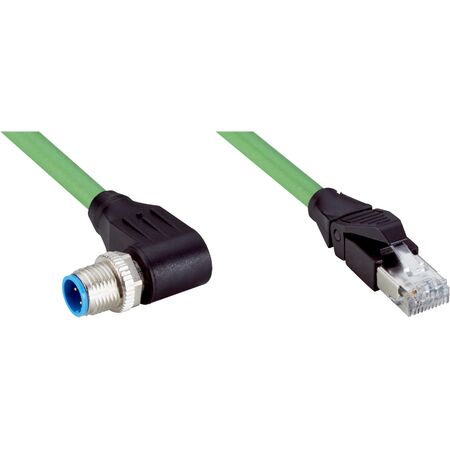

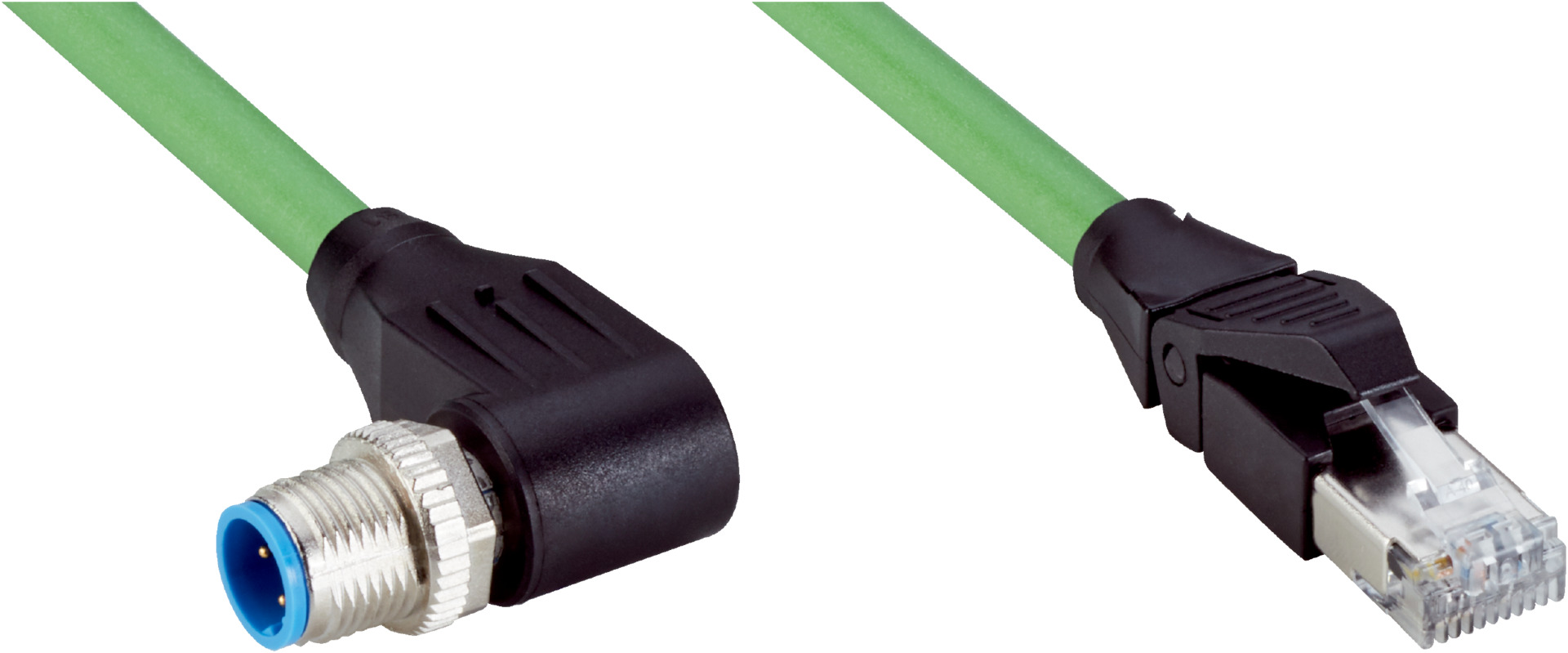

PROFINET Ethernet Cable | M12 to RJ45 | Shielded & Halogen-Free | 2m Length | by SICK
The PROFINET Ethernet Cable is designed for robust industrial automation, featuring a male M12 connector and a straight RJ45 connector. With a 2m length and halogen-free jacket, this cable is perfect for drag chain operations and environments with oils and lubricants. Its IP67 rated M12 connector ensures reliable performance in harsh conditions, while the flame retardant materials enhance safety and longevity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 10mm x 2000mm x 13mm
- Weight: 0.1 kg
Key Features
- Male connector M12, 4-pin, angled, D-coded and male connector RJ45, 4-pin, straight
- Screw-on connection (M12) and snap-in locking (RJ45)
- Cable is 2 m long, 4-wire, PUR, halogen-free with green jacket
- Shielded cable with 0.34 mm² conductor cross section
- High bending radius suitable for flexible use, stationary position, and drag chain operation
- Operating temperature range from -40 °C to +85 °C depending on use
- IP67 rated enclosure for M12 connector and IP20 for RJ45 connector
- Supports Ethernet PROFINET signal type with CAT5e transmission characteristics
- Data transmission rate up to 0.1 Gbit/s
- Flame retardant cable according to UL 1581 and IEC 60332-1-2 standards
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper connection and compliance with safety standards.
Applications
- Drag chain operation in industrial automation
- Zones with oils and lubricants requiring robust Ethernet connections
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free cable jacket reduces harmful emissions in case of fire
- Durable and flame retardant materials increase product lifespan and safety
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK YN2D24-020PN1MRJA4 Ethernet PROFINET Cable is available for immediate purchase, ideal for industrial automation and harsh environment applications.
