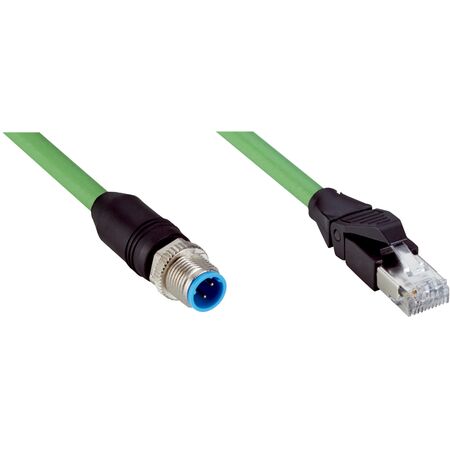

PROFINET Ethernet Cable M12 to RJ45 | Shielded & Halogen-Free | IP67 Rated | by SICK
The PROFINET Ethernet Cable M12 to RJ45 is designed for robust industrial Ethernet communication, featuring a shielded, halogen-free PUR jacket for enhanced durability. With an IP67 rating for the M12 connector and a flexible design suitable for drag chain operations, this cable ensures reliable data transmission in automated systems, making it ideal for environments with oils and lubricants.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, M12, 4-pin, straight, D-coded
- Connection type head B: Male connector, RJ45, 4-pin, straight
- Locking plug connector: Screw-on (M12), snap-in locking (RJ45)
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Cable length: 10 m
- Cable type: 4-wire, PUR, halogen-free
- Cable diameter: 6.7 mm
- Conductor cross section: 0.34 mm²
- Shielding: Shielded
- Bending radius: Flexible use > 12 x cable diameter, Stationary > 5 x cable diameter, Drag chain > 12 x cable diameter
- Operating temperature: Flexible use -30°C to +70°C, Stationary -40°C to +80°C, Drag chain -30°C to +70°C, Head -25°C to +85°C
- Nominal voltage: 300 V AC
- Test voltage: 2000 V AC
- Rated impulse voltage: 1 kV
- Current loading: 1.5 A
- Traversing speed: 3.3 m/s
- Travelling distance: 5 m
- Acceleration: ≤ 2 m/s²
- Signal type: Ethernet, PROFINET
- Transmission characteristics: CAT5e
- Data transmission rate: ≤ 0.1 Gbit/s
- Enclosure rating: IP67 (M12), IP20 (RJ45)
- Contamination rating: 3
- Insulation resistance: > 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant acc. to UL 1581 Section 1090, Section 1100 (FT2), IEC 60332-1-2
- Dimensions (H x L x W): 6.7mm x 10000mm x 13mm
- Weight: 0.2 kg
Key Features
- Male connector M12, 4-pin, straight, D-coded
- Male connector RJ45, 4-pin, straight
- Screw-on connection (M12) and snap-in locking (RJ45)
- Shielded cable with PUR halogen-free jacket
- High bending radius suitable for flexible and drag chain use
- Operating temperature range from -40°C to +85°C depending on position
- IP67 rated enclosure for M12 connector, IP20 for RJ45
- Supports Ethernet PROFINET with CAT5e transmission characteristics
- Data transmission rate up to 0.1 Gbit/s
- Flame retardant cable according to UL 1581 and IEC 60332-1-2 standards
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial Ethernet cabling and electrical safety standards.
Applications
- Industrial Ethernet communication
- Drag chain operation in zones with oils and lubricants
- PROFINET data transmission in automated systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces environmental impact during disposal
- Flame retardant materials enhance safety and reduce fire hazards
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK YM2D24-100PN1MRJA4 Ethernet PROFINET Cable is available for immediate purchase, ideal for industrial automation and drag chain applications.
