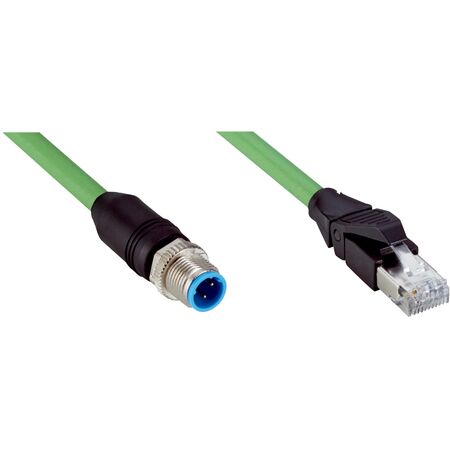

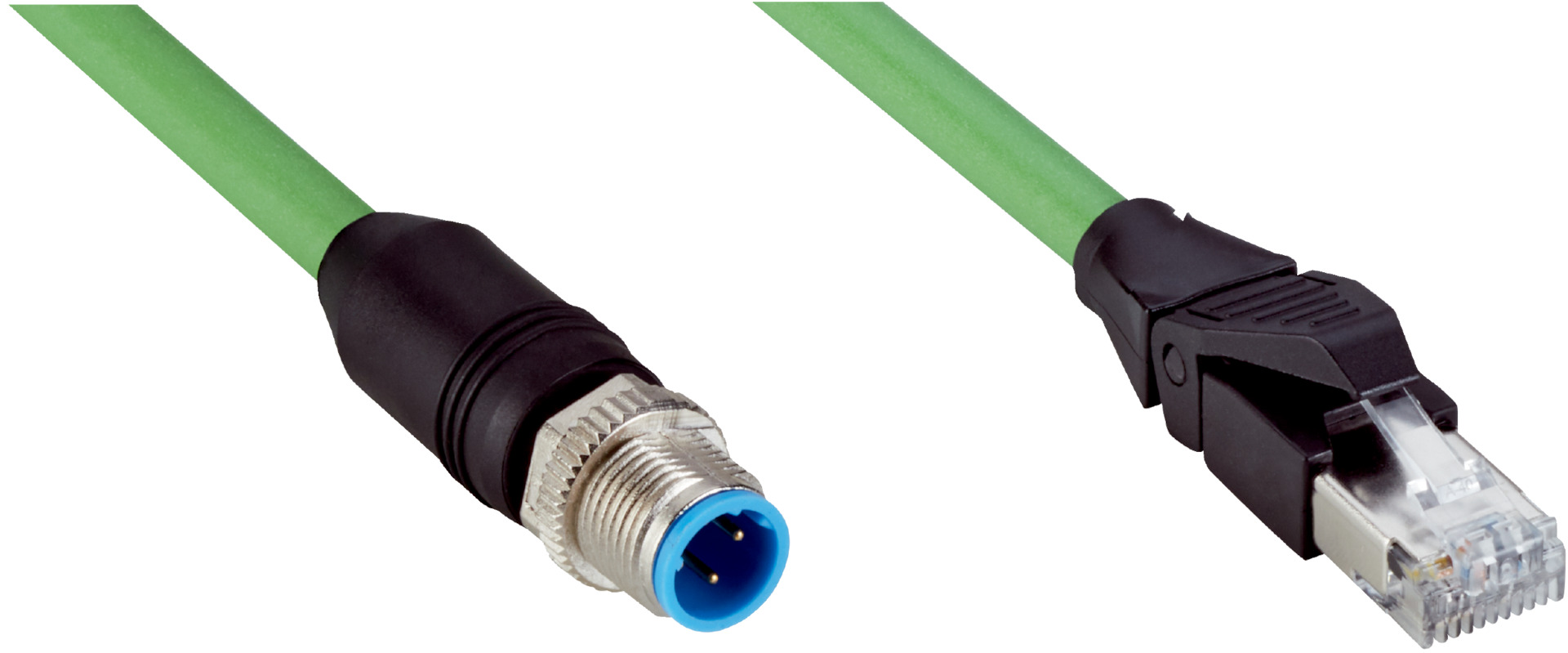

PROFINET Ethernet Cable M12 to RJ45 | Shielded PUR | IP67 Rated | 3m Length | by SICK
The PROFINET Ethernet Cable M12 to RJ45 is designed for robust industrial Ethernet communication, featuring a shielded PUR construction and IP67 rating for dust and water protection. With a 3m length and high bending radius, it's perfect for flexible and drag chain applications in automated systems, ensuring reliable data transmission even in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 13mm x 3000mm x 13mm
- Weight: 0.15 kg
Key Features
- Male connector M12, 4-pin, straight, D-coded
- Male connector RJ45, 4-pin, straight
- Screw-on connection (M12) and snap-in locking (RJ45)
- Shielded PUR halogen-free cable, 3 m length
- High bending radius suitable for flexible and drag chain use
- Operating temperature range from -40 °C to +85 °C
- IP67 rated at M12 connector for dust and water protection
- Supports Ethernet PROFINET with CAT5e transmission characteristics
- Rated for 300 V AC nominal voltage and 1.5 A current loading
- Flame retardant cable according to UL 1581 and IEC 60332-1-2 standards
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial Ethernet communication
- Drag chain operation in zones with oils and lubricants
- PROFINET data transmission in automated systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free cable reduces toxic emissions in case of fire
- Durable and flame retardant materials enhance safety and longevity
- Shielded cable minimizes electromagnetic interference, improving system efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK official warranty terms.
Available Now
The SICK YM2D24-030PN1MRJA4 Ethernet PROFINET Cable is available for immediate purchase, ideal for industrial automation and communication applications.
